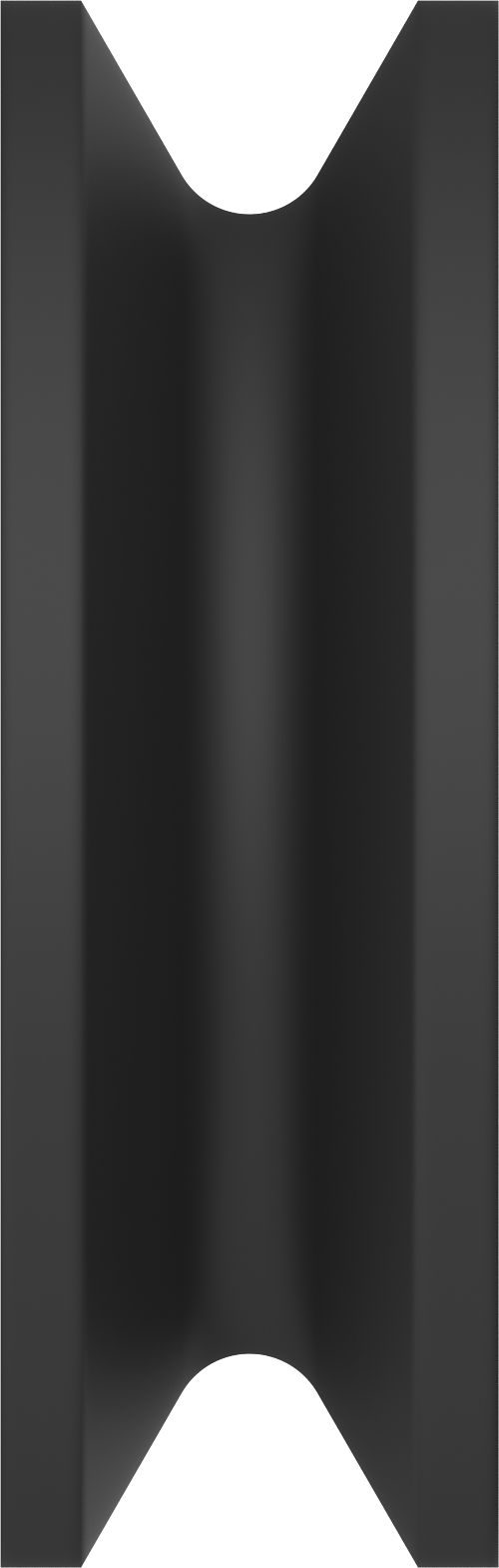

Pulley iglidur JB | Wear-resistant and resistant to shocks and impacts
- For rope widths: 1, 1.5 and 3 mm
- Optimized rope pulley geometry
- 4 times longer service life compared to POM rope pulleys
Part No.
Ø d2 [mm]
Ø d3 [mm]
Ø d1 [mm]
b1 overall length [mm]

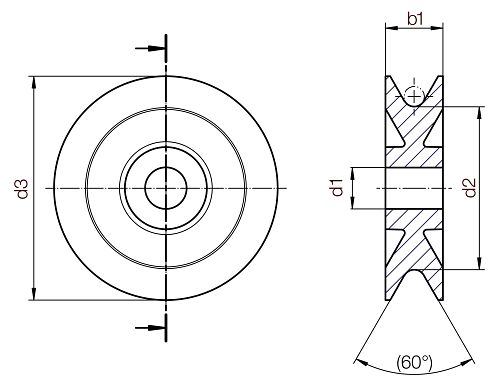

Dimensions
Fold
Ø d1 [mm]
3 Fold
Ø d2 [mm]
8 Fold
Ø d3 [mm]
11 Fold
b1 overall length [mm]
3.5 Fold
General properties
Fold
Density [g/cm³]
1.49 Fold
Colour
black Fold
Max. moisture absorption [Wt.- %]
0.3 Fold
Max. total moisture absorption [Wt.- %]
1.3 Fold
Mechanical properties
Fold
Max. recommended surface pressure [MPa]
35 Fold
Shore D hardness
74 Fold
Physical properties
Fold
Max. short-term application temperature [°C]
120 Fold
Max. long-term application temperature [°C]
90 Fold
Lower application temperature [°C]
-50 Fold
Requirements
Fold
RoHS 2 compliant according to EU guideline 2011/65/EU
