dryspin® flange lead screw nut, high helix thread, A180FLM
- Material: iglide® A180
- Thread direction: Left-hand thread
- Thread type: High helix thread dryspin®
- Design: Standard
- Cylindrical lead screw nut with flange
Part No.
Ø d2 [mm]
Ø d3 [mm]
b1 [mm]
Thread size

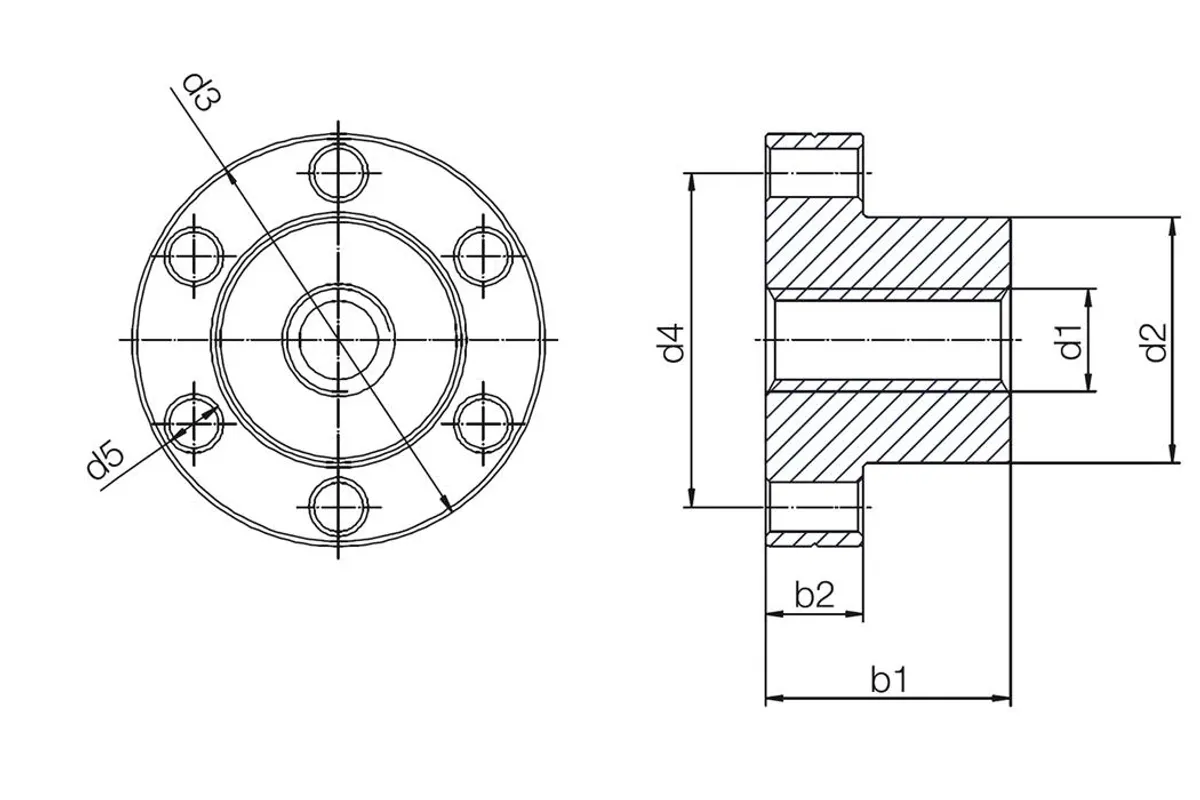

Dimensions
Fold
Thread size
DS6.35X2.54 Fold
Ø d1 [mm]
6.35 Fold
Ø d2 [mm]
13 Fold
Ø d3 [mm]
25 Fold
Ø d4 [mm]
19 Fold
Ø d5 [mm]
3.2 Fold
b1 [mm]
15 Fold
b2 [mm]
5 Fold
General properties
Fold
Thread direction
Left-hand thread Fold
Thread type
High helix thread dryspin; highest efficiency Fold
With spanner flat
Weight [g]
19.55 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
