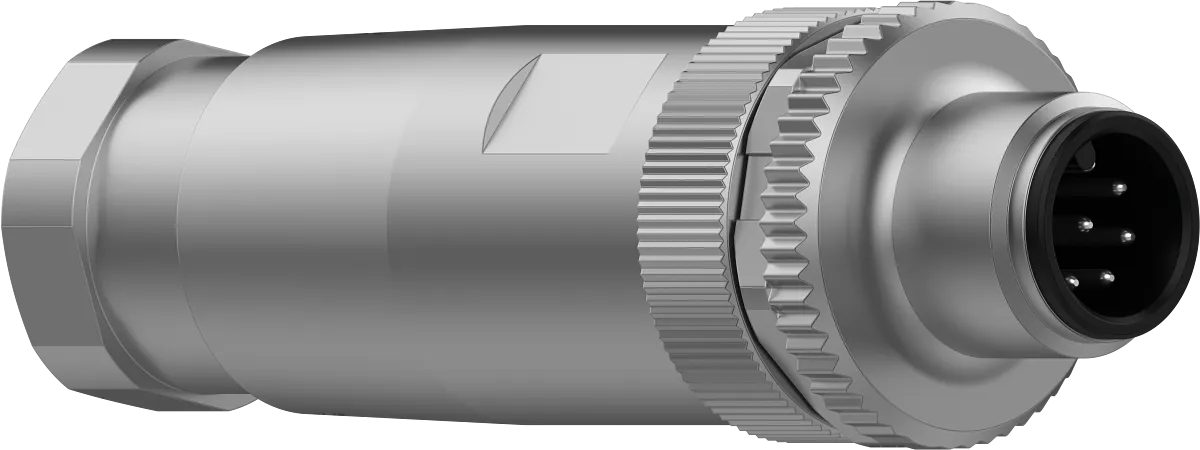

Binder M12-A cable connector, 6.0-8.0mm, unshielded, 99 0487 12 08, 99 0429 12 04, 99 0437 12 05, screw clamp, IP67, UL
- M12-A cable connector, unshielded, 6mm to 8mm, screw clamp.
- Robust IP67 seal.
- UL-compliant.
- Fast installation.
- A-coded for a wide range of industrial applications.
Part No.
Number of poles
General properties
Fold
Manufacturer Part No
99 0487 12 08 Fold
Insulation class
III Fold
Contacts
CuZn (brass) Fold
Weight [g]
25.7 Fold
Dynamic information
Fold
Clamping range
6.0-8.0mm Fold
Electrical properties
Fold
Contact resistance
≤ 3mΩ Fold
Insertion cycles
> 100 Fold
Protection class
IP67 Fold
Overvoltage category
II Fold
Plug
Fold
Connector design
Straight pin plug-in connector Fold
Number of poles
8 pin Fold
Connection cross-section [mm]
max. 0.50mm² Fold
Connection cross-section [AWG]
max.
AWG 20 Fold
EMC compliance
unshielded Fold
UL or UL-listed
UL Fold
Rated current (40°C)
1.5 A (2 A UL) Fold
Rated voltage [V]
30 Fold
Contact surface
Au (Gold) Fold
Contact body material
PA Fold
Locking
M12 Fold
