drylin W WSX double rail
Part No.
size
Selection Info
L[mm]
1000Default cutting error is ±0.3mm, contact us for special needs The following categories are related to this product

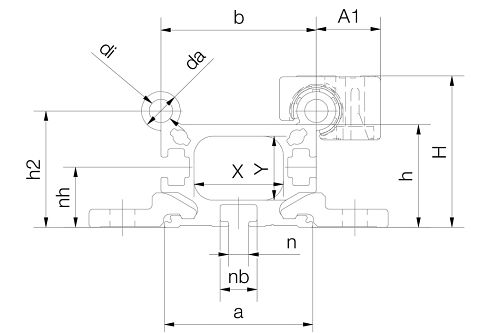

Dimensions
Fold
H [mm]
39 Fold
da [mm]
10 Fold
a [mm]
38.2 Fold
b [mm]
40 Fold
h [mm]
26.5 Fold
h2 [mm]
30 Fold
G1 [mm]
30 Fold
A1 [mm]
16.5 Fold
k1 thread
M6 Fold
Weight [g]
1300 Fold
Inner diameter di [mm]
6 Fold
s [mm]
60 Fold
nh [mm]
15.5 Fold
n [mm]
5.2 Fold
nb [mm]
9.5 Fold
T
M5 Fold
X [mm]
23 Fold
Y [mm]
16 Fold
Production and installation tolerances
Fold
H-tolerance
±0,02 mm Fold
da-tolerance
-0,1 mm Fold
General properties
Fold
size
10-40 Fold
Rail profile
Round Fold
Design
curved double rail Fold
Material
Aluminum, hard anodized Fold
Mechanical properties
Fold
Geometrical moment of inertia ly [mm4]
97560 Fold
Geometrical moment of inertia lz [mm4]
54910 Fold
Moment of resistance Wby [mm3]
3902 Fold
Moment of resistance Wbz [mm3]
3074 Fold
Max. length [mm]
4000 Fold
