igubal® PFL Flange Bearing

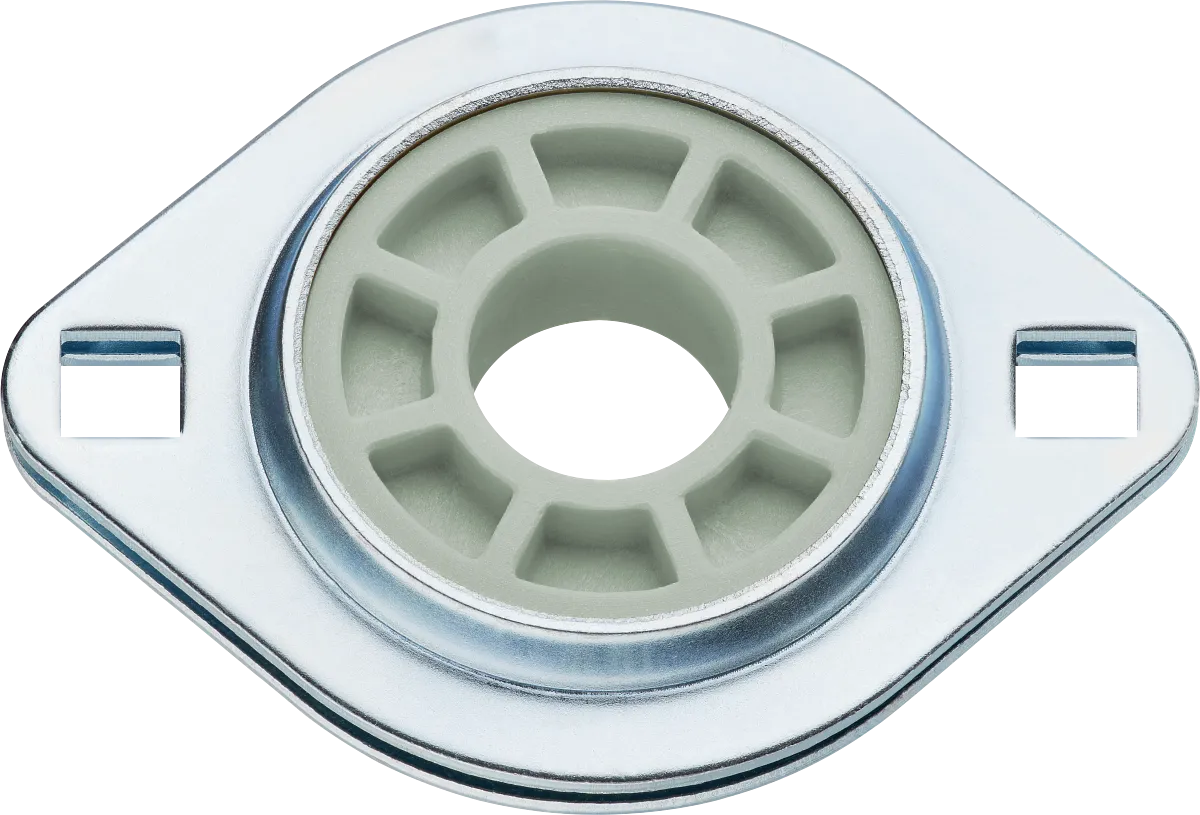

Picture 01
Picture 01

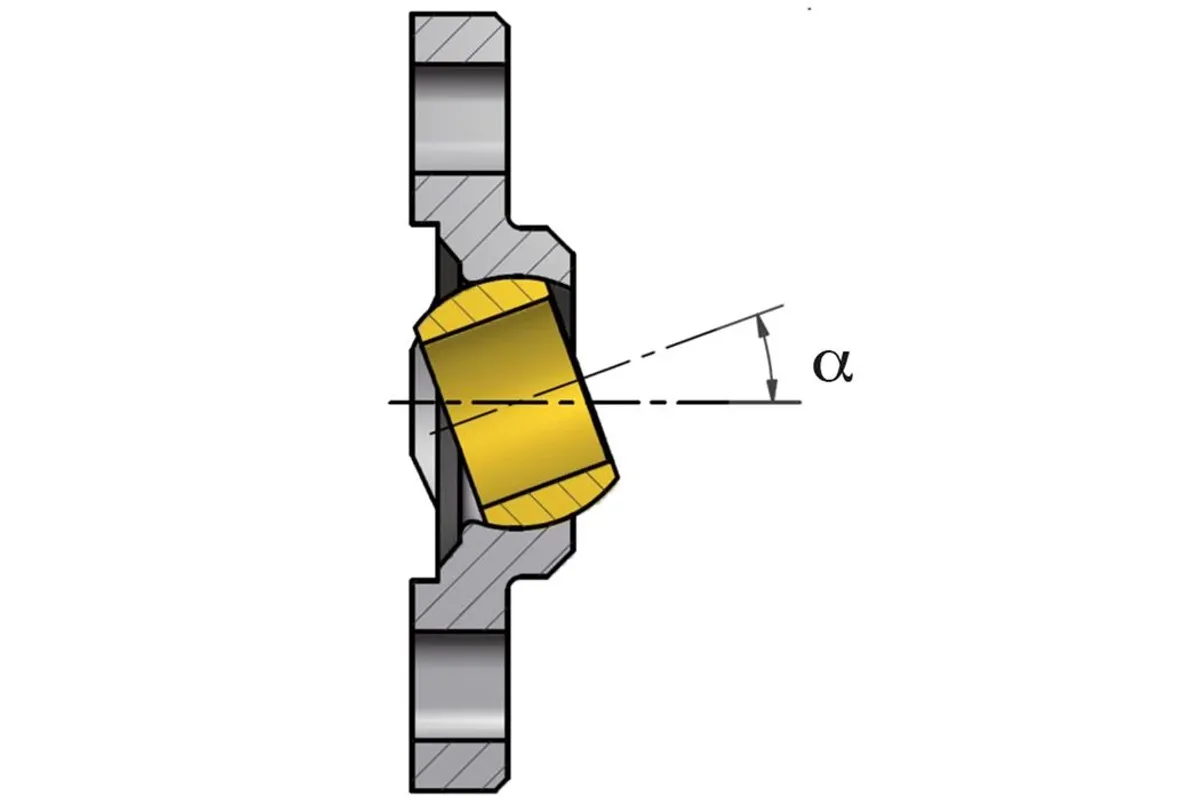

Picture 02
Drawing 01
Drawing 02
  • PFL204 up to PFL206
  • Free from lubrication and maintenance
  • Resistant to dirt
Part No.
Shaft diameter [mm]
Material spherical ball/insert
Dimensions
Fold
91262db6-f7af-4487-b5a3-a906809b15d9-origin-Zg_igubal_PFL204-JEM-20-14-SP
213c9c59-d036-4567-b1af-8457f61c5bc6-origin-IGU_INFO_directions-load_flange-bearings_EN_1
Shaft diameter [mm]
15 Unfold Fold
L [m]
59 Unfold Fold
m [mm]
63.5 Unfold Fold
A1 [mm]
4 Unfold Fold
Ag [m]
14 Unfold Fold
h [mm]
81 Unfold Fold
Production and installation tolerances
Fold
Installation tolerance d1
E10 Unfold Fold
Recommended shaft tolerance
h9 Unfold Fold
Recommended shaft roughness
0.1-0.3 μm Unfold Fold
General properties
Fold
Material spherical ball/insert
iglidur® J4 Unfold Fold
Weight [g]
84.364 Unfold Fold
