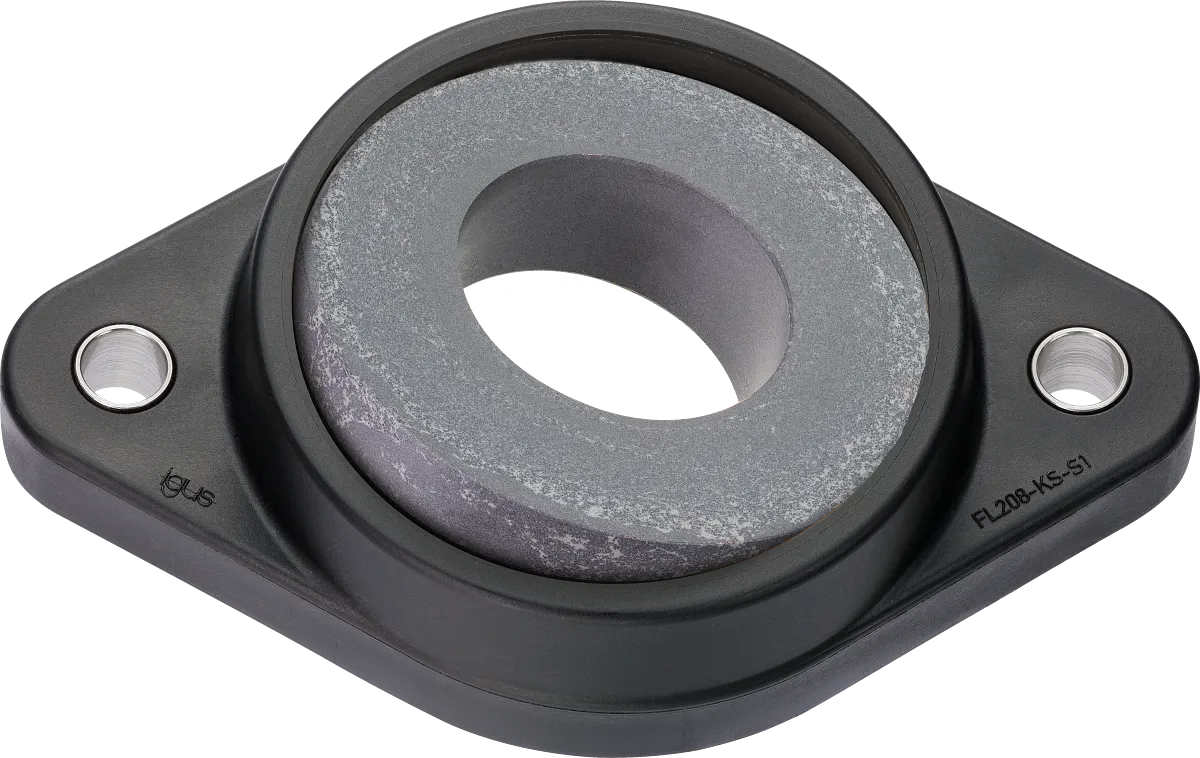

igubal® Compact 2-hole flange bearing with bearing insert
- Identical dimensions to common flange bearings, e.g. in the beverage filling and packaging industry
- Plastic alternative to UCFL208
- Bore spacing: 117 mm
- Housing material: igumid G
- Lubrication- and maintenance-free
- Lighter than comparable metal versions
- Self-aligning
- Resistant to dirt
- Mounting holes reinforced with stainless steel sleeves
Hier finden Sie mehr Informationen zu unseren Lagereinsätzen!
Part No.
Shaft diameter [mm]
Spherical ball material
Manufacturing processes spherical ball
Dimensions
Fold
Shaft diameter [mm]
30 Fold
Ø d2 [mm]
10 Fold
L [mm]
93 Fold
m [mm]
117 Fold
b4 [mm]
21 Fold
h1 [mm]
14 Fold
h2 [mm]
30.5 Fold
R [mm]
15 Fold
h [mm]
147 Fold
Production and installation tolerances
Fold
Recommended shaft tolerance
h9 Fold
General properties
Fold
Housing material
igumid G Fold
Spherical ball material
iglidur® H3 Fold
Max. pivot angle (α) [°]
27 Fold
Weight [g]
218.31 Fold
Mechanical properties
Fold
Max. axial static load, short-term [N]
2200 Fold
Max. axial static load, long-term [N]
1100 Fold
Max. radial static pressure load, short-term [N]
9000 Fold
Max. radial static pressure load, long-term [N]
4500 Fold
Max. tightening torque bore [Nm]
100 Fold
Max. pivot angle (α) [°]
27 Fold
Max. pivot angle with adjusting ring [°]
27 Fold
