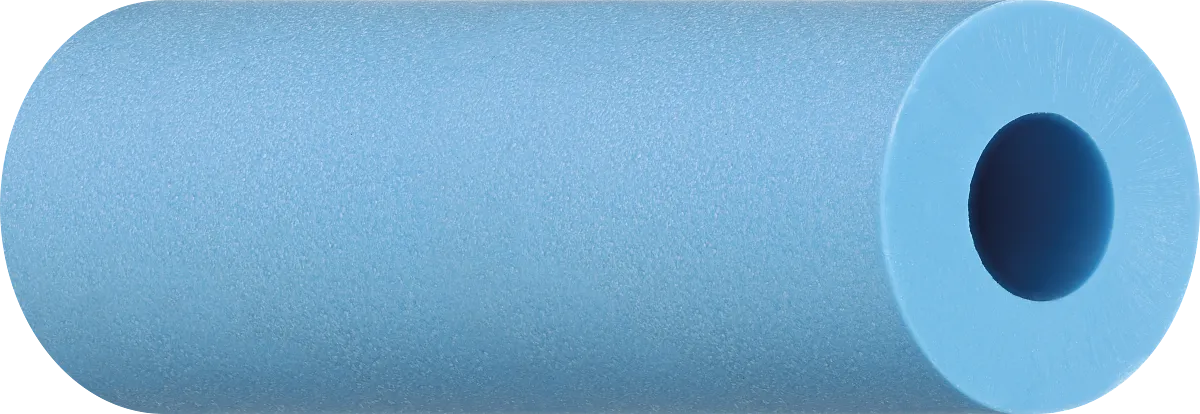

Knife edge roller iglidur A181 | Universal material for food contact
- Shaft diameter: 4-10 mm
- Length: 50 and 70 mm
- Improved in terms of wear resistance compared to iglidur A180
- FDA-compliant and EU 10/2011-compliant
- Optical detectability
Part No.
Ø d1 [mm]
Ø d2 [mm]
Dimensions
Fold
Ø d1 [mm]
4.1 Fold
Ø d2 [mm]
9 Fold
b1 [mm]
50 Fold
Shaft diameter [mm]
4 Fold
Production and installation tolerances
Fold
d2 tolerance
±0,1 mm Fold
b1 tolerance
-0,3 mm Fold
General properties
Fold
Density [g/cm³]
1.38 Fold
Colour
blue Fold
Max. moisture absorption [Wt.- %]
0.2 Fold
Max. total moisture absorption [Wt.- %]
1.3 Fold
Mechanical properties
Fold
Max. recommended surface pressure [MPa]
31 Fold
Shore D hardness
76 Fold
Physical properties
Fold
Max. short-term application temperature [°C]
110 Fold
Max. long-term application temperature [°C]
90 Fold
Lower application temperature [°C]
-50 Fold
Electrical properties
Fold
Surface resistance
>1012 Ω
Requirements
Fold
RoHS 2 compliant according to EU guideline 2011/65/EU
FDA compliant
