iglidur® J guide ring
- Excellent wear resistance at room temperature
- Good wear resistance at medium temperatures
- Excellent coefficient of friction
- Low humidity absorption
- High media resistance
- Resistant to edge pressure
- Resistant to shocks and impacts
- Resistant to dirt and dust
- Mould-resistant according to DIN EN ISO 846
Part No.
Shaft diameter [mm]
Ø d2 [mm]
b1 [mm]

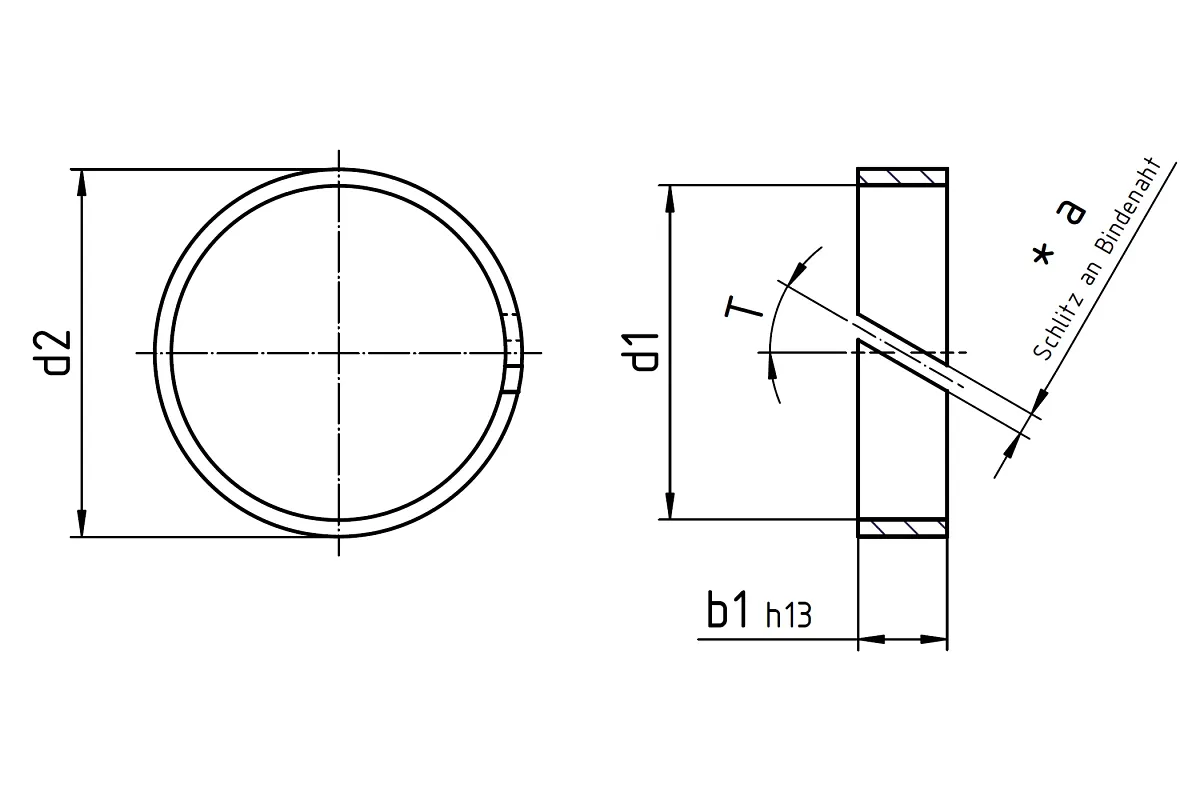

Dimensions
Fold
Shaft diameter [mm]
6 Fold
Ø d2 [mm]
8 Fold
b1 [mm]
6 Fold
b2 slot width [mm]
1 Fold
Slotted bevel [°]
20 Fold

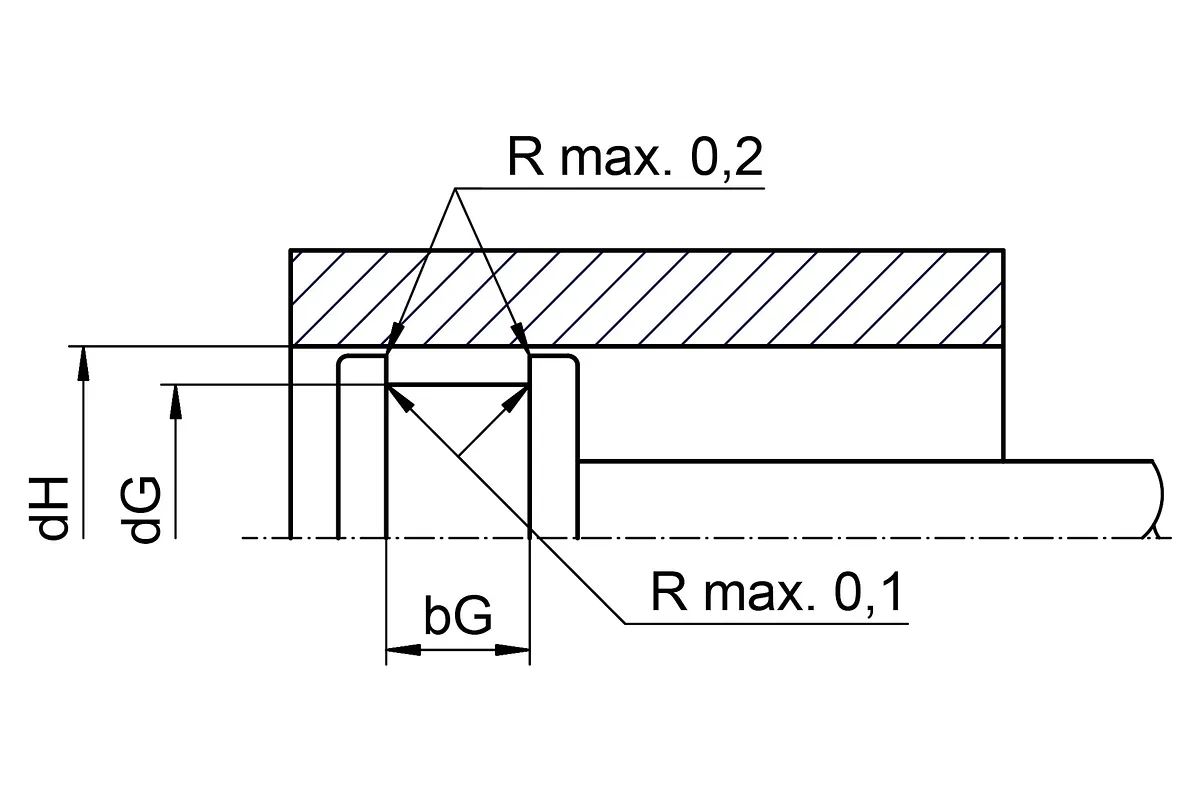

Production and installation tolerances
Fold
b1 tolerance
h13 Fold
b2 tolerance
±0,5 mm Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
90 Fold
Lower application temperature [°C]
-50 Fold
