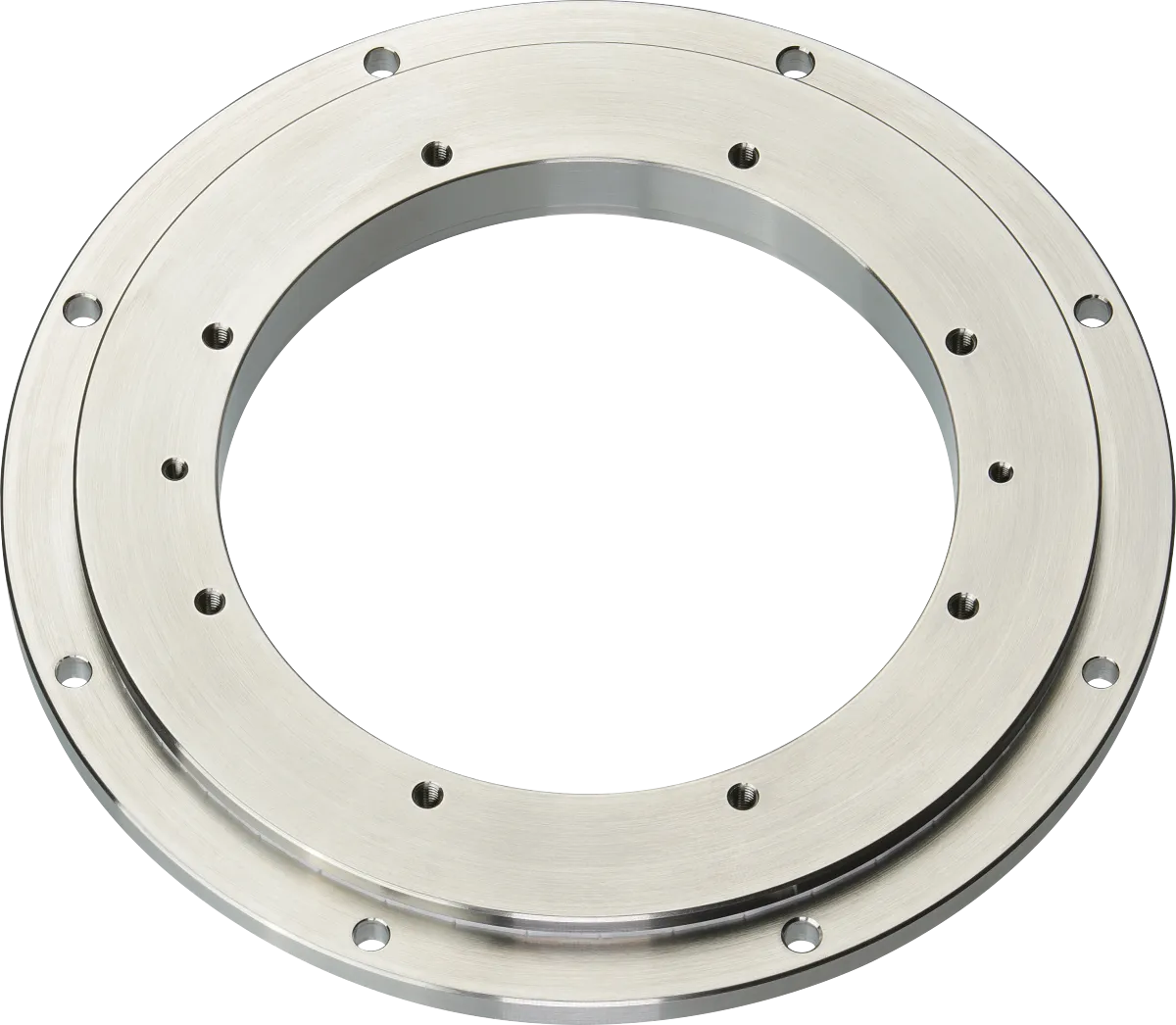

iglidur® slewing ring PRT-04, stainless steel body, sliding elements made from iglidur® A180, FDA compliant
- Universally applicable
- Housing made of stainless steel
- Sliding elements made of iglidur® J, iglidur® A180, iglidur® A181, iglidur® F2
- FDA and ESD compliant gliding elements available
- Absolutely maintenance-free
- Simple assembly
- For high loads, high rigidity
Part No.
D [mm]
Material sliding element
Dimensions
Fold
H [mm]
16 Fold
D [mm]
80 Fold
D1 [mm]
70 Fold
d1 [mm]
30 Fold
d [mm]
20 Fold
Ø d2 [mm]
60 Fold
h [mm]
6 Fold
T1
8 × 45° Fold
T2
8 × 45° Fold
S1
M4 Fold
S2
Ø 4,5 Fold
K1
Ø4.5 Fold
General properties
Fold
Weight [g]
377.293 Fold
Housing material
Stainless steel Fold
M4 thread (mounting ring)
Large mounting ring
Spacer mounting ring
DrivePin
Slot nut profile
Collar clamp material
iglidur® A180 Fold
Mechanical properties
Fold
Axial load, static [N]
5000 Fold
Axial load, dynamic [N]
1500 Fold
Rotating speed dry running [rpm]
300 Fold
max. permissible tilt moment [Nm]
30 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
90 Fold
Lower application temperature [°C]
-50 Fold
Requirements
Fold
FDA compliant
EU 10/2011 compliant
