dryspin injection-moulded lead screw nut made of iglidur J | Shape: flange | Metric thread | RH

Picture 01
Picture 01

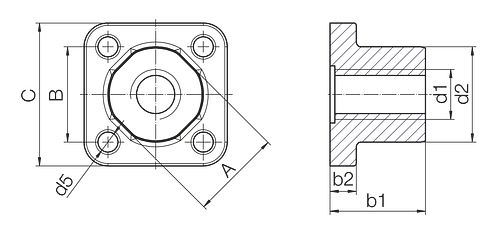

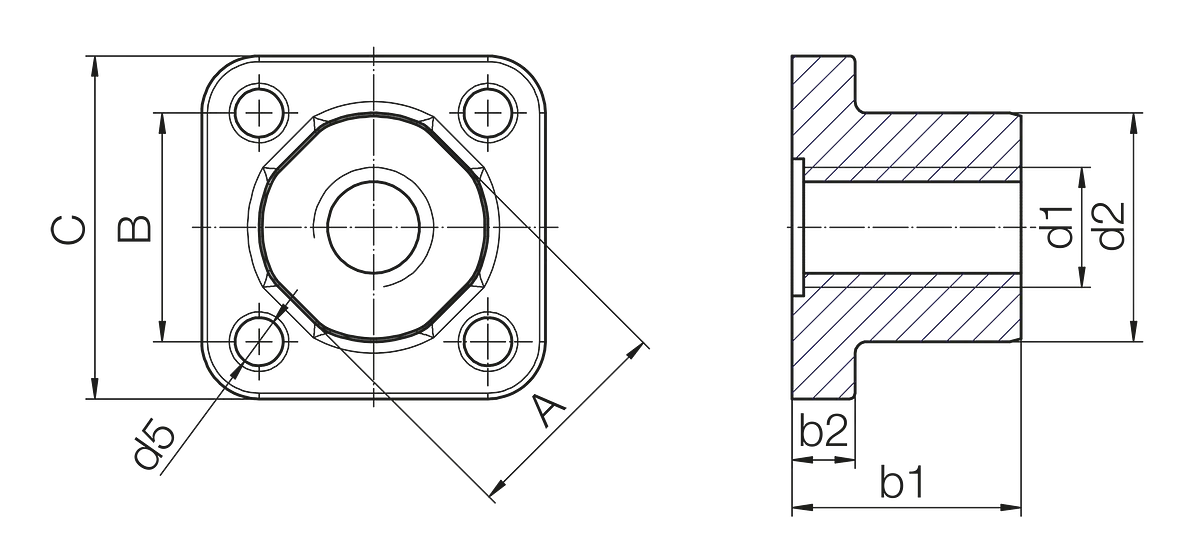

Drawing 01
  • Material: iglidur J
  • Our all-rounder at almost all speeds
  • Thread type: metric thread according to DIN 976
  • Thread type: fastening thread
  • Thread direction: right hand
  • Permissible surface pressure in the thread: up to 4MPa
  • Design: injection-moulding lead screw nut with machined thread
  • Shape: lead screw nut with square flange


Calculate the service life here

Part No.
Thread size
Ø d2 [mm]
b1 [mm]
Dimensions
Fold
312182cf-49bd-45e7-9428-0d434f2ed4e7-origin-ZG_drylin-FM-C
Thread size
M5 Unfold Fold
Ø d1 [mm]
5 Unfold Fold
Ø d2 [mm]
12 Unfold Fold
Ø d3 [mm]
0 Unfold Fold
Ø d5 [mm]
3.2 Unfold Fold
A [mm]
11 Unfold Fold
B [mm]
12 Unfold Fold
C [mm]
18 Unfold Fold
b1 [mm]
12 Unfold Fold
b2 [mm]
4 Unfold Fold
General properties
Fold
Thread direction
Right-hand thread Unfold Fold
Thread type
Metric thread; standard for highest compatibility Unfold Fold
With spanner flat
Weight [g]
2.56 Unfold Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
