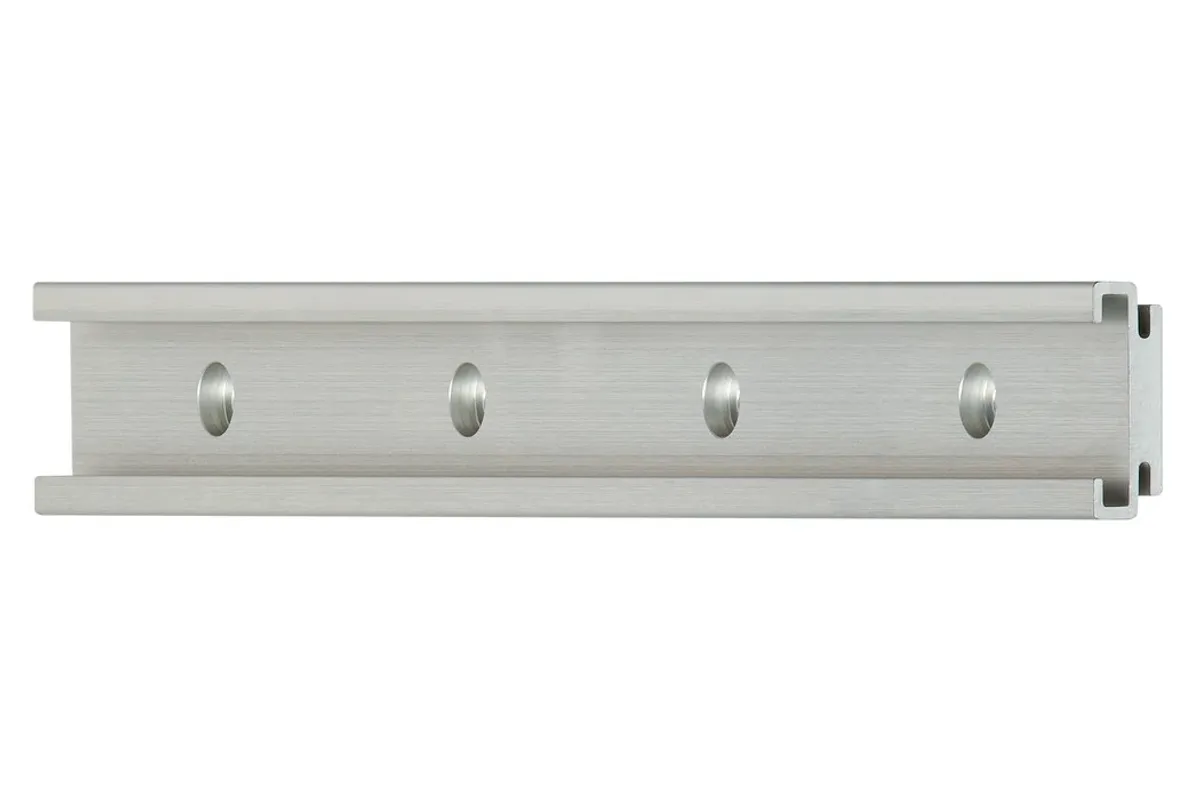

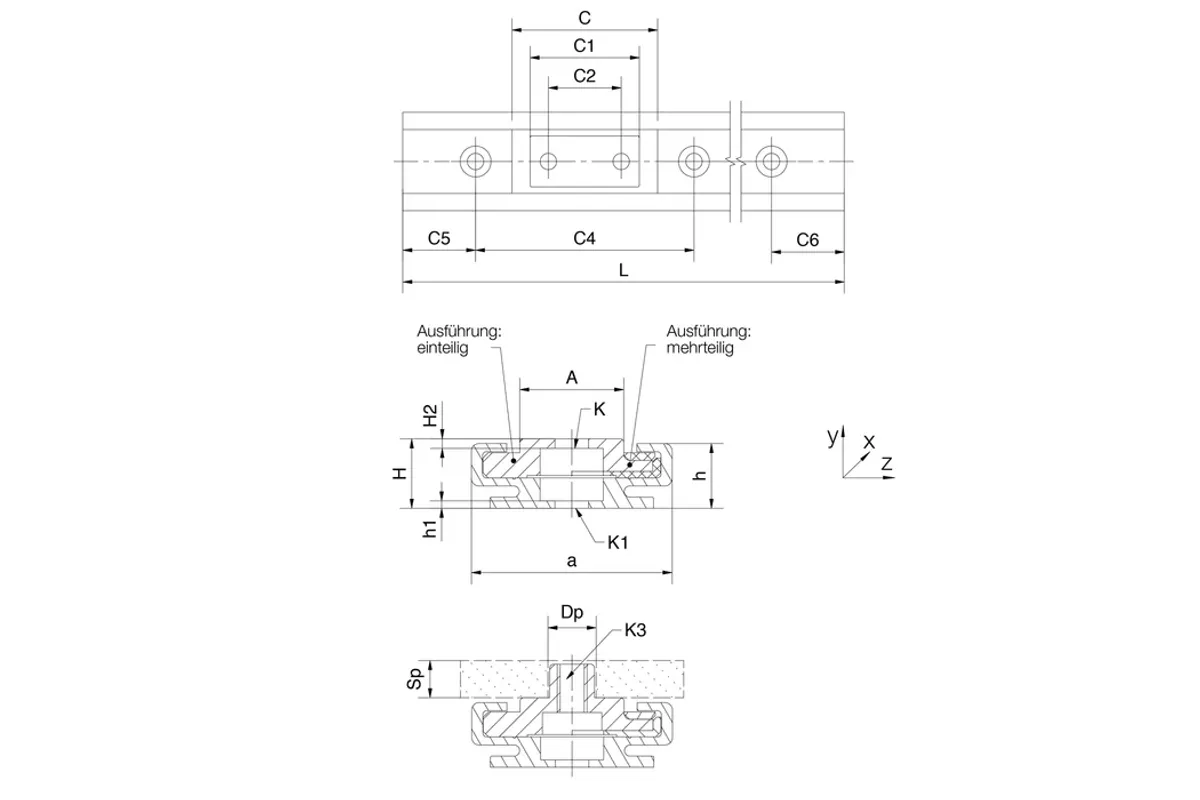

drylin® N guide rail, installation size 27
Material: Aluminum, clear anodizedInstallation size: 27
Part No.
Hole pattern rail
Selection Info
L[mm]
1000Default cutting error is ±0.3mm, contact us for special needsC4[mm]
60C5[mm]
20C6[mm]
20 Dimensions
Fold
a [mm]
27 Fold
C4 [mm]
60 Fold
C5/C6 (min.) [mm]
20 Fold
C5/C6 (max.) [mm]
49.5 Fold
h [mm]
9 Fold
h1 [mm]
1.1 Fold
General properties
Fold
Material
Aluminum, clear anodized Fold
Mechanical properties
Fold
Geometrical moment of inertia ly [mm4]
6524 Fold
Geometrical moment of inertia lz [mm4]
588 Fold
