xiros® ceramic ball bearings, temperature and chemical expert
- Resistant to temperature, chemicals and corrosion
- Operating temperature up to +250 °C
- Ring and ball material: zirconium oxide or silicon nitride
- Cage material: PEEK
- Shaft tolerance: g6
- Mounting hole tolerance: J6

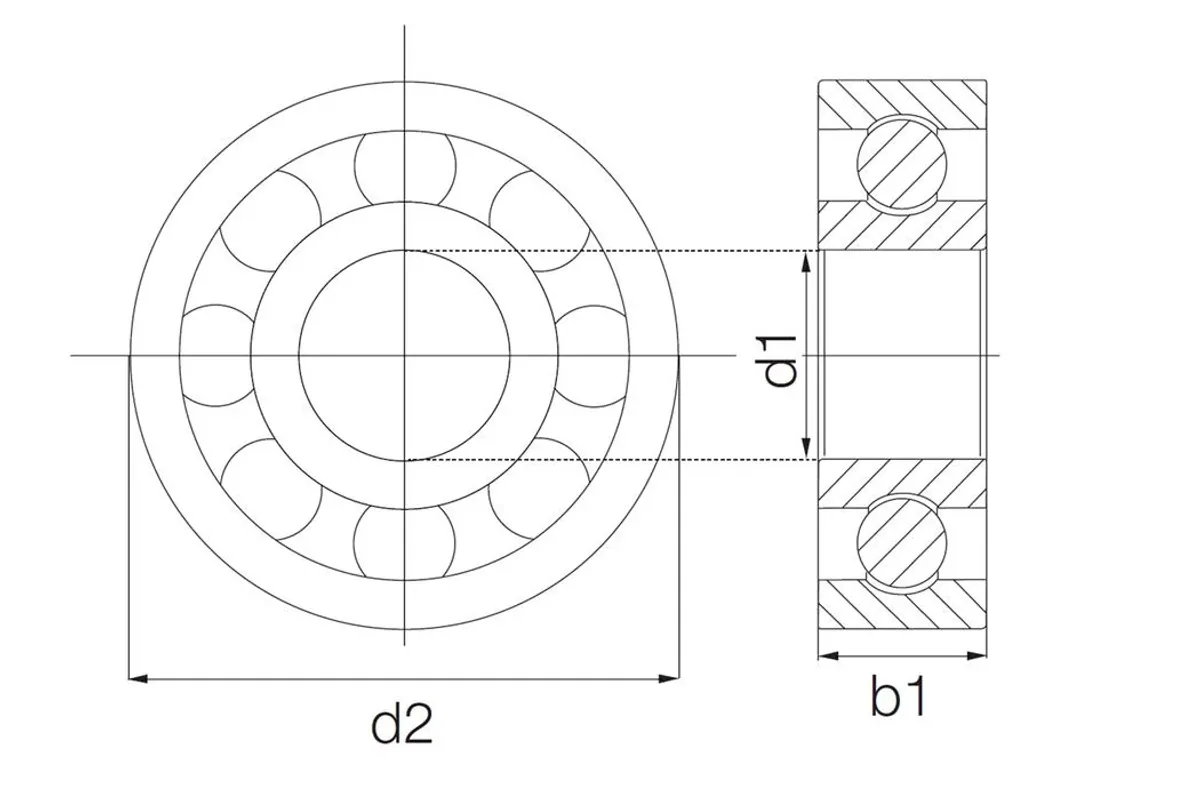

Part No.
Ø d2 [mm]
Ø d1 [mm]
b1 [mm]
Rings material
Design
Dimensions
Fold
Ø d1 [mm]
10 Fold
Ø d2 [mm]
26 Fold
b1 [mm]
8 Fold
Tolerance of shaft
g6 Fold
Housing bore tolerance
J6 Fold
General properties
Fold
Ball material
silicon nitride Fold
Colour
黑色与白色 Fold
Weight [g]
8.9 Fold
Mechanical properties
Fold
max. speed (rpm)
2200 Fold
Static load capacity [N]
360 Fold
Dynamic load capacity [N]
1270 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
250 Fold
