drygear® Apiro® 齿条减速箱,重载型

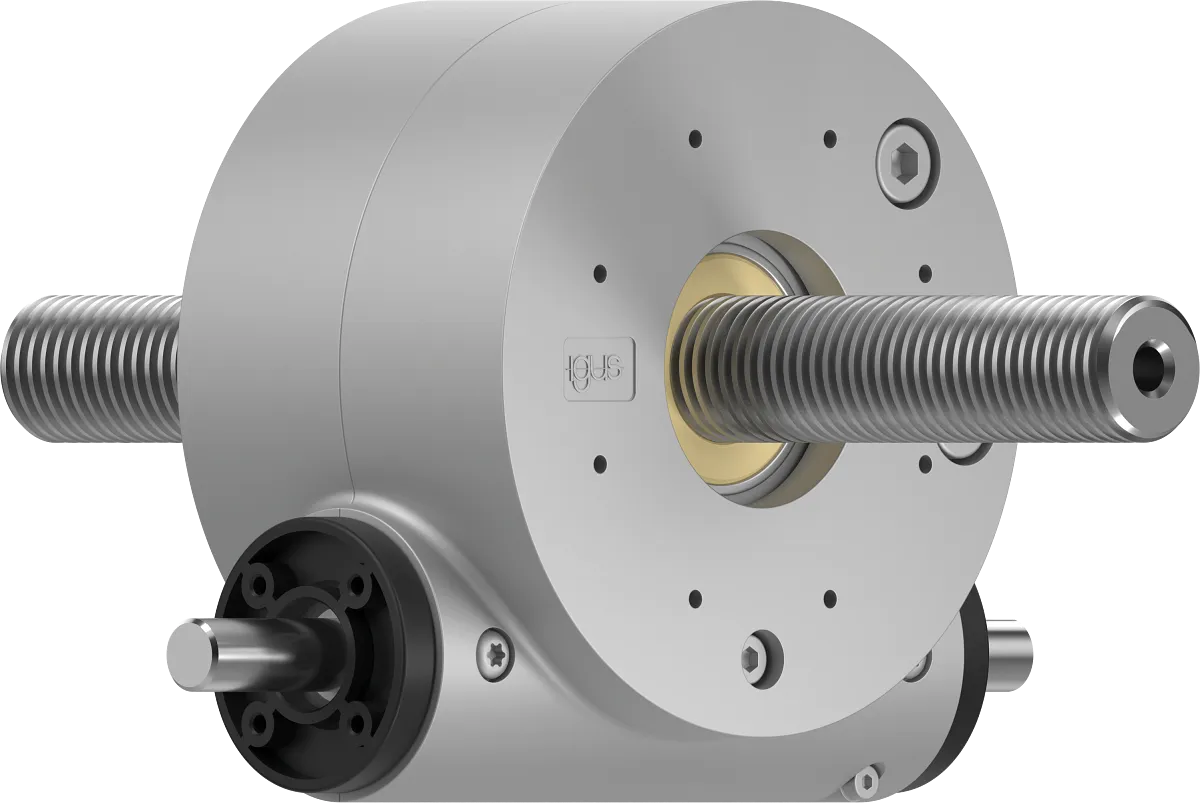

Picture 01
Picture 01

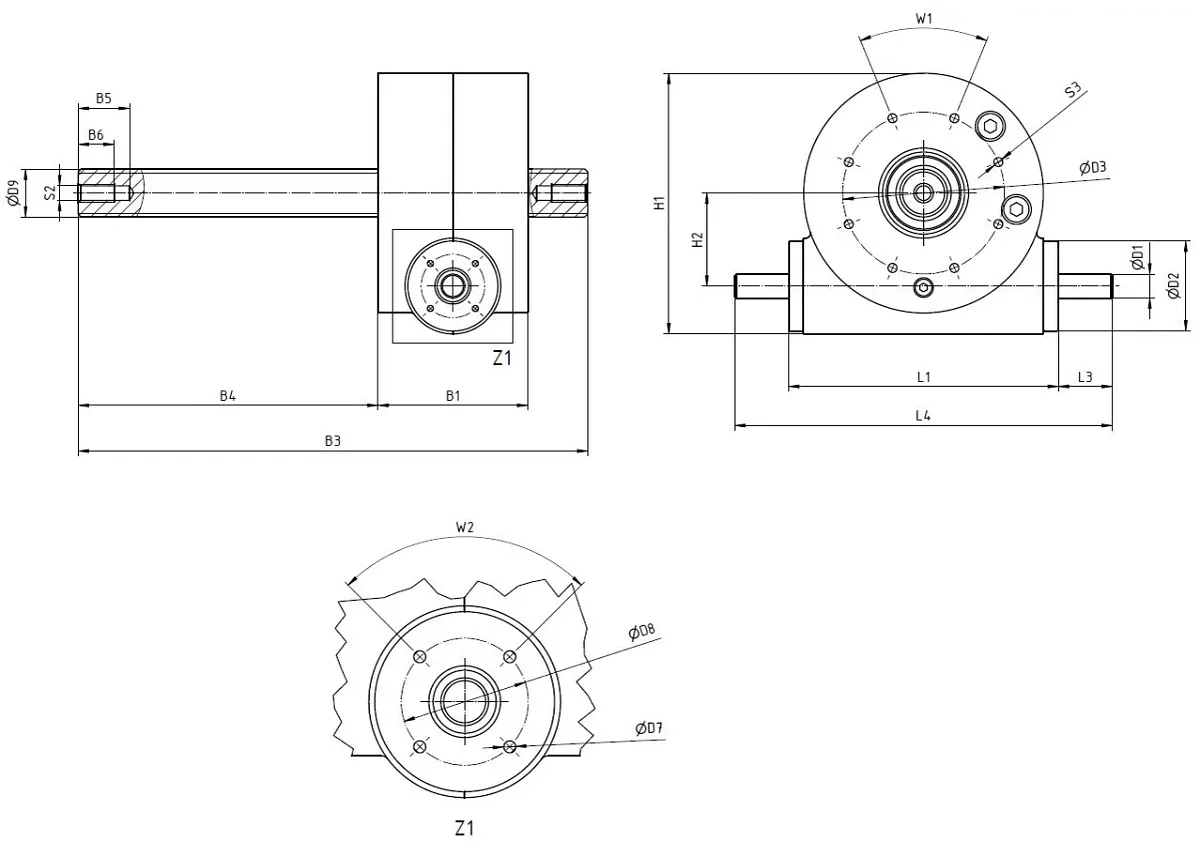

Drawing 01
新型
  • Increased protection, more stability and more precise fastening
  • Robust design saves maintenance and replacement costs in the long term thanks to long service life and lubrication-free operation


  • Max. dynamic load: 300N
  • Rated torque: 2.5Nm
  • Pitch: 2mm
  • Feed rate TR lead screw: 0.5mm/revolution
  • Stroke: 50mm to 250mm


Our heavy-duty Apiro has an increase in axial force absorption of 400% compared to the standard Apiro.

产品代码
螺纹规格
行程 [mm]
尺寸
收起
B1 [mm]
50 展开 收起
B3 [mm]
170 展开 收起
B4 [mm]
100 展开 收起
B5 [mm]
17 展开 收起
B6 [mm]
12 展开 收起
L1 [mm]
90 展开 收起
L3 [mm]
18 展开 收起
L4 [mm]
126 展开 收起
H1 [mm]
87 展开 收起
H2 [mm]
31 展开 收起
W1
8x45° 展开 收起
W2
4x90° 展开 收起
S2
M6 展开 收起
S3
M3 展开 收起
Ø D1 [mm]
8 展开 收起
Ø D2 [mm]
30 展开 收起
Ø D3 [mm]
54 展开 收起
Ø D7 [mm]
2 展开 收起
Ø D8 [mm]
21.2 展开 收起
Ø D9 [mm]
16 展开 收起
一般性能
收起
重量 [g]
2410.863 展开 收起
机械性能
收起
间隙 [°]
0.5 展开 收起
额定扭矩 [Nm]
2.5 展开 收起
传动比
4:1 展开 收起
最大轴向载荷(动态) [N]
300 展开 收起
