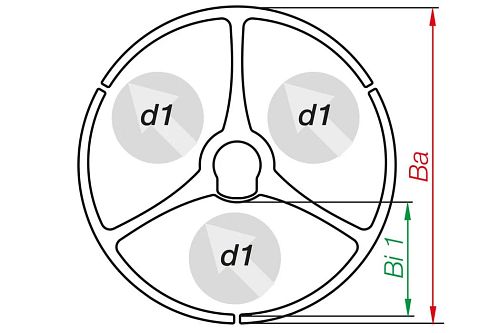

Drawing 01

triflex® R series TRL

Light versionCost-effective"easy" designSimply press cables inBend radius R: 50-145mm
Part No.
Bend radius [R] [mm]
Connecting principle
Max. cable diameter (d1) [mm]
Inner height [Hi]
32.2 mm
Max. cable diameter
8 mm
Opening principle
Can be opened along the inner and outer radius
Selection Info
Purchase method
Assembled PartsFully assembled chain (Including the separators)
Installation type
unsupported
Dimensions
Fold
Size index
30 Unfold Fold
Bend radius [R] [mm]
50 Unfold Fold
Chain links per metre
89 Unfold Fold
Pitch [mm]
11.3 Unfold Fold
Bi inner height chamber 1 [mm]
12.5 Unfold Fold
Bi inner height Chamber 2 [mm]
11 Unfold Fold
Outer width [Ba] [mm]
34.5 Unfold Fold
Inner width [Bi] [mm]
32.2 Unfold Fold
Max. cable diameter (d1) [mm]
8 Unfold Fold
Max. cable diameter (d2) [mm]
10 Unfold Fold
General properties
Fold
Application area
For multi-axis movements Unfold Fold
Energy chain system
triflex® R TRL Unfold Fold
Shipping weight (kg or kg/m)
0.26 Unfold Fold

Sales Consulting

Echain travel length and length

Fold
Chain Length (mm)
Quantity (link)
Pitch
11.3 mm

Total Price

Collapse Parts List
Parts list (1 items)Check Parts Prices
e-chain®
TRL.30.050.0
Estimated shipping in 2 business days
x1 link

Total system quantity
Price Per SystemWithout Tax
¥6.53
Total PriceWithout Tax
¥6.53
Total taxTax Rate13%
+ ¥0.85
Total Price Includes Tax
¥7.38
