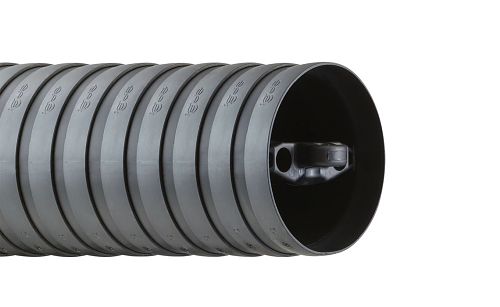

triflex® R Series TRC
Energy tubeEnclosed designMaximum swarf protection for cablesBend radius R: 50 - 182 mm
Part No.
Bend radius [R] [mm]
Connecting principle
Max. cable diameter (d1) [mm]
Inner height [Hi]
30.5 mm
Max. cable diameter
10 mm
Opening principle
closed
Selection Info
Purchase method
Assembled PartsFully assembled chain (Including the separators)
Installation type
unsupported
Dimensions
Fold
Size index
30 Fold
Bend radius [R] [mm]
50 Fold
Chain links per metre
89 Fold
Pitch [mm]
11.3 Fold

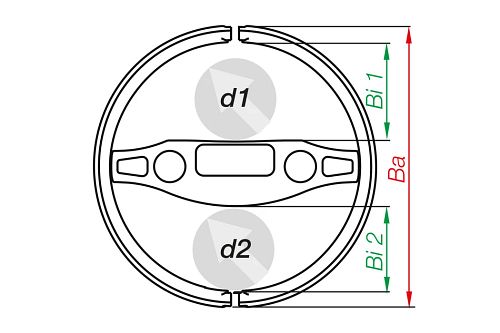

Bi inner height chamber 1 [mm]
12 Fold
Bi inner height Chamber 2 [mm]
10 Fold

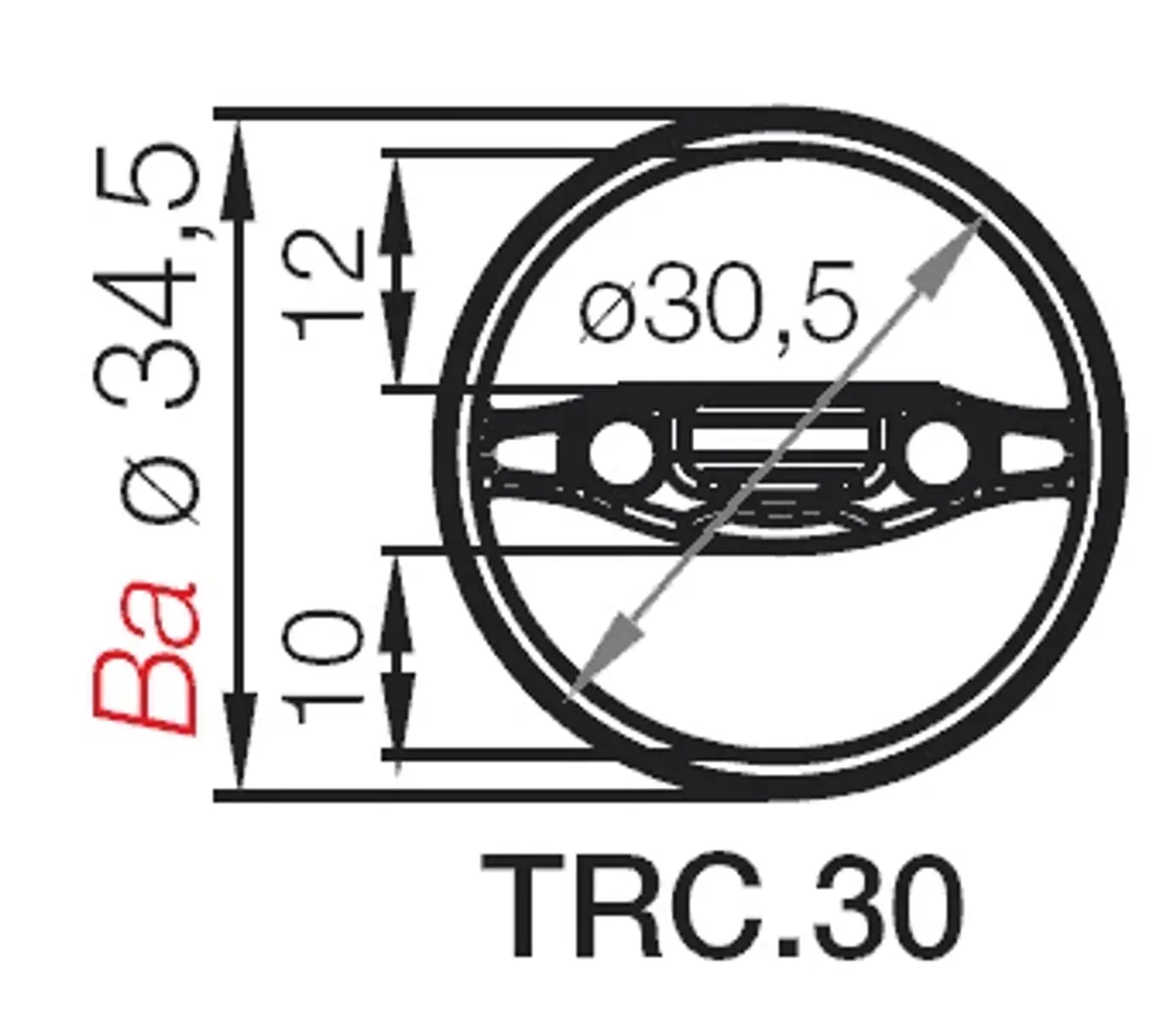

Outer width [Ba] [mm]
34.5 Fold
Inner width [Bi] [mm]
30.5 Fold
Max. cable diameter (d1) [mm]
10 Fold
Max. cable diameter (d2) [mm]
8 Fold
General properties
Fold
Application area
For multi-axis movements Fold
Energy chain system
triflex® R TRC Fold
Shipping weight (kg or kg/m)
0.27 Fold
