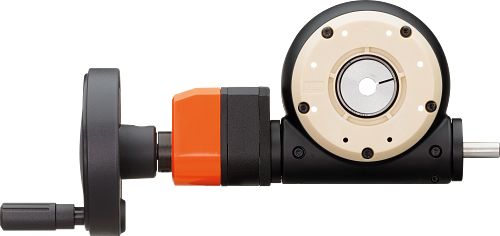

drygear® Apiro gearbox with manual clamping, position indicator and handwheel
Product information
- Available ratios: 4:1, 8:1, 32:1, 64:1
- Output torque: 2.5Nm
- Output: Coupling for 8mm shaft diameter
- Drive: Hand clamp, position indicator & handwheel
A wide range of accessories is optionally available in the Apiro® modular gearbox system.
Couplings for other shaft diameters up to max. 12mm are available on request.
Part No.
Transmission
Ø T [mm]
Dimensions
Fold
Axis distance (A1) [mm]
31 Fold
B3 [mm]
55 Fold
L1 [mm]
90 Fold
L2 [mm]
220 Fold
L3 [mm]
18 Fold
L4 [mm]
238 Fold
B1 [mm]
50 Fold
H1 [mm]
87 Fold
H2 [mm]
31 Fold
Ø T [mm]
12 Fold
Ø D7 [mm]
2 Fold
W1
8x45° Fold
W2
4x90° Fold
Ø D1 [mm]
8 Fold
Ø D2 [mm]
30 Fold
Ø D3 [mm]
54 Fold
Ø D7 [mm]
2 Fold
Ø D8 [mm]
21.2 Fold
Ø D9 [mm]
25.2 Fold
General properties
Fold
Weight [g]
481.986 Fold
Mechanical properties
Fold
Backlash [°]
0.5 Fold
Rated torque [Nm]
2.5 Fold
Transmission
32:1 Fold
Rated speed [r/min]
20 Fold
