chainflex® coax cable CFKOAX
- For extremely heavy duty applications
- TPE outer jacket
- Hydrolysis and microbe-resistant
- Silicone-free
- UV-resistant
- Oil-resistant (following DIN EN 60811-404), resistant to bio oils (following VDMA 24568 with Plantocut 8 S-MB tested by DEA)
- Guarantee up to 4 years
Part No.
Outer diameter (d) max. [mm]
General properties
Fold
Number of cores and conductor nominal cross-section
1xHF75-0.3/1.6 Fold
Outer diameter (d) max. [mm]
4.5 Fold
Weight per km [kg/km]
23 Fold
Copper index kg/km [kg/km]
7 Fold
Dynamic information
Fold
Min. bend radius, e-chain (factor) [x d]
10 Fold
Min. bend radius, e-chain [mm]
45 Fold
Min. bend radius, flexible (factor) [x d]
8 Fold
Min. bend radius, fixed (factor) [x d]
5 Fold
Temperature e-chain®
-35°C up to +100°C Fold
Temperature, flexible
-50°C to +100°C (according to DIN EN 60811-504) Fold
Temperature, fixed
-55°C to +100°C (according to DIN EN 50305) Fold
v max. unsupported (speed) [m/s]
10 Fold
v max. gliding (speed) [m/s]
5 Fold
a max. (acceleration) [m/s²]
100 Fold
Electrical properties
Fold
Nominal voltage
500V (according to DIN VDE 0245) Fold
UL Voltage Rating [V]
500 Fold
Test voltage
1500V (according to DIN EN 50395) Fold
Wave resistance approx. [Ω]
75 Fold
Maximum conductor resistance at 20°C [Ω/km]
800 Fold

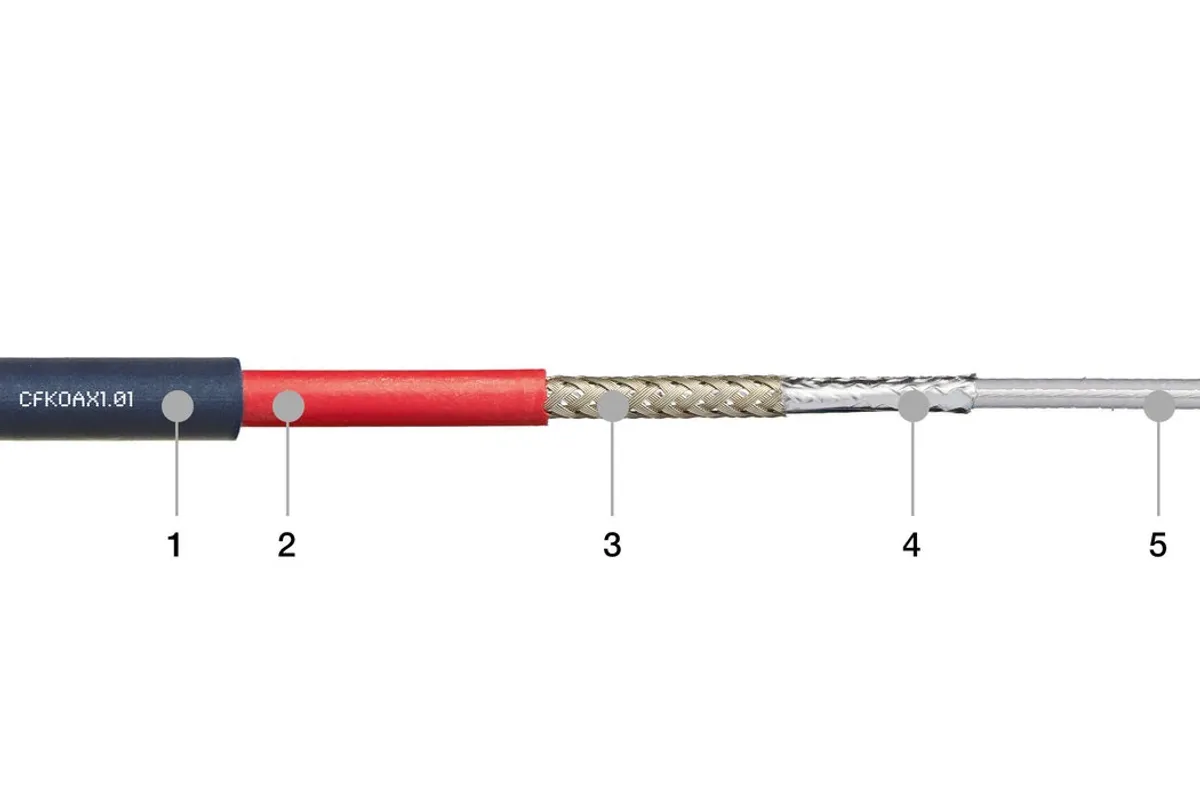

Core
Fold
Conductor
Multi-wire; single-wire diameter with pitch length adapted to suit the requirements in e-chains®. Fold
Core insulation
Special FEP mixture (CFKoax1/3)
Special PE mixture (CFKoax2) Fold
Special PE mixture (CFKoax2) Fold
Core stranding
Cores wound in a layer with especially short pitch length. Fold
Element shield
Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90% Fold
Element jacket
TPE mixture adapted to suit the requirements in e-chains®. Fold
Overall shield
Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90% Fold
Outer jacket
Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®. Fold
Outer jacket colour
Steel blue (comparable to RAL 5011) Fold
Characteristics classification
Fold
UV resistance
Medium Fold
Oil resistance
Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4 Fold
Silicone-free
Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992) Fold
PTFE-free
The design of these products does not contain PTFE Fold
UL verified
Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“ Fold
REACH
In accordance with Regulation (EC) No. 1907/2006 (REACH) Fold
Lead-free
According to 2011/65/EU (RoHs-II/RoHS-III) Fold
Cleanroom
According to ISO Class 1. The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1 Fold
CE
According to 2014/35/EU Fold
