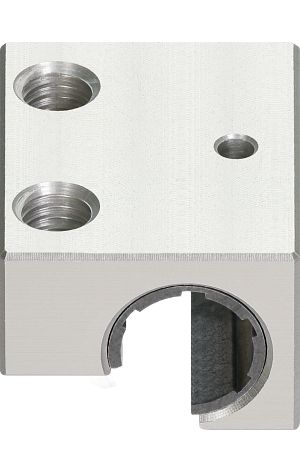

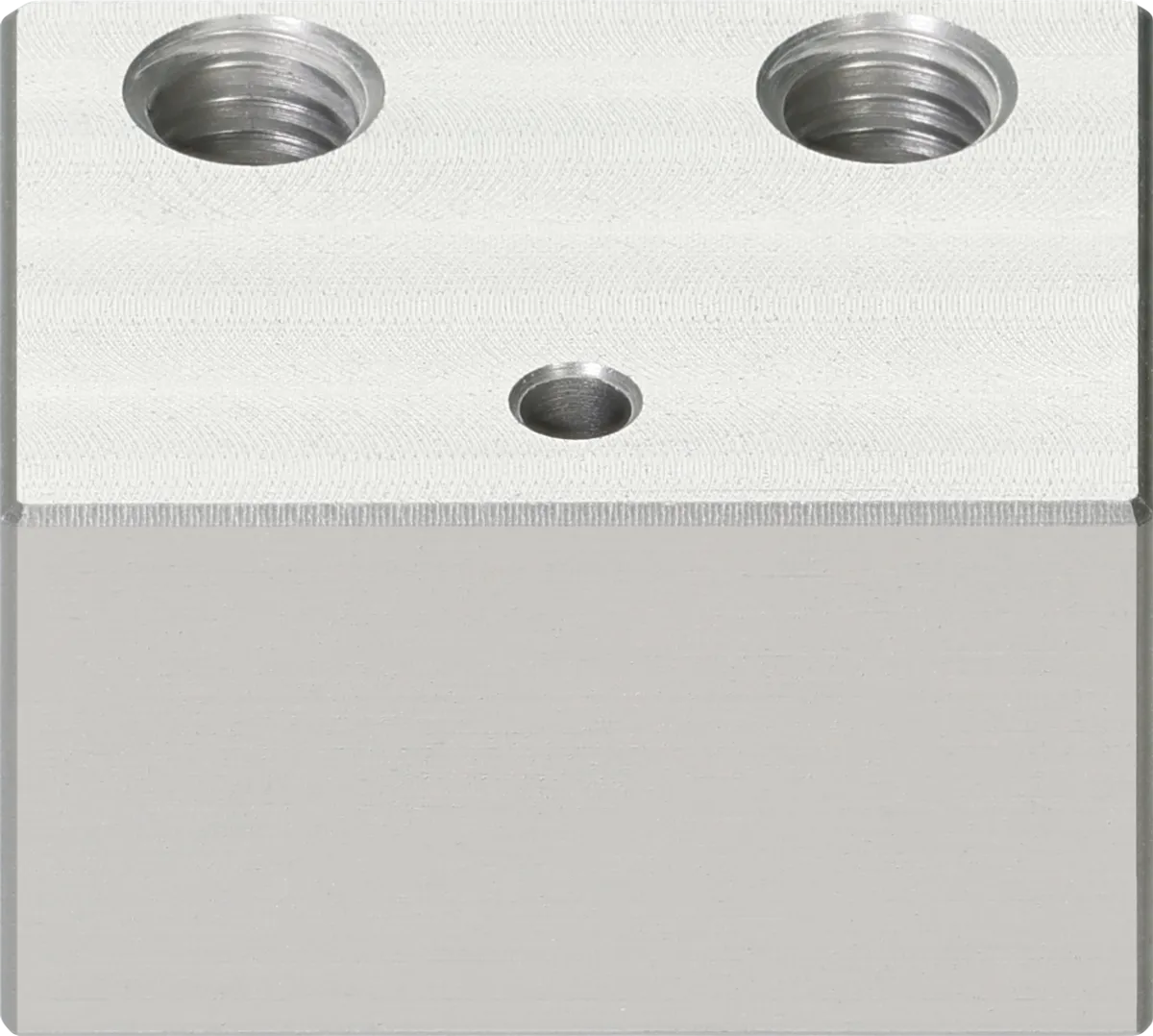

drylin® W housing bearing WJ200UMS

Narrow system width
No linear carriage run-offs

Part No.

WJ200UMS-01-06-AL

Floating bearing

Dimensions

887d6a90-fc69-4621-a167-93f1ea029104-origin-DRL_TD_WJ200UMS-01-xx-AL_1

Floating bearing

none Unfold Fold

A3 [mm]

13.5 Unfold Fold

B [mm]

18 Unfold Fold

C1 [mm]

19 Unfold Fold

C3 [mm]

10 Unfold Fold

H [mm]

14 Unfold Fold

Production and installation tolerances

H-tolerance

±0,25 mm Unfold Fold

General properties

06 Unfold Fold

Design

round Unfold Fold

Material

Aluminum, hard anodized Unfold Fold

Anti-Reflex

Mechanical properties

Static load capacity Coy [N]

210 Unfold Fold

Static load capacity Coz+ [N]

140 Unfold Fold

Static load capacity Coz- [N]

210 Unfold Fold
