xiros® axial ball bearings, single row, xirodur® B180, stainless steel balls
- For shafts Ø: 10, 20 mm
- Good chemical and seawater resistance
- Suitable for food contact
- Operating temperature: -40 °C to +80 °C
- Ring material: xirodur® B180
- Ball material: stainless steel
- Also available with glass balls
Part No.
size
Ø d2 [mm]

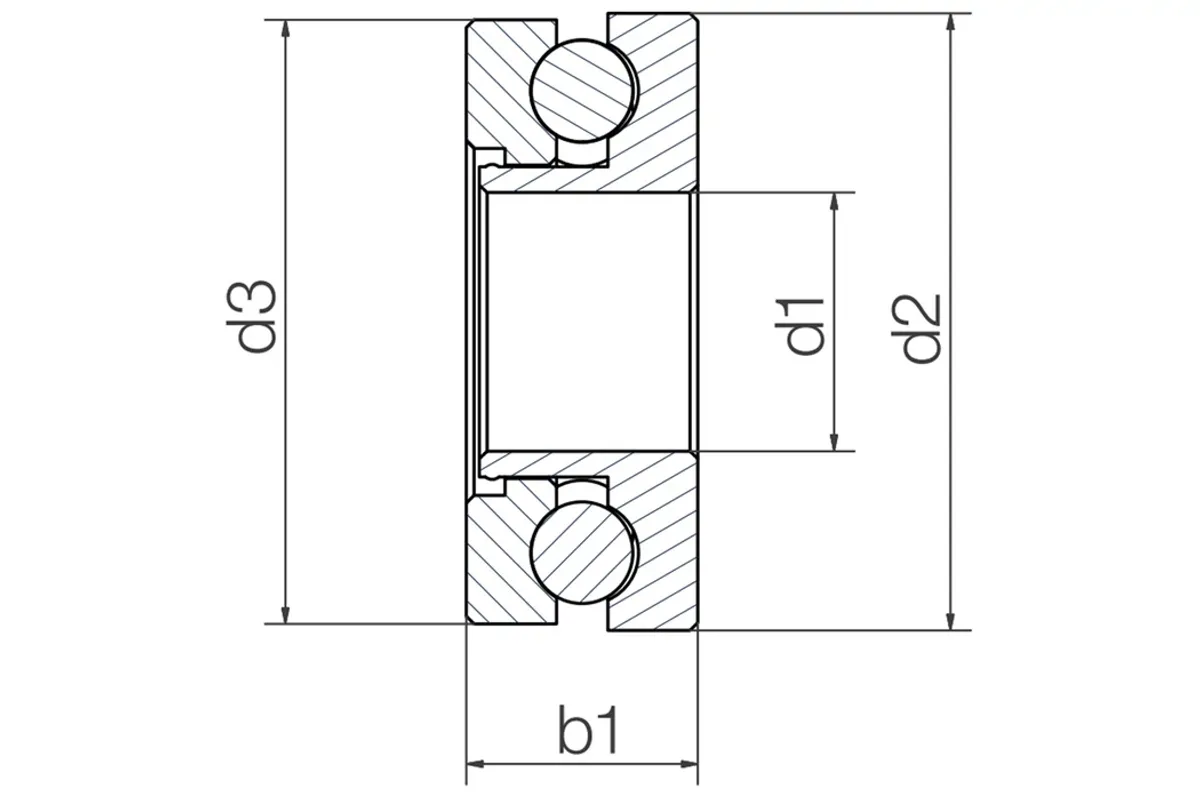

Dimensions
Fold
size
51100 Fold
Ø d1 [mm]
10 Fold
Ø d2 [mm]
23.5 Fold
Ø d3 (Flange) [mm]
24 Fold
b1 [mm]
9 Fold
General properties
Fold
Rings material
xirodur B180 Fold
Ball material
Stainless steel Fold
Density [g/cm³]
1.42 Fold
Colour
White Fold
Max. moisture absorption [Wt.- %]
0.2 Fold
Max. total moisture absorption [Wt.- %]
0.7 Fold
Shipping weight (kg or kg/m)
0.0067 Fold
Mechanical properties
Fold
max. speed (rpm)
600 Fold
Static load capacity [N]
200 Fold
Dynamic load capacity [N]
250 Fold
Modulus of elasticity [MPa]
2500 Fold
Flexural strength (at 20°C/68°F) [MPa]
68 Fold
Shore D hardness
77 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
80 Fold
Lower application temperature [°C]
-40 Fold
Chemical resistance
Fold
Alcohol
+ resistant Fold
Greases, oils without additives
+ resistant Fold
Hydrocarbons
+ resistant Fold
Fuels
+ resistant Fold
Strong acids
– non-resistant Fold
Strong alkalis
+ to 0 resistant to conditionally resistant Fold
Diluted acids
0 to – conditionally to non-resistant Fold
Diluted alkalis
+ resistant Fold
