xiros® conveyor roller, stainless steel tube, FDA-compliant components
- Outer Ø: 30, 38mm
- Suitable for contact with food
- Stainless steel tube 1.4301
- Length tolerance: ±0.5mm
Part No.

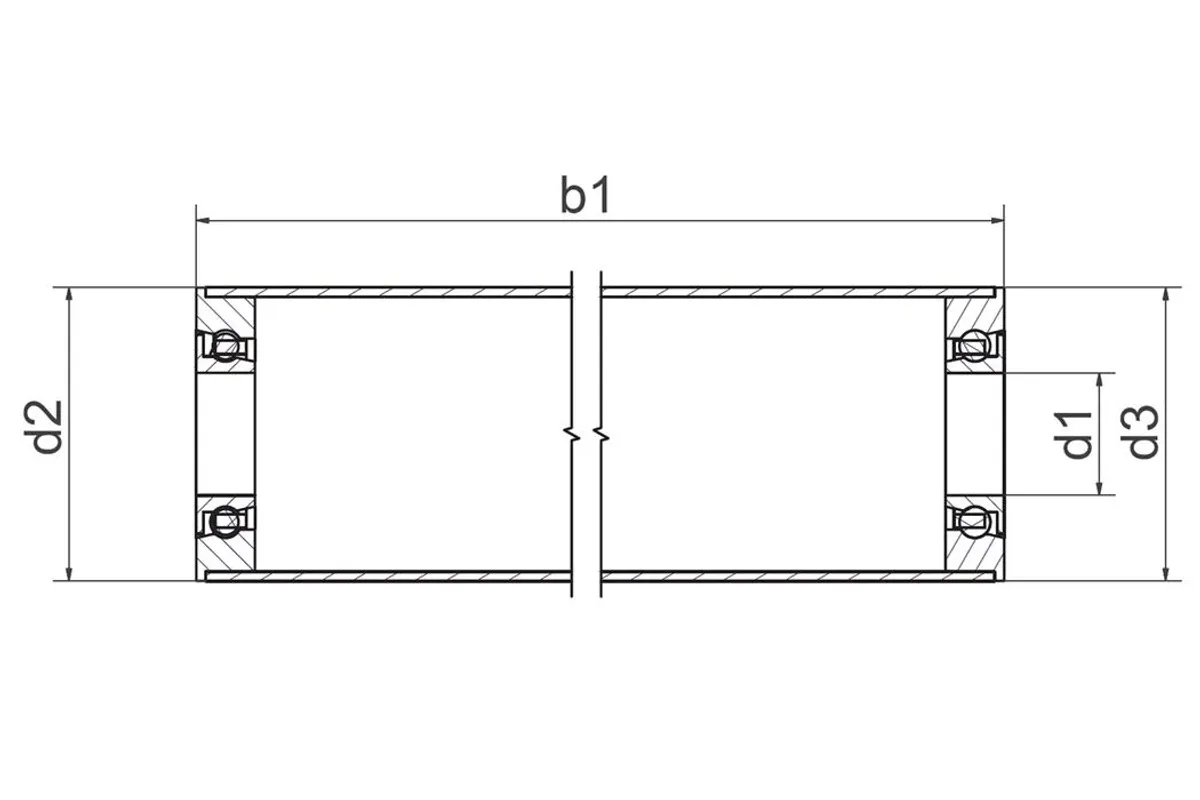

Ø d1 [mm]
Ø d2 [mm]
size
Dimensions
Fold
Ø d1 [mm]
10 Fold
Ø d2 [mm]
30 Fold
Ø d3 (Flange) [mm]
30 Fold
Length of guide roller
50-1500mm Fold
Tolerance of shaft
h6 Fold
General properties
Fold
Roll material
Stainless steel Fold
Ball material
Stainless steel Fold
Mechanical properties
Fold
Static load capacity [N]
220 Fold
max. speed (rpm)
2200 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
80 Fold
Lower application temperature [°C]
-40 Fold
Chemical resistance
Fold
Alcohol
+ resistant Fold
Greases, oils without additives
+ resistant Fold
Hydrocarbons
+ resistant Fold
Fuels
+ resistant Fold
Strong alkalis
+ to 0 resistant to conditionally resistant Fold
Strong acids
– non-resistant Fold
Diluted alkalis
+ resistant Fold
Diluted acids
+ resistant Fold
