igutex® TX2, sleeve bearing, mm - TX2SM
Very wear-resistant under extreme loads
- Particularly low wear in heavy-duty areas
- Up to 3.5 times more wear-resistant than igutex® TX1
- Good coefficient of wear and therefore a long service life
Part No.
Shaft diameter [mm]
Ø d2 [mm]
b1 [mm]

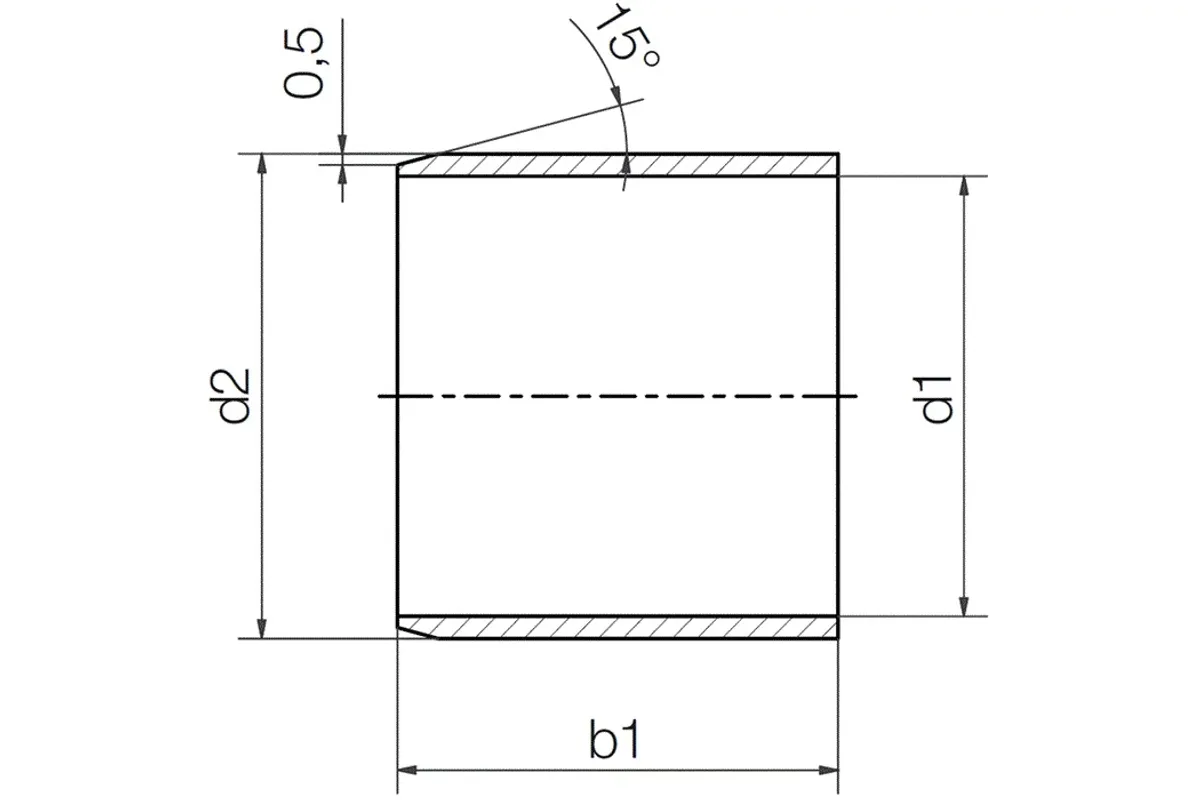

Dimensions
Fold
Shaft diameter [mm]
20 Fold
Ø d2 [mm]
25 Fold
b1 [mm]
20 Fold
Length of bevel (f1) [mm]
0.8 Fold
Length of bevel (f4) [mm]
0.5 Fold
Bevel angle (f4) [°]
30 Fold
Production and installation tolerances
Fold
after press-fit d1 max. [mm]
20.02 Fold
after press-fit d1 min. [mm]
20.15 Fold
Shaft size max. [mm]
20 Fold
Shaft size min. [mm]
19.948 Fold
Installation tolerance d1
N/A Fold
General properties
Fold
Coefficient of friction, dynamic, against steel
0,03 - 0,12 µ Fold
Mechanical properties
Fold
Max. recommended surface pressure [MPa]
180 Fold
Physical And Thermal Properties
Fold
Lower application temperature [°C]
-20 Fold
Max. short-term application temperature [°C]
140 Fold
Max. long-term application temperature [°C]
130 Fold
