igubal® angled ball and socket joints

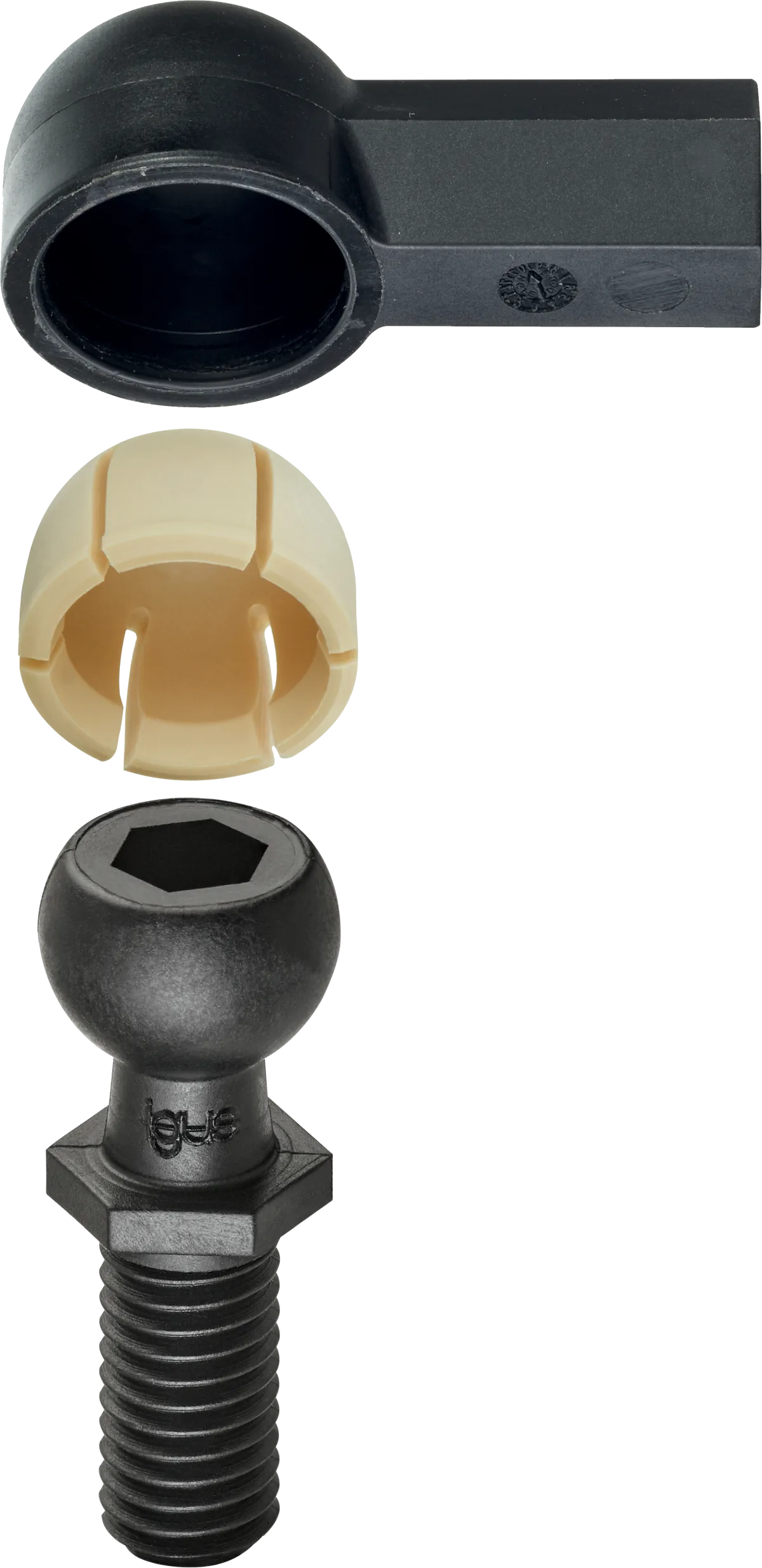

Picture 01
Picture 01

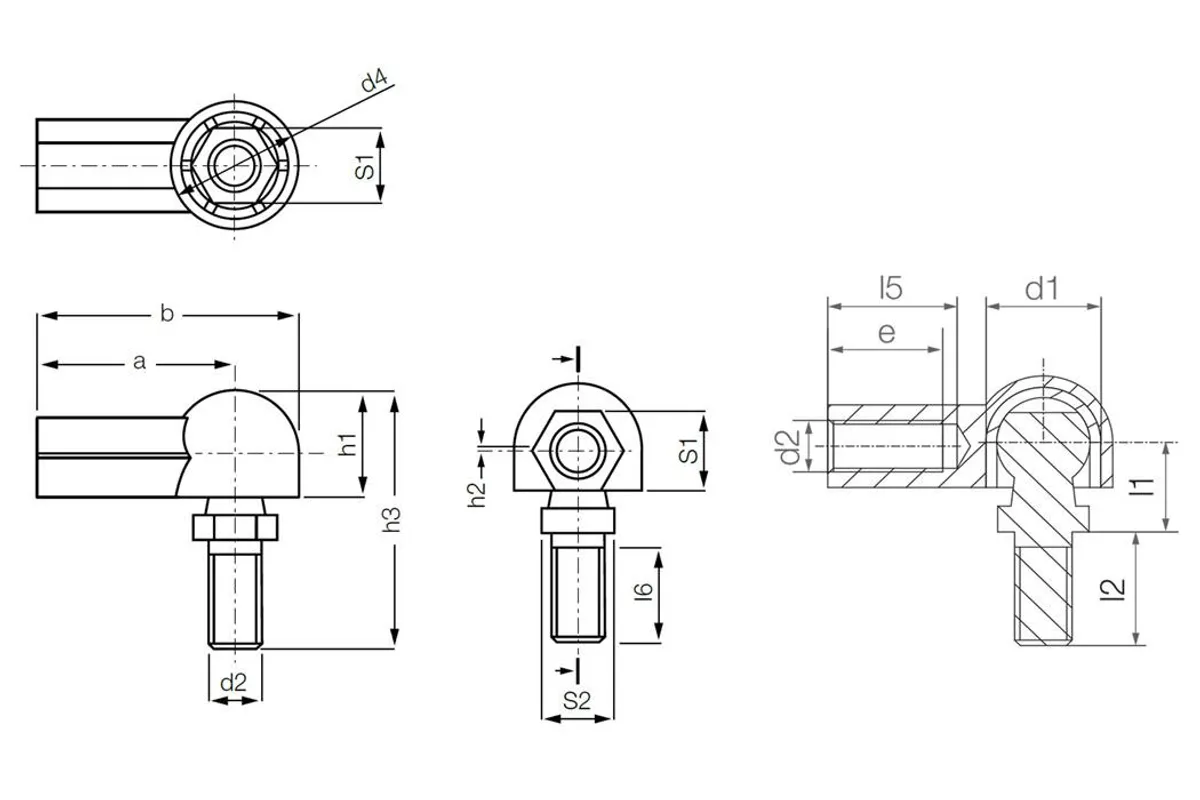

Drawing 01
  • Housing material: igumid G
  • Material of spherical cap: iglidur® W300
  • Connection for rotating and pivoting movements
  • Lightweight
Part No.
Ball diameter d1 [mm]
Material ball stud
Thread direction
Dimensions
Fold
76697a81-c9c4-427d-b1f6-e9bf63743cf3-origin-Zg_igubal_WGLM_WGRM_LC_MS
Ball diameter d1 [mm]
8 Unfold Fold
thread d2
M05 Unfold Fold
Ø d4 [mm]
12.8 Unfold Fold
l1 [mm]
9 Unfold Fold
l2 [mm]
10.2 Unfold Fold
l5 [mm]
14 Unfold Fold
l6 [mm]
6.2 Unfold Fold
h1 [mm]
10.8 Unfold Fold
h2 [mm]
0.65 Unfold Fold
h3 [mm]
24.9 Unfold Fold
a [mm]
22 Unfold Fold
b [mm]
31.4 Unfold Fold
e [mm]
11 Unfold Fold
S1
SW08 Unfold Fold
S2
SW07 Unfold Fold
Production and installation tolerances
Fold
h1 [mm]
10.8 Unfold Fold
General properties
Fold
Thread direction
Left-hand thread Unfold Fold
Housing material
igumid G Unfold Fold
Material ball stud
polymer Unfold Fold
Material ball cap
iglidur® W300 Unfold Fold
Max. pivot angle (α) [°]
25 Unfold Fold
Weight [g]
2.341 Unfold Fold
Mechanical properties
Fold
Maximum static pressure load in pin axis, short-term [N]
200 Unfold Fold
Maximum static pressure load in pin axis, long-term [N]
100 Unfold Fold
Maximum static tensile stress in pin axis, short-term [N]
30 Unfold Fold
Maximum static tensile stress in pin axis, long-term [N]
15 Unfold Fold
Max. static radial tensile stress, short-term [N]
600 Unfold Fold
Max. static radial tensile stress, long-term [N]
300 Unfold Fold
