iglidur® M250, double flange bearing, MDM, mm
Clip-in double flange bearing with symmetrical flange. The large second flange lets the bearing absorb higher axial forces and secures it axially even in the event of loosely toleranced mounts.
Part No.
Shaft diameter [mm]
b1 [mm]
Ø d3 (Flange) [mm]

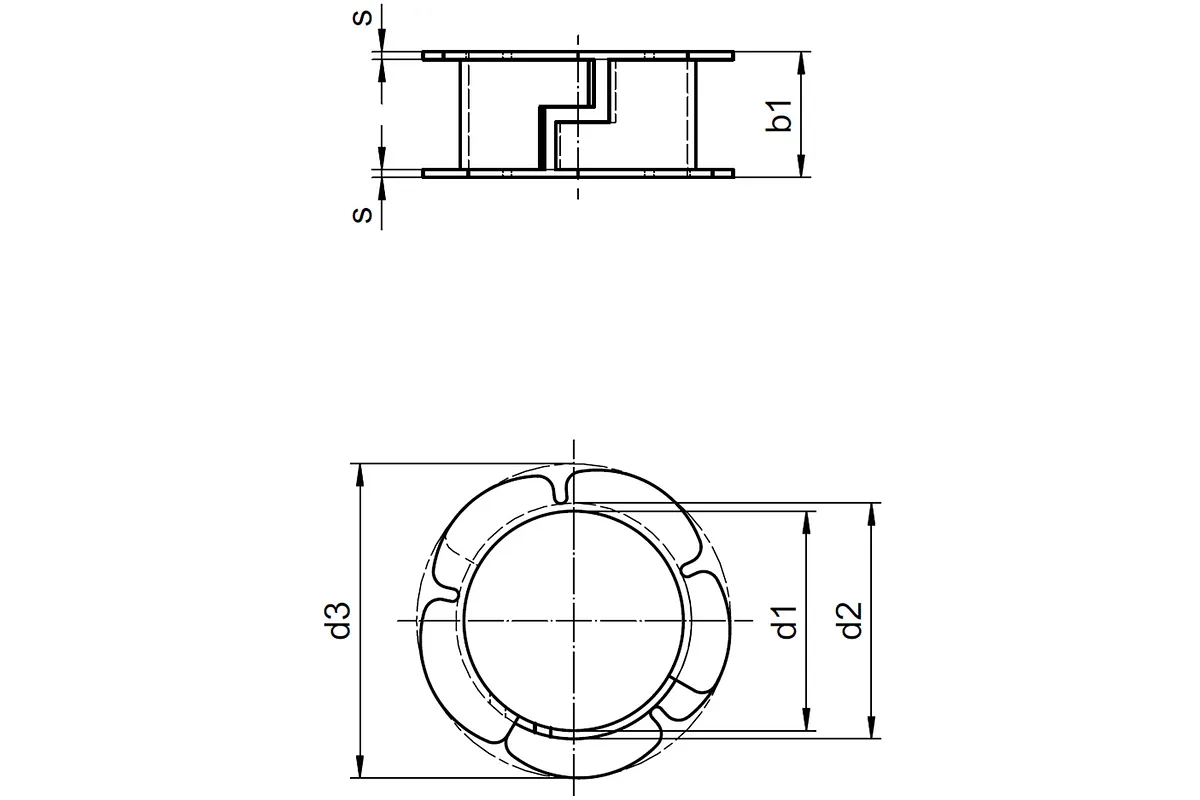

Dimensions
Fold
Shaft diameter [mm]
12 Fold
Ø d2 [mm]
13 Fold
Ø d3 (Flange) [mm]
16.5 Fold
b1 [mm]
7 Fold
Thickness s [mm]
0.5 Fold
Mechanical properties
Fold
Maximum surface speed, linear, short-term [m/s]
5 Fold
Maximum surface speed, linear, continuous [m/s]
2.5 Fold
Maximum surface speed, oscillating, continuous [m/s]
0.6 Fold
Maximum surface speed, rotating, short-term [m/s]
2 Fold
Maximum surface speed, rotating, continuous [m/s]
0.8 Fold
Maximum surface speed, oscillating, short-term [m/s]
1.4 Fold
