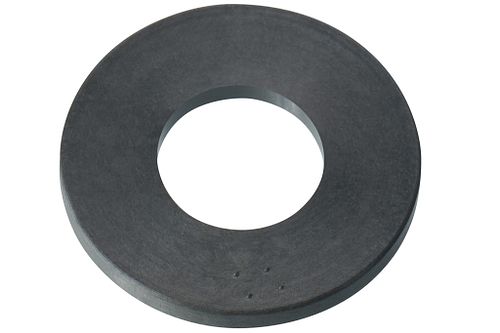

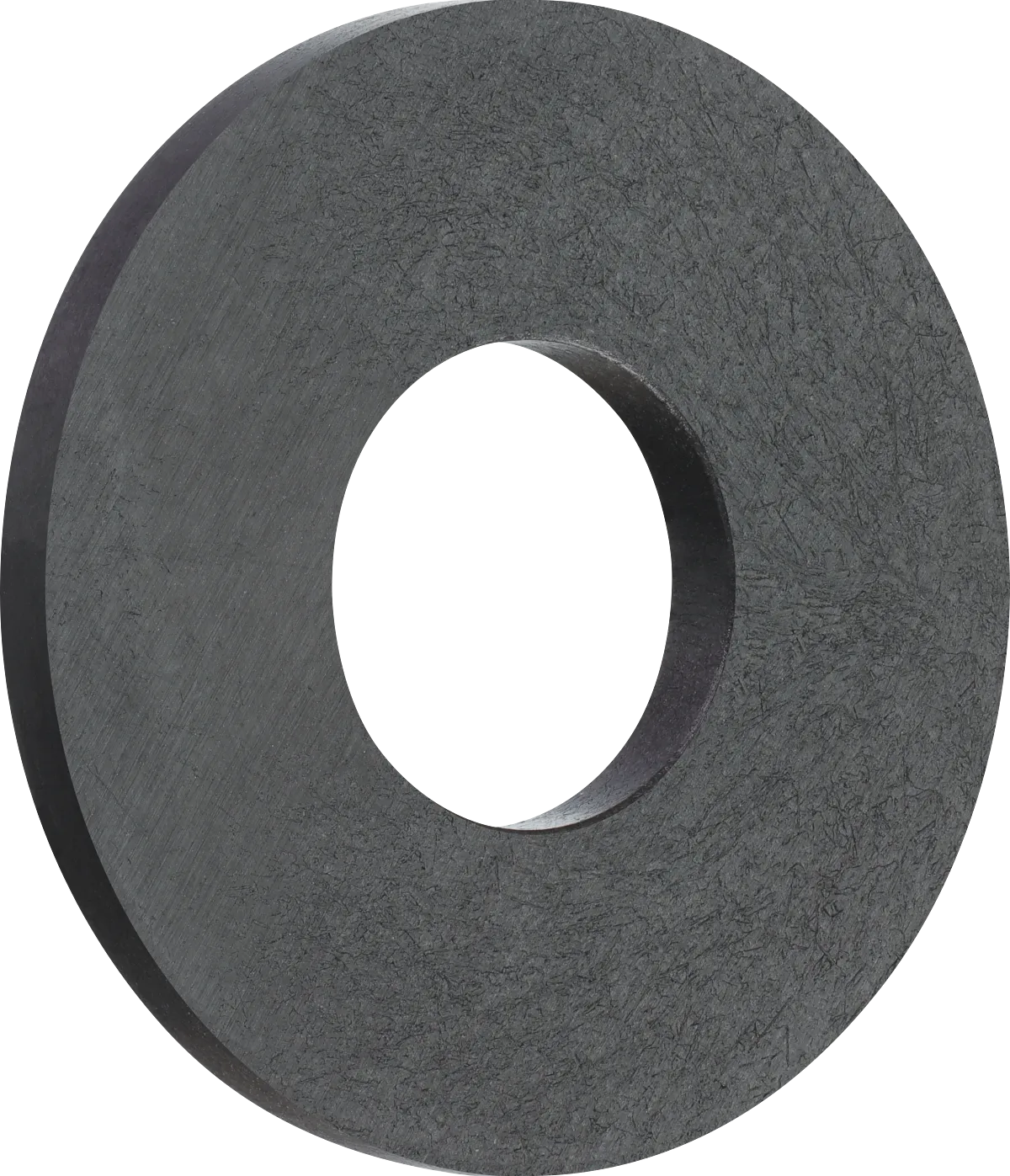

iglidur® G, thrust washer, mm - GTM
- Most popular iglidur® material worldwide
- High wear resistance
- Resistance to dust and dirt
- Cost-effective
Part No.
Shaft diameter [mm]
Ø d2 [mm]
Thickness s [mm]
Dimensions
Fold
Shaft diameter [mm]
4 Fold
Ø d2 [mm]
8 Fold
Thickness s [mm]
0.5 Fold
h [mm]
0.2 Fold
Ø d6 [mm]
8 Fold
Production and installation tolerances
Fold
Installation tolerance d1
+0,25 mm Fold
Tolerance d2 Housing bore
-0,25 mm Fold
s tolerance
-0,05 mm Fold
h tolerance
-0,2 +0,2 mm Fold
d6 tolerance
+0,12 mm Fold
Mechanical properties
Fold
Maximum surface speed, oscillating, short-term [m/s]
1.4 Fold
Maximum surface speed, rotating, continuous [m/s]
1 Fold
Maximum surface speed, rotating, short-term [m/s]
2 Fold
Maximum surface speed, oscillating, continuous [m/s]
0.7 Fold
Maximum surface speed, linear, continuous [m/s]
4 Fold
Maximum surface speed, linear, short-term [m/s]
5 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
RoHS 2 compliant according to EU guideline 2011/65/EU
