drylin T TWE-04 miniature guide carriage | E-coating >

drylin T TWE-04 miniature guide carriage | E-coating

Picture 01
Picture 01
Drawing 01
drylin_Baukasten_Video_T_TWE_04_Setup_und_Spieleinstellung2_0978d90d02
rohs
cleanroom
dimensions_identical_to_drylin_t
miniatur_icon

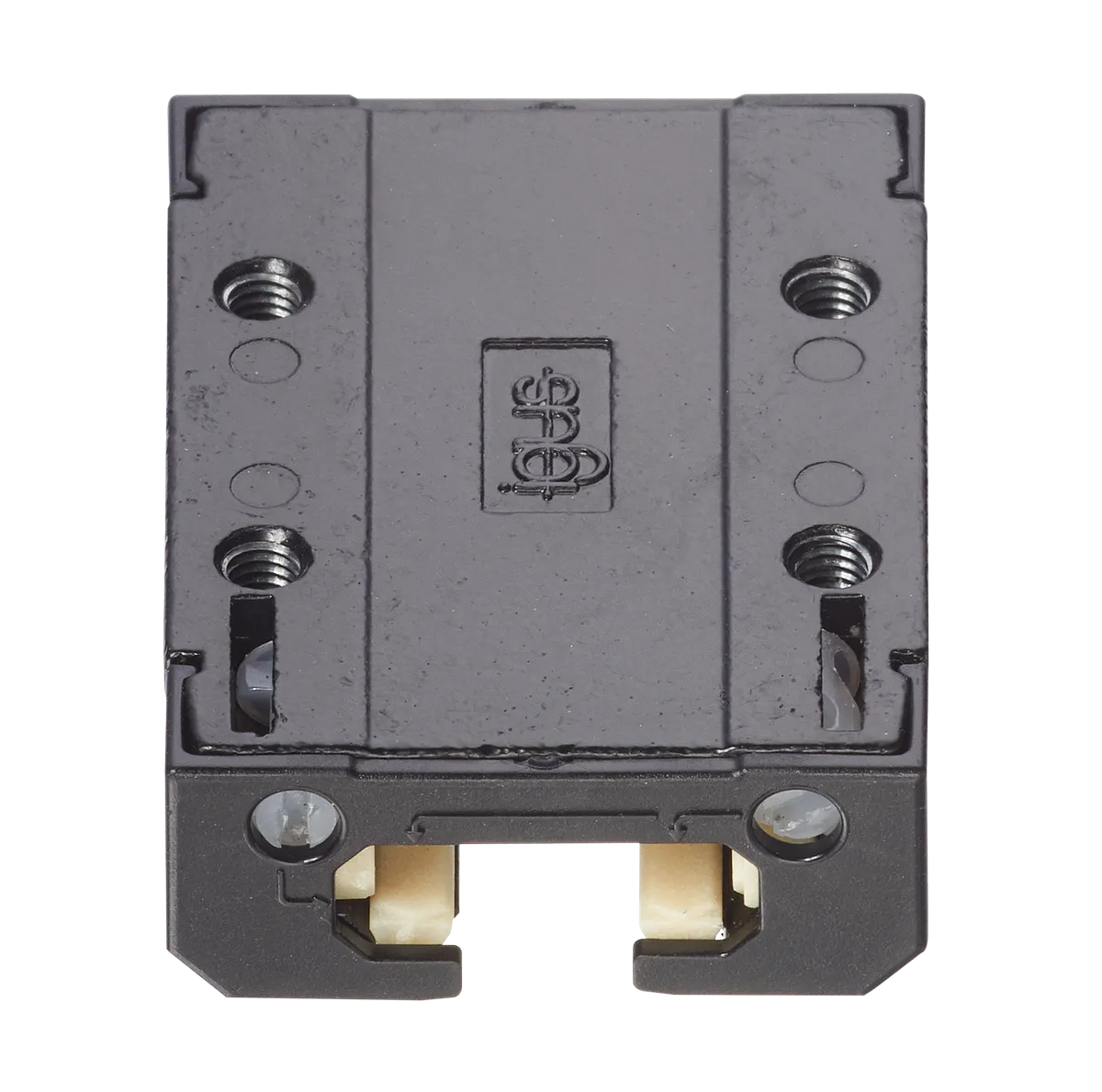

  • drylin T adjustable miniature carriage of the 04 series
  • Robust type

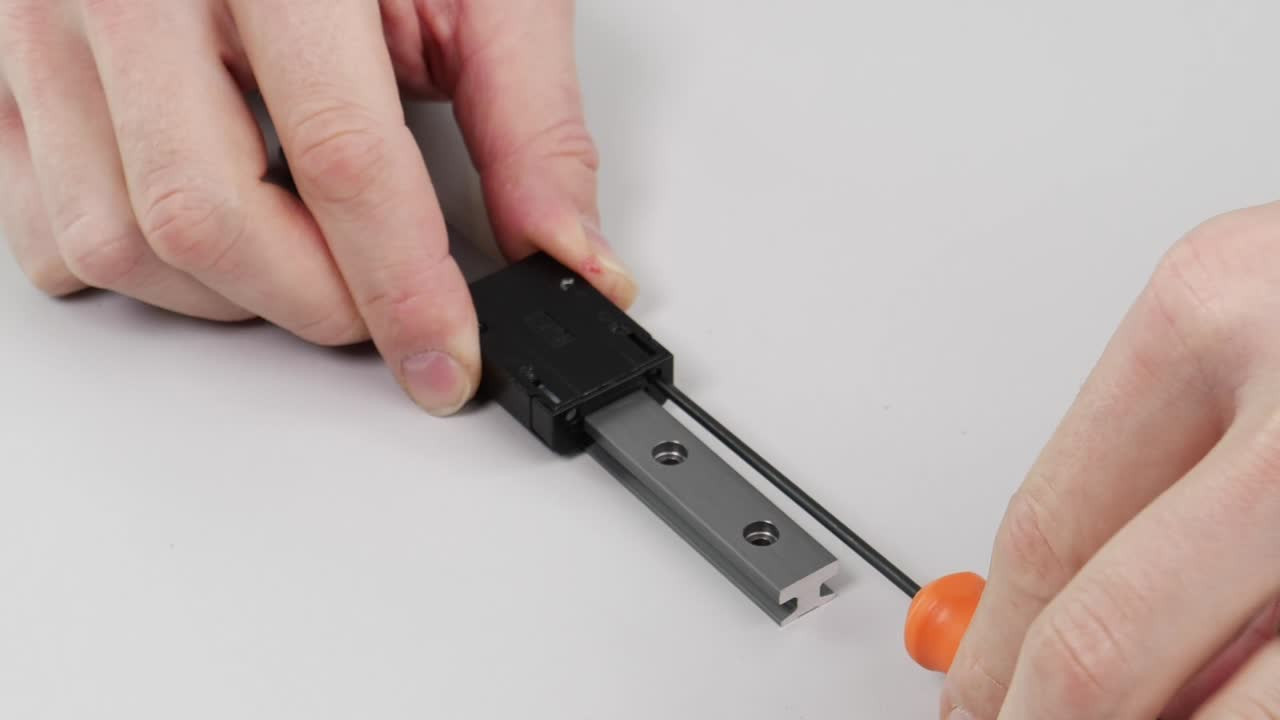

  • With manual clearance adjustment on the carriage
  • High corrosion resistance through cathodic dip coating
  • Material: zinc die-casting housing, iglidur J sliding element
Part No.
size
Floating bearing

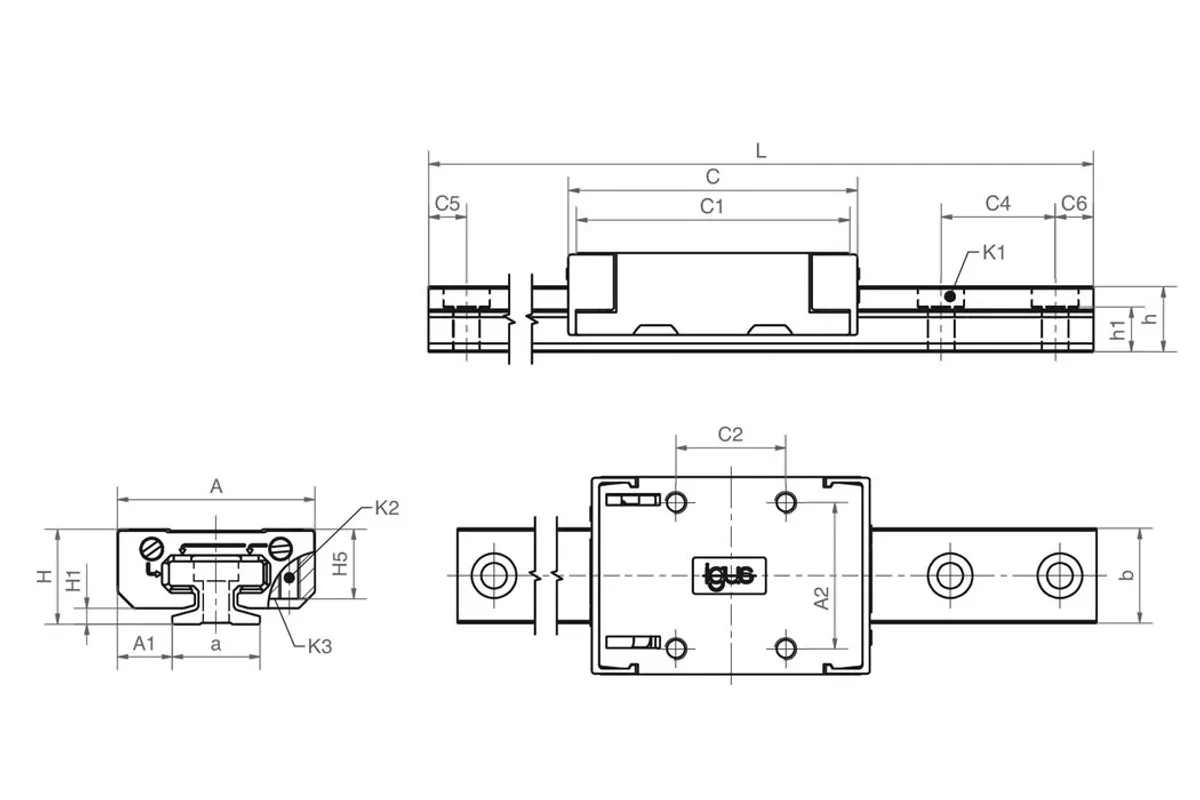

Dimensions
Fold
5aa8b9ed-b78a-4fab-9397-f2399d231539-origin-DRL_PROD_Zg_drylin_TWE_04_DE_1
H [mm]
13 Unfold Fold
A [mm]
27 Unfold Fold
C [mm]
38 Unfold Fold
A1 [mm]
7.5 Unfold Fold
A2 [mm]
20 Unfold Fold
C1 [mm]
36 Unfold Fold
C2 [mm]
15 Unfold Fold
H1 [mm]
2.2 Unfold Fold
H5 [mm]
9.5 Unfold Fold
Thread K2
M3 Unfold Fold
Thread K3
M2 Unfold Fold
Production and installation tolerances
Fold
H-tolerance
±0,2 mm Unfold Fold
A1 tolerance
±0.35mm Unfold Fold
H1 tolerance
±0.35mm Unfold Fold
General properties
Fold
size
04-12 Unfold Fold
Floating bearing
none Unfold Fold
Mechanical properties
Fold
Static load capacity Coy [N]
480 Unfold Fold
