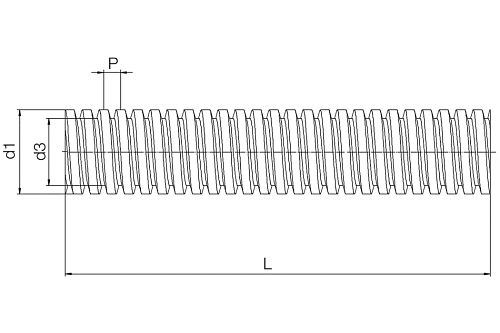

Drawing 01

dryspin trapezoidal lead screw according to DIN 103 7e made of C15 steel | Right-hand thread

Outer diameter: 8-50mmPitch: 1.5-8mmSingle startMaterial: C15 AISI 1015 steelThread direction: right handSelf-locking
Part No.
Thread size
Selection Info
Length[mm]
1000
Dimensions
Fold
d265c8fa-96b1-4bbd-8308-c6e2361771e6-origin-Zg_drylin_SD_TR_EG_C15
Thread size
TR08X1.5 Unfold Fold
Pitch P [mm]
1.5 Unfold Fold
Pitch angle α [°]
3.42 Unfold Fold
Outer diameter ø d1 min. [mm]
7.8 Unfold Fold
Outer diameter Ø d1 max. [mm]
8 Unfold Fold
Core diameter Ø d3 min. [mm]
5.4 Unfold Fold
Core diameter Ø d3 max. [mm]
6.2 Unfold Fold
Max. length [mm]
1000 Unfold Fold
Production and installation tolerances
Fold
Helix deviation
0.1 mm over 300 mm Unfold Fold
Straightness (Standard)
0.3mm to 300mm Unfold Fold
Aligned
<0.1mm to 300mm (can be ordered via configurator) Unfold Fold
Tolerance according DIN 03
7e Unfold Fold
General properties
Fold
Thread direction
Right-hand thread Unfold Fold
Thread type
Trapezoidal threads; absorption of larger axial forces Unfold Fold
