drygear® Apiro | Gearbox with double-sided rotary disc

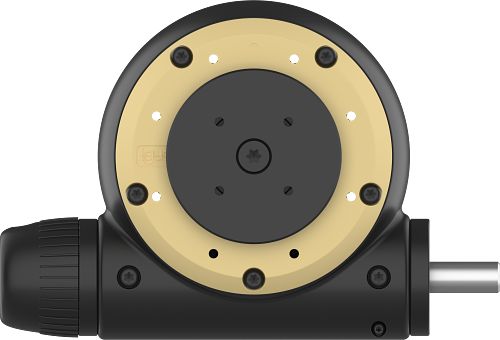

Picture 01
Picture 01

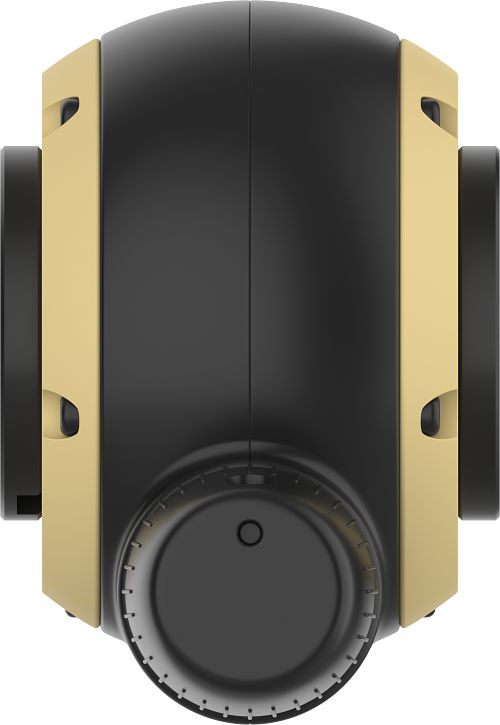

Picture 02

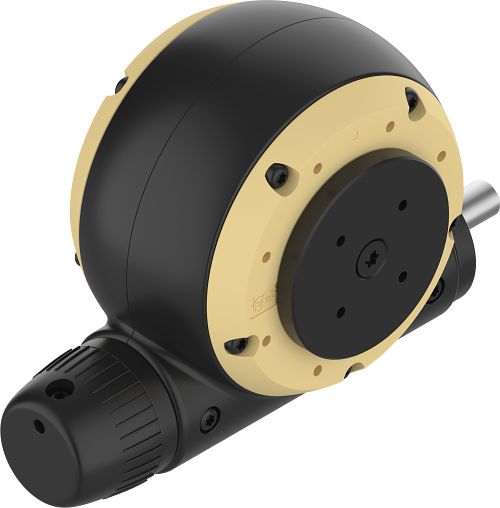

Picture 03

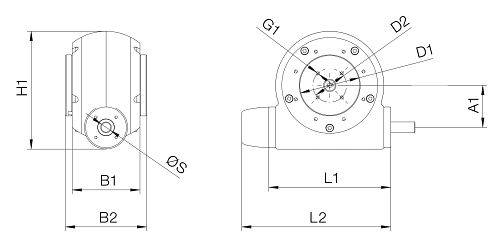

Drawing 01

Product information

  • Available transmissions: 4:1, 8:1, 32:1, 64:1
  • Output torque: 2.5Nm
  • Output: double-sided rotary disc
  • Drive: drive pin/hand wheel
  • INI kit available


The Apiro® modular gearbox system includes a wide selection of optional accessories.

Part No.
Transmission
Dimensions
Fold
924aeab0-fab9-415a-8d9d-ecadf0a9f48c-origin-DRG_TD_RL-A10.0209_1
B1 [mm]
50 Unfold Fold
B3 [mm]
60 Unfold Fold
L1 [mm]
90 Unfold Fold
L2 [mm]
110 Unfold Fold
L3 [mm]
18 Unfold Fold
L4 [mm]
128 Unfold Fold
H1 [mm]
87 Unfold Fold
H2 [mm]
31 Unfold Fold
Ø S [mm]
8 Unfold Fold
W1
8x45° Unfold Fold
W2
4x90° Unfold Fold
W3
4x90° Unfold Fold
W4
4x90° Unfold Fold
S1
M3 Gewinde Unfold Fold
Ø D1 [mm]
8 Unfold Fold
Ø D2 [mm]
30 Unfold Fold
Ø D3 [mm]
54 Unfold Fold
Ø D4 [mm]
25 Unfold Fold
Ø D5
45.25 Unfold Fold
Ø D6
2.4 Unfold Fold
Ø D7 [mm]
2 Unfold Fold
Ø D8 [mm]
21.2 Unfold Fold
Ø D9 [mm]
45 Unfold Fold
Ø D10 [mm]
3 Unfold Fold
General properties
Fold
Weight [g]
280.23 Unfold Fold
Mechanical properties
Fold
Backlash [°]
0.5 Unfold Fold
Rated torque [Nm]
2.5 Unfold Fold
Break torque [Nm]
15 Unfold Fold
Transmission
8:1 Unfold Fold
Rated speed [r/min]
60 Unfold Fold
