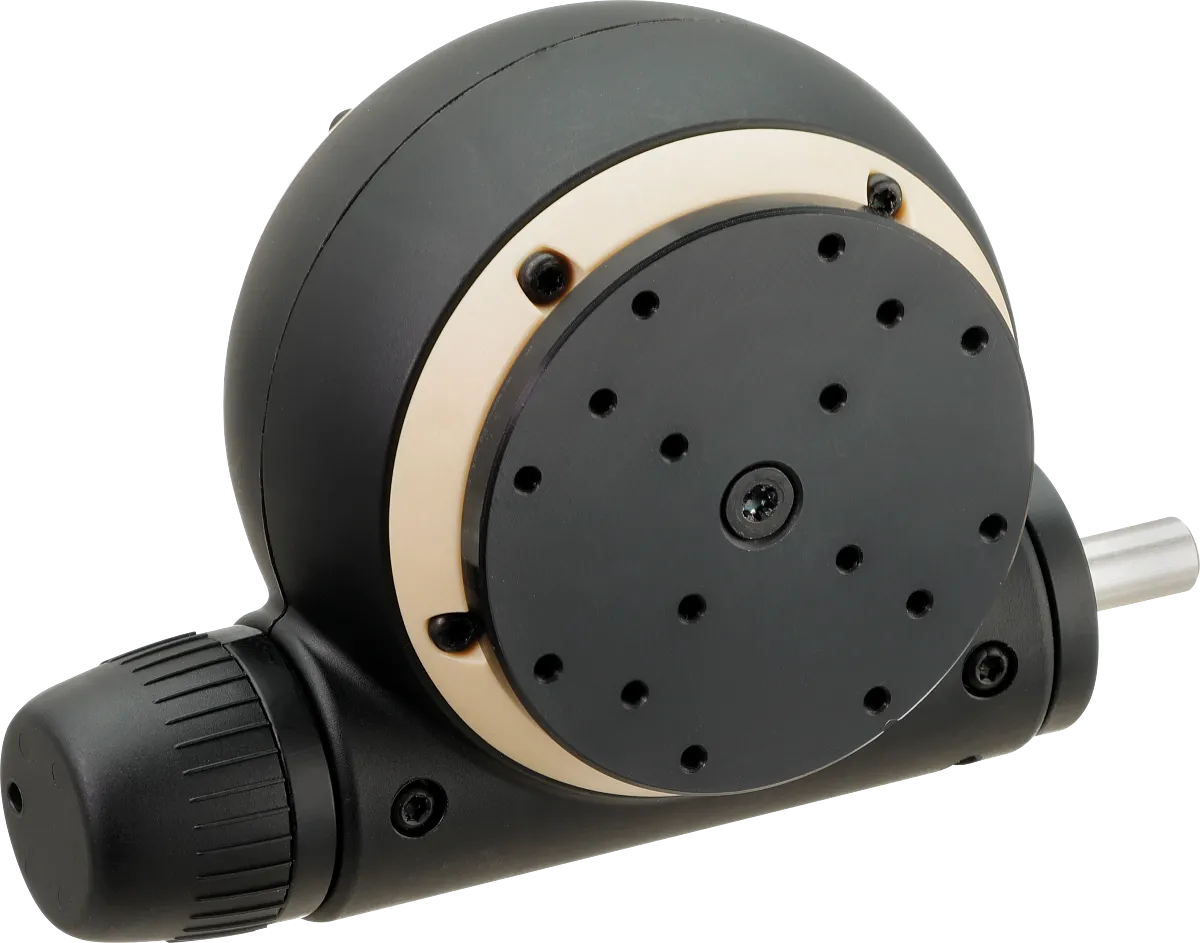

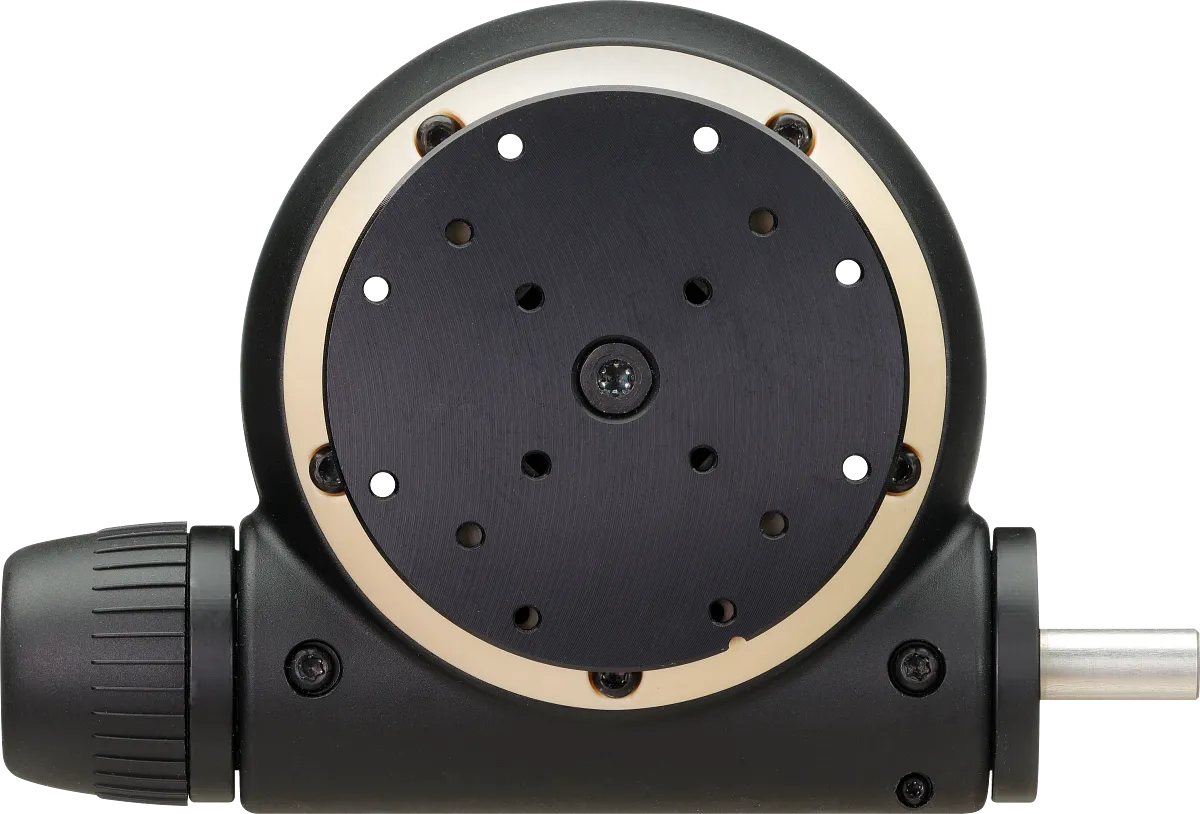

drygear® Apiro gearbox with rotary disc
Product information
- Available transmissions: 4:1, 8:1, 32:1, 64:1
- Output torque: 2.5Nm
- Output: rotary disc
- Drive: drive pin/hand wheel
The Apiro® modular gearbox system includes a wide selection of optional accessories.
Part No.
Transmission
Dimensions
Fold
Axis distance (A1) [mm]
31 Fold
D1 [mm]
45 Fold
D2 [mm]
54 Fold
D3 [mm]
25 Fold
L1 [mm]
90 Fold
L2 [mm]
110 Fold
B1 [mm]
50 Fold
H1 [mm]
87 Fold
Ø T [mm]
8 Fold
Ø S [mm]
8 Fold
Ø D3 [mm]
25 Fold
General properties
Fold
Weight [g]
269.996 Fold
Mechanical properties
Fold
Backlash [°]
0.5 Fold
Rated torque [Nm]
2.5 Fold
Break torque [Nm]
20 Fold
Transmission
32:1 Fold
Rated speed [r/min]
20 Fold
