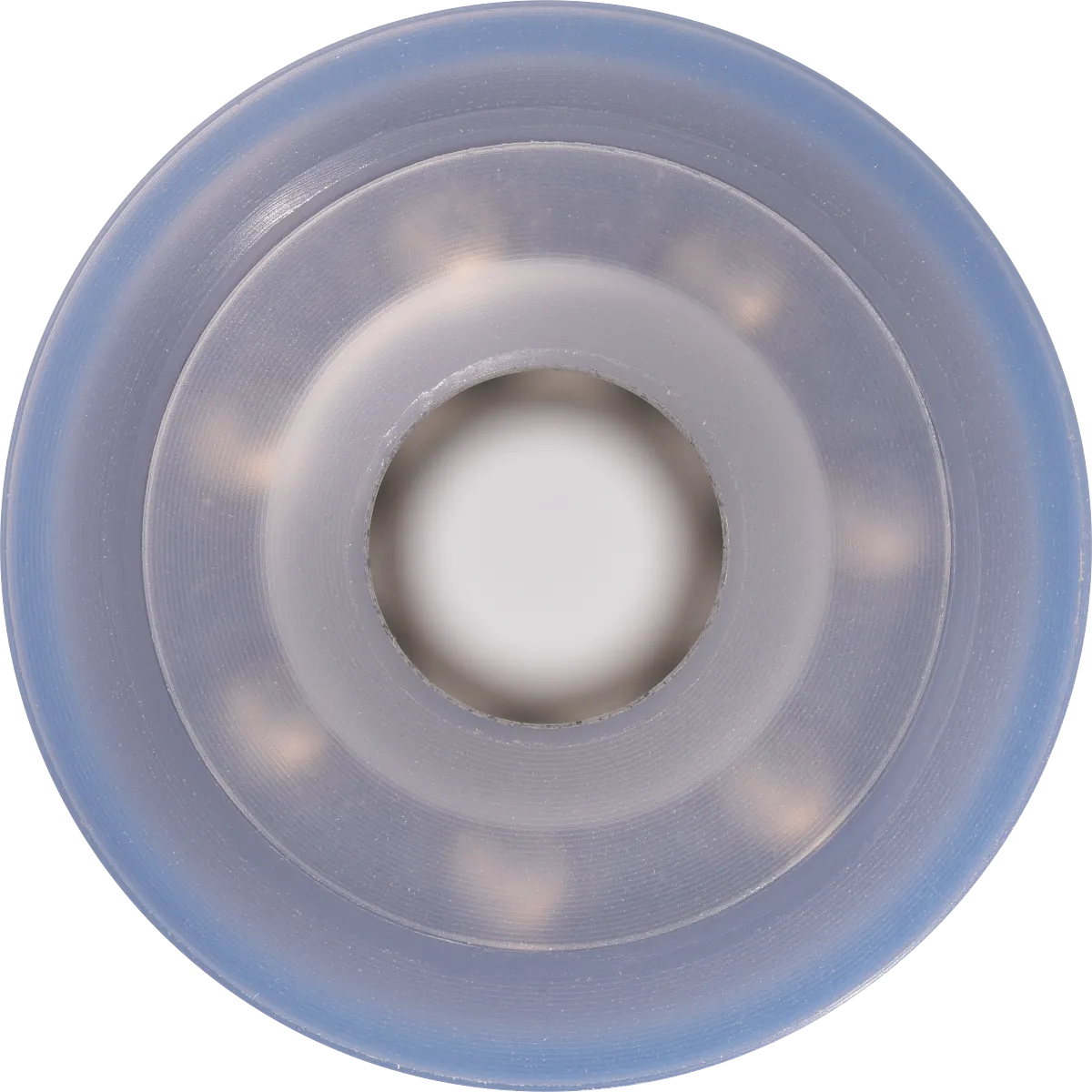

xiros® conveyor roller, PVC tube, for the chemical and semiconductor industry
- Outer Ø: 30, 40 mm
- Extremely resistant to chemicals
- Ideal for transporting batteries or rechargeable batteries
- Length tolerance: ±0.5 mm
Part No.
Ø d1 [mm]
Ø d2 [mm]
size
Dimensions
Fold
Ø d1 [mm]
10 Fold
Ø d2 [mm]
30 Fold
Ø d3 (Flange) [mm]
30 Fold
Length of guide roller
50 - 1,000mm Fold
Tolerance of shaft
h6 Fold
General properties
Fold
Roll material
PVC Fold
Ball material
Glass Fold
Mechanical properties
Fold
Static load capacity [N]
120 Fold
max. speed (rpm)
1700 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
80 Fold
Lower application temperature [°C]
0 Fold
Chemical resistance
Fold
Alcohol
+ resistant Fold
Greases, oils without additives
+ resistant Fold
Hydrocarbons
+ to 0 resistant to conditionally resistant Fold
Fuels
+ to 0 resistant to conditionally resistant Fold
Strong alkalis
+ resistant Fold
Strong acids
+ to 0 resistant to conditionally resistant Fold
Diluted alkalis
+ resistant Fold
Diluted acids
+ resistant Fold
