New drylin linear technology products

• Cost-effective carriages due to zinc die-casting
• High design freedom for loads up to 200N

• 30mm rail width and system height
• Lightweight design: Aluminium rail with zinc die-casting carriage with three polymer rollers - lighter than pure steel systems

• For additional lateral screw-on points on the carriage, rail covers and more

• The complete linear guide is protected inside the profile - invisible, quiet and completely safe from external influences
• Modular: Double bearing housing or pre-assembled carriages
• Ideal for mechanical engineering and automation due to the combination of aluminium modular profile system and linear guide

• Customisable - straight or curved rails and different installation sizes
• Sizes 10-30 and 10-40 - optionally hard anodised, silver or black anodised
• Assembly of monitors and controls in driver's cabs is now even easier

• Impresses with its compact design, extremely lightweight design and very quiet operation
• Carriage consists of the material iglidur JBPF
• PTFE-free and PFAS-tested

• PTFE-free and PFAS-tested
• Access system for hybrid roller guide, compatible with rail installation size 1030
• 100% lubrication and maintenance-free

• Developed for extreme conditions: lubrication-free, hygienic, compact
• Reliable despite environmental factors
• Can be used as a linear guide on stainless-steel rails and in lead screw modules

• World's first EHEDG-certified linear guide and sets new standards in hygiene and food safety
• The carriage made of iglidur A160 is PTFE-free and PFAS-tested

• New version of the bestseller WS1040
• Up to 30% lower weight with the same stability
• First linear profile with up to 80% recycling rate and up to 80% reduced CO2 footprint

• Now lighter, easier to install and more sustainable
• Axial channels (M5) allow quick, clean and secure fastening.
• Compatible with all carriages, plain bearings and hybrid roller bearings in the drylin W series 10

• The new version now makes the bestseller even better in three respects: weight, ease of assembly and sustainability
• Compatible with all carriages, plain bearings and hybrid roller bearings in the drylin W series 10

• Combines two polymer rollers in a compact bearing housing
• The system is available with plain or ball bearings
• Cost savings of up to 65% thanks to zinc die-casting housing, without compromising on stability or precision

• 40% lighter and more economical
• More economical to manufacture thanks to clear anodised surface

• Black anodised for the first time

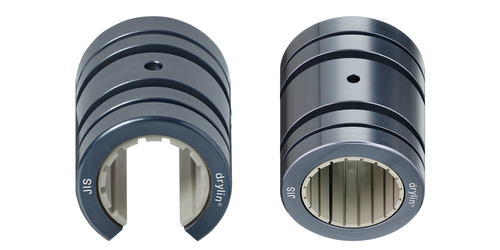

• In combination with RJMO or RJ4JP plain bearings, the lightest round shaft guide in installation size 30 is created

• Dimensionally stable at temperatures from -40°C to +250°C with reliable sliding properties
• Use for small installation spaces

drylin W hygienic design carriages offer as little space as possible for bacteria and viruses. Thanks to consistent compliance with the EHEDG production guidelines, the linear carriages can be rinsed without any problems; there are no dead spaces and bevels and radii prevent dirt particles and germs from adhering.

In addition to our new installation size, we are optimising our modular system. The new drylin W rail for the Zone 1 splash area is a version of the stainless-steel profiles with bolted support elements.

Narrow drylin W linear plain bearings can be installed on the inside of the housing. The design of the linear system saves up to 25% in width. When assembled on 80mm wide aluminium construction profiles, the system does not protrude a millimetre to the side.

The compact drylin W carriage is also available in an aluminium version. The carriage is available in three carriage lengths (60/80/100mm) and is 100% lubrication-free.

The carriage has an anti-reflect coating, which ensures improved visibility and less glare. The system provides a flush finish that is almost invisible in automation cells. The discreet look reduces the risk of collisions.

The new WS-06-70 rail width offers designers a high degree of design flexibility, as it is ideally suited to standard aluminium construction profiles with a width of 80mm. Low-profile design, discreet appearance, fast connection plus the diversity of the drylin W linear modular system for all desired functions.

The new rail width in installation size 06-70 is also available with an anti-reflect coating. These are particularly suitable for small installation spaces. We fulfil the customer's wish for greater compatibility with standard 80mm construction profiles. For simple installation to realise automation tasks.

Curved rail profiles are a major challenge in small installation spaces. Less space means tighter bend radii for the rail profiles and even more flexible adaptation of the linear carriages to the curve profiles. Thanks to the new double rails in installation size 06, round and ergonomic adjustments are now also possible for smaller installation spaces.

The new cam guides in installation size 06 are available as a semi-circle. For cornering, you can achieve tight radii of up to 100mm thanks to the carriage's flexible three-point bearing. Particularly in the case of ergonomic requirements, e.g. guiding monitors and control elements in a radius to ensure easy and safe accessibility.

drylin W hybrid roller bearings are very often used for manual adjustments, as they combine the smooth running of polymer rollers with robust plain bearing technology for absorbing lateral forces. All that without a drop of lubrication in the system.

The drylin W Slim Line linear housings are available individually for assembly into an individual carriage, extremely lightweight made of aluminium with internal mounting holes.

Slim drylin W linear plain bearings can be mounted on the inside of the housing. The design of the linear system saves up to 15% of overall width. When installed on aluminium construction profiles that are 80mm wide, the system does not even protrude a millimetre to the side.

The WWH roller carriage combines four WJRM-71 bearings with a robust, corrosion-free aluminium plate. Possible areas of application are, e.g. seat adjusters or steps that are not loaded when moving but have to bear a heavy load when stationary.

Save up to 50% costs by manufacturing the linear housing using the zinc die-casting process. The pillow block can be replaced on the rail without dismantling. Existing carriages in installation size 10 can be retrofitted at any time.

Flexible components enable simple assembly and integration - including robust housings, pre-assembled carriages and the compact T415 miniature carriage for fast installation. Maximum performance and service life, sustainably realised.

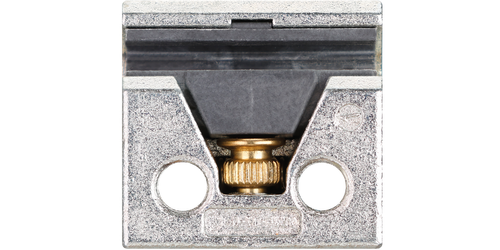

The drylin W single bearing WJ200UM-01 with pretension in size 25 offers an innovative solution for precise and strong positioning tasks in the field of linear technology. Thanks to its reliable design, the bearing remains firmly in place after adjustment - without any additional clamping.

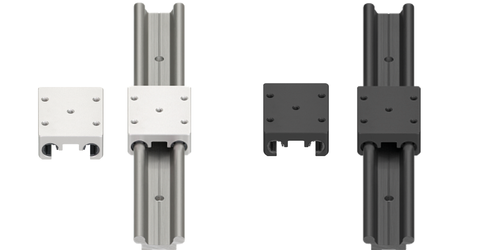

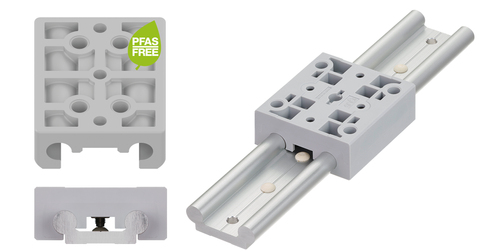

The drylin W linear guide in installation size 06 is the smallest solution in the drylin® W modular system - developed for applications with minimal installation space and maximum design freedom. Whether in medical technology, laboratory automation or the food industry: the compact miniature guide impresses with its versatility and simple integration.

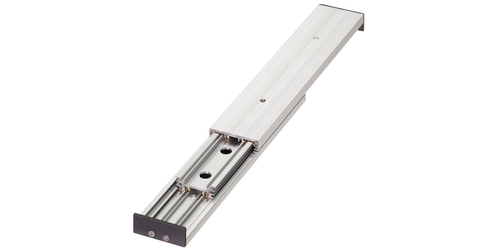

The new drylin® NT-60-DS has been specially developed for applications where high loads, maximum stiffness and maintenance-free operation are required - and all this with a low dead weight. High load-bearing capacity thanks to anodised aluminium profiles, easy, quiet sliding with iglidur® high-performance polymer gliders. Infinitely extendable - up to 2,000mm total length, with full, partial and over-extension possible.

The NT telescopic rails in size 60 allow infinitely variable extension in both directions, from 200mm to 1,000mm in each direction. They are available as full-extension or partial-extension, and a combination of both variants is also possible. With a compact design that is 60mm wide and 24mm high, they are extremely versatile.
