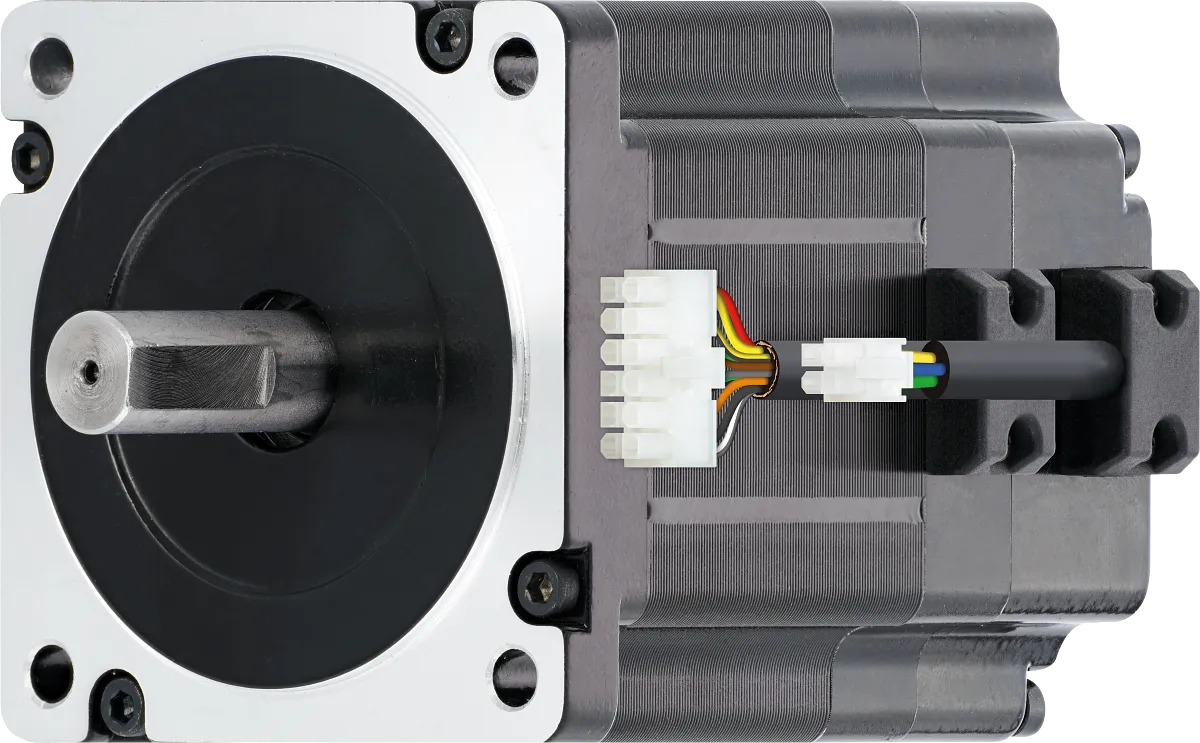

drylin BLDC brushless motor with Hall and encoder, NEMA 34
- Installation size: NEMA 34/flange dimension 86mm
- Protection class: IP40
- Rated torque: 1.00Nm
- Nominal voltage: 48V DC

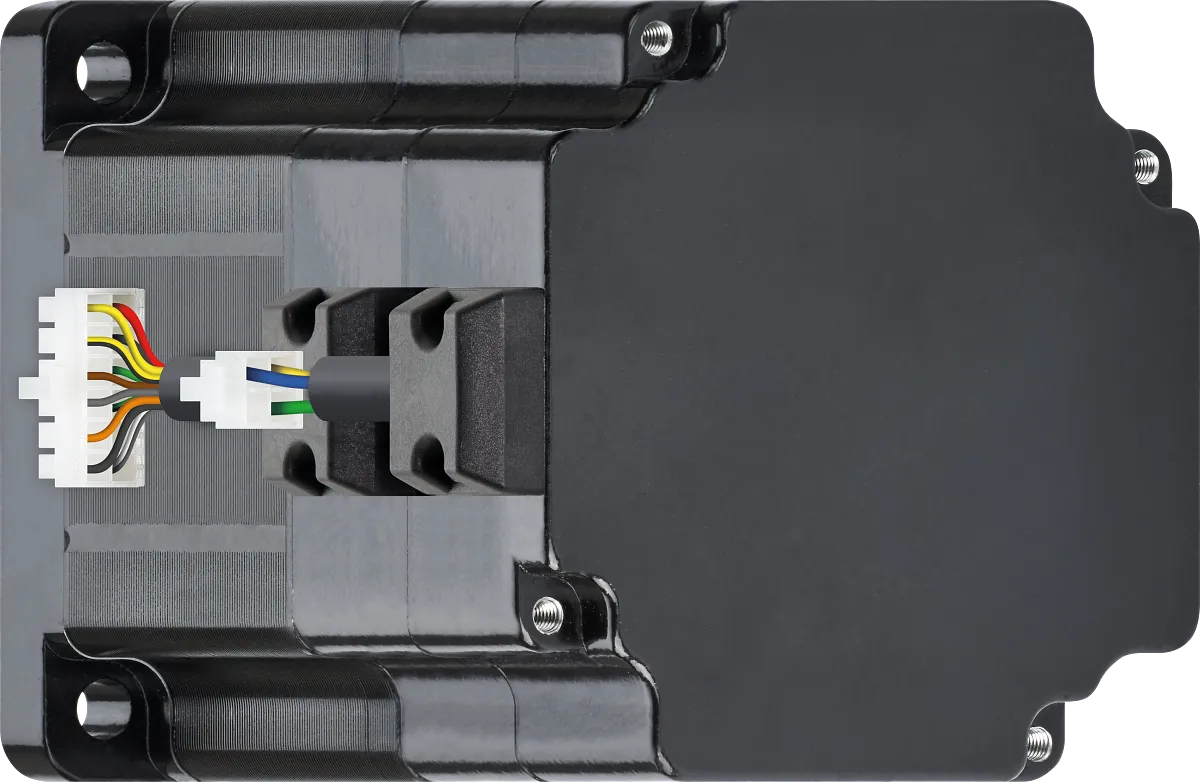

- Motor connections: Molex connector, encoder with Molex
Part No.
Dimensions
Fold
L1 [mm]
35 Fold
L2 [mm]
110.5 Fold
Ø D1 [mm]
14 Fold
Ø D2 [mm]
73 Fold
B1 [mm]
86 Fold
B2 [mm]
69.6 Fold
B3 [mm]
9 Fold
General properties
Fold
IP rating
IP40 Fold
Motors installation size
flange dimension 86 mm / NEMA34 Fold
CE
EMV guideline Fold
Weight [g]
2500 Fold
Mechanical properties
Fold

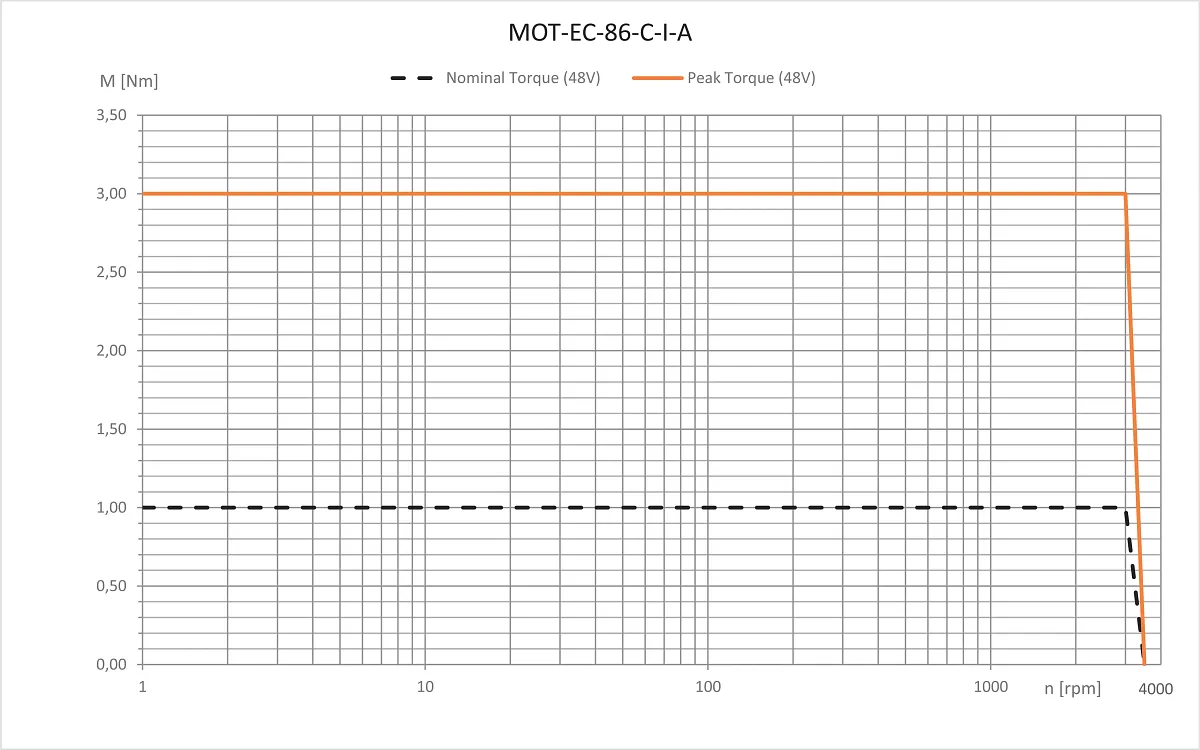

Rated torque [Nm]
1 Fold
