readycable® servo cable suitable for Sigmatek iM101B-10-1-xxx-0-00, basic cable, PVC 10xd

Certificates and standards (icons)

USP

For medium-duty applications
PVC outer jacket
Shielded
Oil-resistant
Flame retardant

Guarantee up to 4 years

Part No.

MAT9752901

General properties

Fold

Base article

CF210.UL.15.15.02.01 Unfold Fold

Manufacturer Part No

M101B-10-1-xxx-0-00 Unfold Fold

Dimensions

Fold

Outer diameter (d) max. [mm]

12.5 Unfold Fold

Number of cores and conductor nominal cross-section

(4G1.5+(2x1.5)C)C Unfold Fold

Weights

Fold

Weight per km [kg/km]

245 Unfold Fold

Technical data

Fold

Copper index kg/km [kg/km]

154 Unfold Fold

Dynamic information

Fold

a max. (acceleration) [m/s²]

50 Unfold Fold

v max. gliding (speed) [m/s]

2 Unfold Fold

v max. unsupported (speed) [m/s]

10 Unfold Fold

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305) Unfold Fold

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504) Unfold Fold

Temperature e-chain®

+5°C up to +70°C Unfold Fold

Min. bend radius, fixed (factor) [x d]

5 Unfold Fold

Min. bend radius, flexible (factor) [x d]

8 Unfold Fold

Min. bend radius, e-chain [mm]

125 Unfold Fold

Min. bend radius, e-chain (factor) [x d]

10 Unfold Fold

Electrical information

Fold

UL Voltage Rating [V]

1000 Unfold Fold

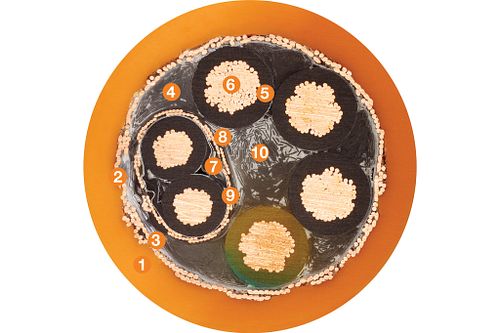

Cable structure

Fold

Outer jacket colour

Pastel orange (comparable to RAL 2003) Unfold Fold

Outer jacket

Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1). Unfold Fold

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical Unfold Fold

Element shield

Flexible braiding made of tinned copper wires. Unfold Fold

Core group 2 core structure

(2x1.5)C)C Unfold Fold

Core group 1 core structure

4G1.5 Unfold Fold

Core stranding

Power cores and control pair elements wound with a short pitch length around a high tensile strength centre element. Unfold Fold

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228). Unfold Fold

Properties and approvals

Fold

CE

According to 2014/35/EU Unfold Fold

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III) Unfold Fold

NFPA

According to NFPA 79-2018, chapter 12.9 Unfold Fold

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992) Unfold Fold

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame Unfold Fold

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2 Unfold Fold

UV resistance

Medium Unfold Fold
