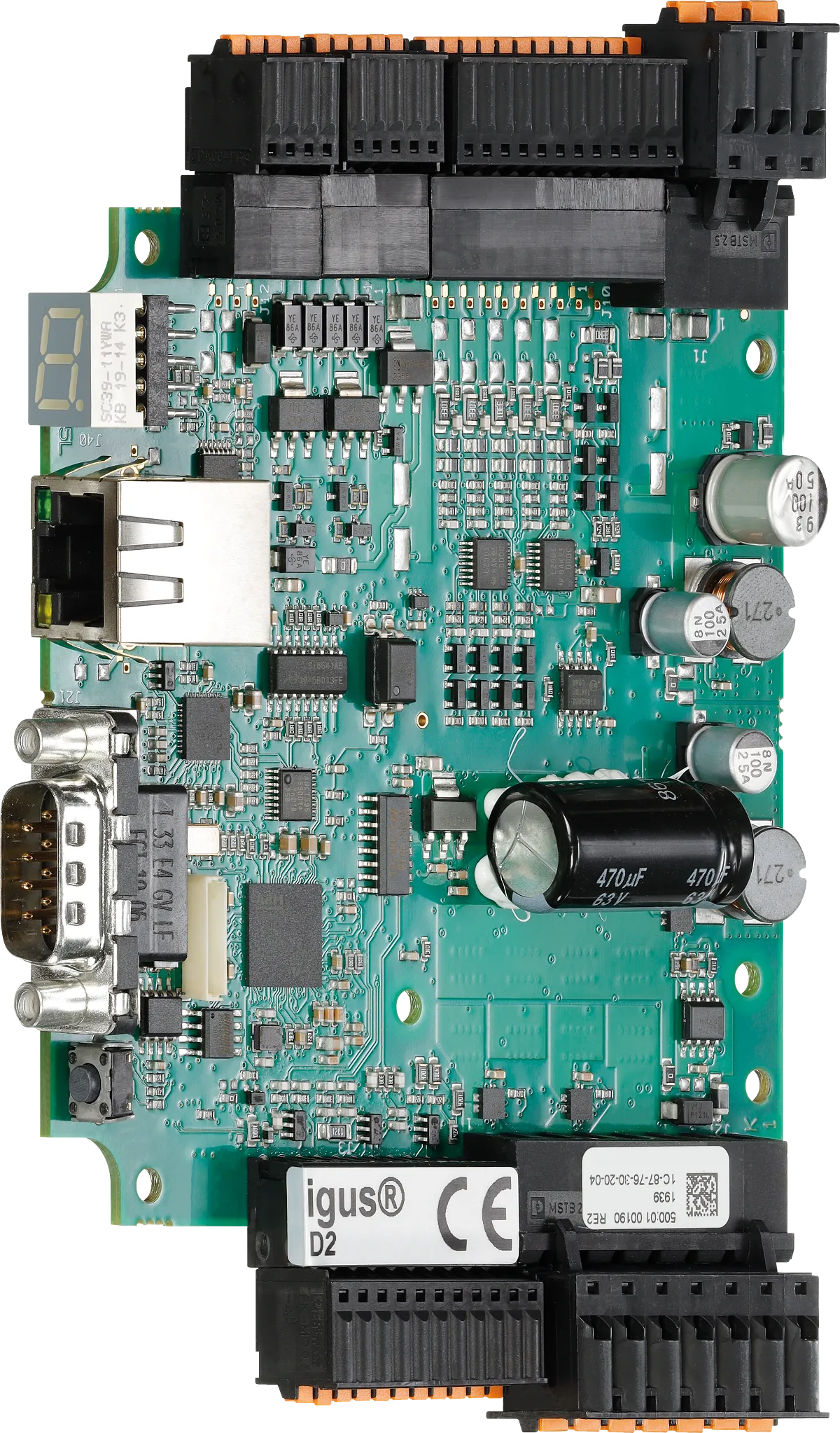

drylin® D2 motor control system for stepper, DC and EC/BLDC motors
- NEW: With PROFINET/PROFIdrive: more performance for the same price due to free extension
- For single axes, line, flat, linear and room linear robots and delta robots
- No software installation or app required
- Use with PC, tablet or smart phone
- Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
- Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway), PROFINET/PROFIdrive for connection to master control systems such as Siemens or Beckhoff
- Matching sample programs
- You can find all the information that is congruent with the D1 dryve, incl. PROFINET/PROFIdrive, in the download area of the D1 dryve.
Part No.
Technical data
Fold
Motor type
For stepper motors,for DC motors,for EC/BLDC motors Fold
Motor type
Two-phase stepper motor bipolar (ST), direct current motor (DC),
electronically commutated motor (EC) Fold
electronically commutated motor (EC) Fold
Weights
Fold
Weight [g]
185.2 Fold
General properties
Fold
Brand name
drylin Fold
Air humidity (non condensing) [%]
90 Fold
Maximum temperature of the power unit [°C]
100 Fold
Properties and approvals
Fold
CE
EN 61000-6-2:2005, EN 61000-6-3:2007 Fold
