triflex® R Series TRLF
Light versionwith snap lock mechanismQuick to fillBend radius R: 100-182mm
Part No.
Bend radius [R] [mm]
Connecting principle
Max. cable diameter (d1) [mm]
Inner height [Hi]
65 mm
Max. cable diameter
22 mm
Opening principle
Can be opened along the inner and outer radius
Selection Info
Purchase method
Assembled PartsFully assembled chain (Including the separators)
Installation type
unsupported
Dimensions
Fold
Size index
65 Fold
Bend radius [R] [mm]
100 Fold
Chain links per metre
44 Fold
Pitch [mm]
23.1 Fold

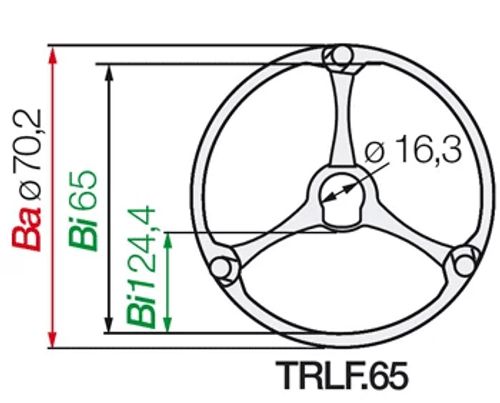

Bi inner height chamber 1 [mm]
24.4 Fold
Outer width [Ba] [mm]
70.2 Fold
Inner width [Bi] [mm]
65 Fold

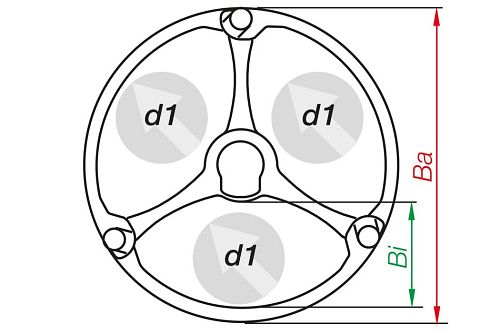

Max. cable diameter (d1) [mm]
22 Fold
Max. cable diameter (d2) [mm]
0 Fold
General properties
Fold
Application area
For multi-axis movements Fold
Energy chain system
triflex® R TRL Fold
Shipping weight (kg or kg/m)
0.79 Fold
