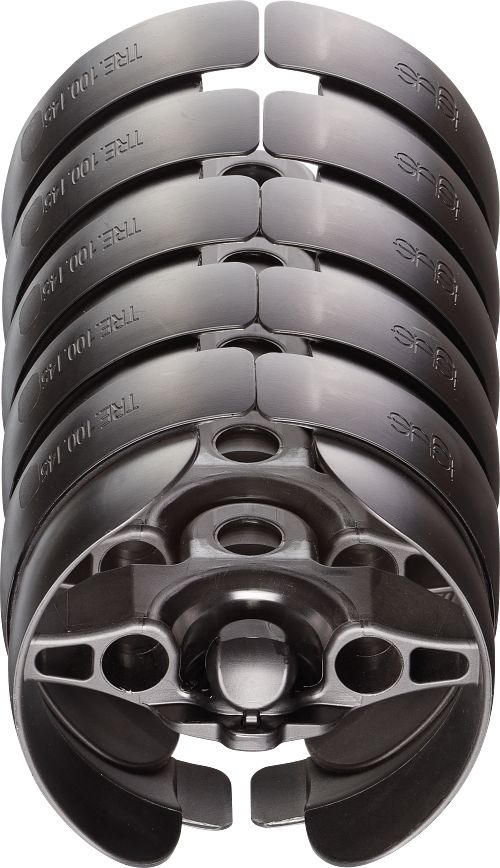

triflex® R Series TRE
Very easy to fillHigh torsion resistanceEasy to lengthen and shortenB-version offers 4 x higher torsion forcesC-version 50% higher tensile forcesBend radius R from 50 to 182mm
Part No.
Bend radius [R] [mm]
Connecting principle
Max. cable diameter (d1) [mm]
Inner height [Hi]
30.5 mm
Max. cable diameter
10 mm
Opening principle
Can be opened along the inner and outer radius
Selection Info
Purchase method
Assembled PartsFully assembled chain (Including the separators)
Installation type
unsupported

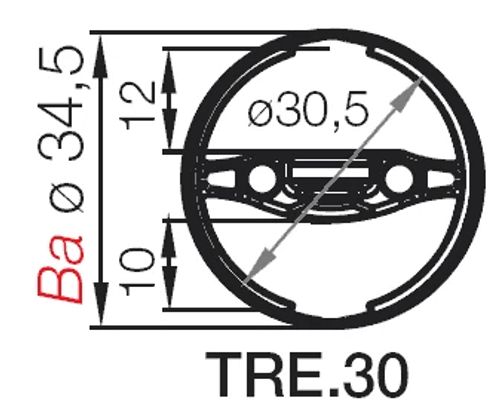

Dimensions
Fold
Size index
30 Fold
Bend radius [R] [mm]
50 Fold
Chain links per metre
89 Fold
Pitch [mm]
11.3 Fold
Bi inner height chamber 1 [mm]
12 Fold
Bi inner height Chamber 2 [mm]
10 Fold
Outer width [Ba] [mm]
34.5 Fold
Inner width [Bi] [mm]
30.5 Fold
Max. cable diameter (d1) [mm]
10 Fold
Max. cable diameter (d2) [mm]
8 Fold
General properties
Fold
Application area
For multi-axis movements Fold
Energy chain system
triflex® R TRE Fold
Shipping weight (kg or kg/m)
0.26 Fold
