Enclosed energy chain series R2i.40 | Can be opened along the inner radius from both sides (left and right) | Inner height: 40mm
Inner height hi: 40mmInner width Bi: 50-200mmBend radius R: 80-250mmPitch: 48mmCables are protected from swarfEasy to fill, lid can be opened from both sides (left and right) in the outer radiusLow noise operation due to integrated brakeLarge inner height and therefore cost-effective
Part No.
Inner width [Bi] [mm]
Bend radius [R] [mm]
Inner height [Hi]
40 mm
Max. cable diameter
36 mm
Opening principle
Openable along inner radius
Selection Info
Purchase method
Assembled PartsFully assembled chain (Including the separators)
Installation type
unsupported
Bracket
KMA, both ends pivotingR2.400.050.34.A
Bracket Type
without tiewrap plates
Mounting variant
A3

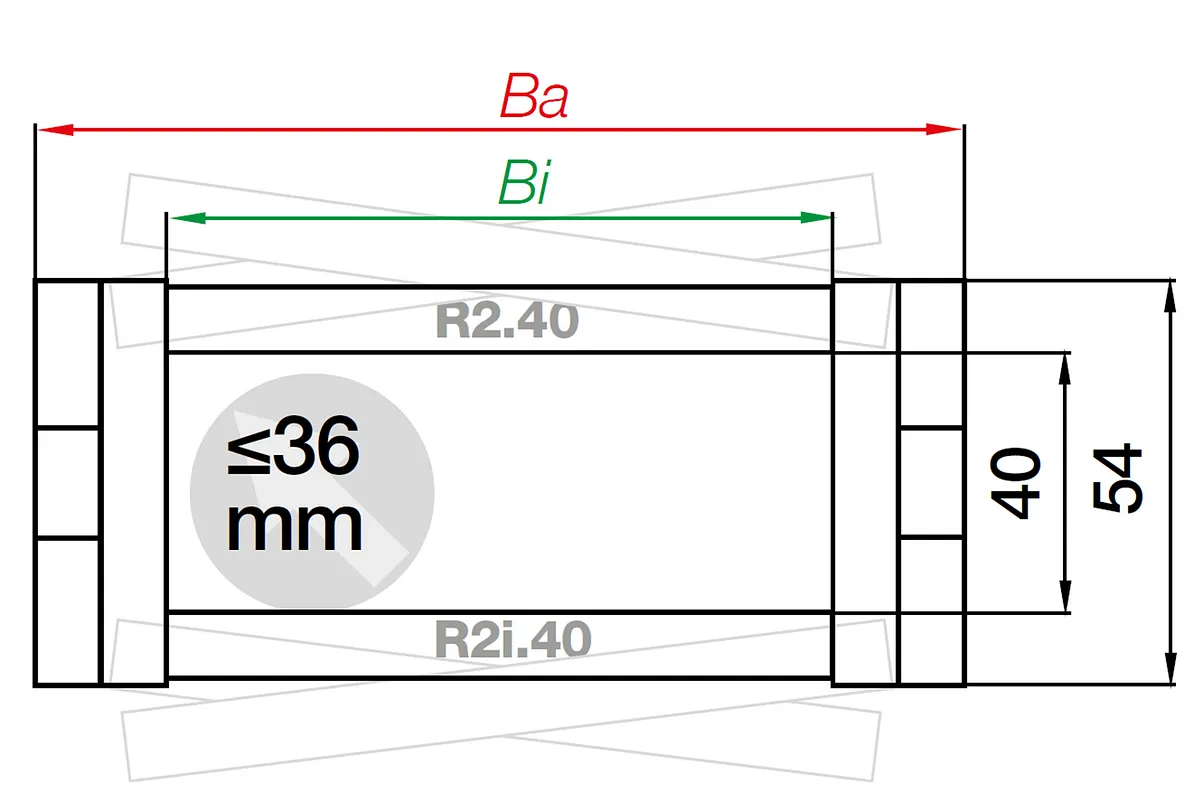

Dimensions
Fold
Inner height [Hi] [mm]
40 Fold
Inner width [Bi] [mm]
50 Fold
Outer height Ha [mm]
54 Fold
Outer width [Ba] [mm]
66.2 Fold
Bend radius [R] [mm]
80 Fold
Pitch [mm]
48 Fold
Chain links per metre
21 Fold
Max. cable diameter [mm]
36 Fold
H [mm]
214 Fold
D [mm]
179 Fold
K [mm]
350 Fold
DeltaHF [mm]
40 Fold
Velocity FLG unsupported max. [m/s]
10 Fold
Acceleration FLG max. [m/s²]
100 Fold
Maximum unsupported length [m]
2.75 Fold
General properties
Fold
Opening principle
Openable along inner radius Fold
maximum fill weight [kg/m]
8 Fold
Colour
black Fold
Energy chain system
R2.1 Fold
Shipping weight (kg or kg/m)
1.25328 Fold
CO2 equivalent per piece [kg]
0.3611 Fold
Temperature e-chain min. [°C]
-40 Fold
Temperature e-chain max. [°C]
120 Fold
Dynamic information
Fold
v max. unsupported (speed) [m/s]
10 Fold
Additional information and diagrams
Fold
The unsupported length versus fill weight X axis: Unsupported length in m FLB/FLG Y axis: Fill weight in kg/m Lower scale: Travel S in m FLB = Unsupported with permitted sag FLG = Unsupported with straight upper run
A=moving end, B=fixed end
Pitch: 48 mm
Chain links per m: 21
Travel: S
Tube length = S/2 + K
