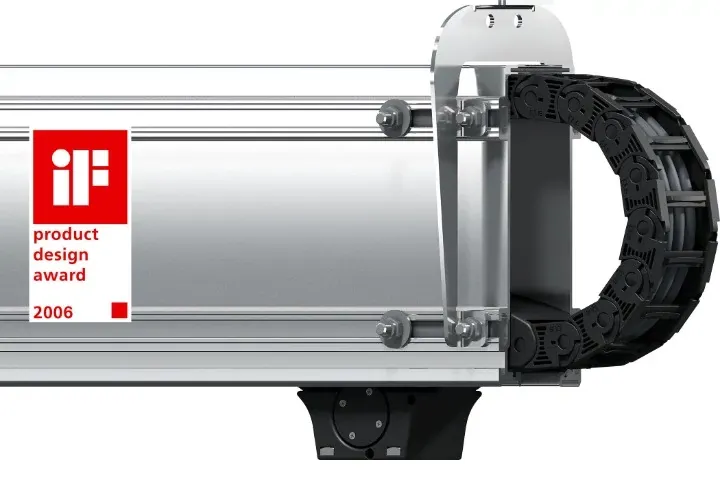

micro flizz® - the alternative to the busbar system | total length:1 m - 10m
1 complete set consists of:
+ energy chain
+ guide carriage
+ guide channel
- Easy to clean
- No particle pollution due to abrasion
- Quiet, lubrication-free, and easy to install
- Operating speeds of up to 6 m/s in high-acceleration applications
- Data rates up to 10 Gbit/s. Safely guides FOC and bus cables
- Low space requirement
Part No.
Max. cable diameter [mm]
Length trough system [mm]
Version
Dimensions
Fold
Inner height [Hi] [mm]
11 Fold
Outer height Ha [mm]
17 Fold
Inner width [Bi] [mm]
10 Fold
Bend radius [R] [mm]
18 Fold
Trough height [mm]
75.5 Fold
Trough outer width [BRa] [mm]
29.5 Fold
Length trough system [mm]
5000 Fold
Travel [mm]
4700 Fold
Complete system height [C] [mm]
108.48 Fold
Max. cable diameter [mm]
8 Fold
General properties
Fold
Version
End infeed with 1 carriage Fold
Shipping weight (kg or kg/m)
8.7993 Fold
