Pillow block bearing, KSTI, igubal®
- Dimensional series: K following DIN ISO 12240
- Housing material: igumid G
- Material of spherical ball: iglidur® W300
- Maintenance-free dry operation
- High rigidity
- Very high durability in varying loads
- Compensation of misalignment and edge loads
- Resistant to corrosion and chemicals
- High vibration-dampening
- Suitable for rotating, oscillating and linear movements
- Very lightweight
- Time saving through fast assembly
Part No.
Shaft diameter [in]

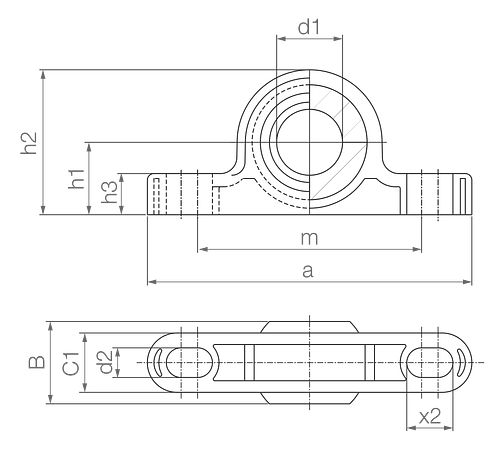

Dimensions
Fold
m [in]
1 Fold
a [in]
1.4 Fold
Shaft diameter [in]
0.19 Fold
h1 [in]
0.29 Fold
h2 [in]
0.566 Fold
h3 [in]
0.165 Fold
C1 [in]
0.234 Fold
B [in]
0.312 Fold
Production and installation tolerances
Fold
Installation tolerance d1
E10 Fold
Recommended shaft tolerance
h9 Fold
Recommended shaft roughness
0.4-0.5 μm Fold
General properties
Fold
Spherical ball material
iglidur® W300 Fold
Dimensional series
K, according to DIN ISO 12240 Fold
Max. pivot angle (α) [°]
25 Fold
Mechanical properties
Fold
Max. static radial tensile stress, short-term [N]
550 Fold
Max. static radial tensile stress, long-term [N]
275 Fold
Max. axial static load, short-term [N]
300 Fold
Max. axial static load, long-term [N]
150 Fold
Max. pivot angle (α) [°]
25 Fold
Maximum tightening torque, fastening [Nm]
0.6 Fold
