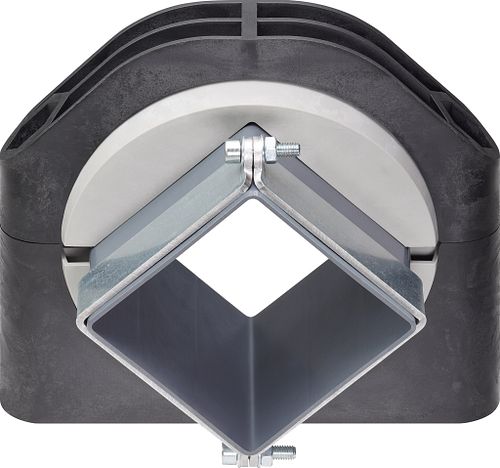

Split pillow block bearing for square profiles, ESQM, igubal®
- For square profiles

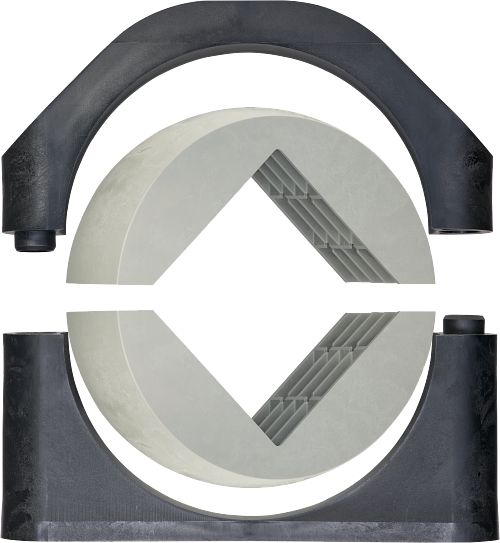

- Split version of housing and spherical ball
- Easy assembly and disassembly
- High loads
- Lightweight
- Compensation of misalignment
- Quick assembly saves time
Part No.
q [mm]

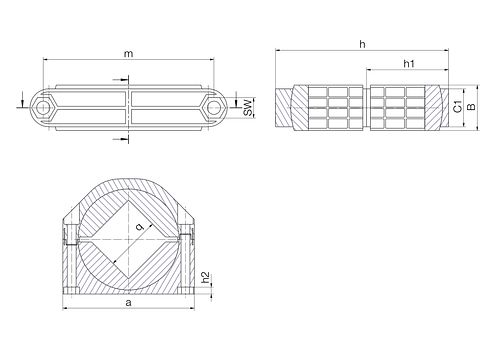

Dimensions
Fold
h [mm]
228 Fold
m [mm]
225 Fold
a [mm]
260 Fold
h1 [mm]
228 Fold
h2 [mm]
15 Fold
C1 [mm]
50 Fold
B [mm]
60 Fold
d2
17.5 Fold
q [mm]
125 Fold
General properties
Fold
Dimensional series
E, according to DIN ISO 12240 Fold
