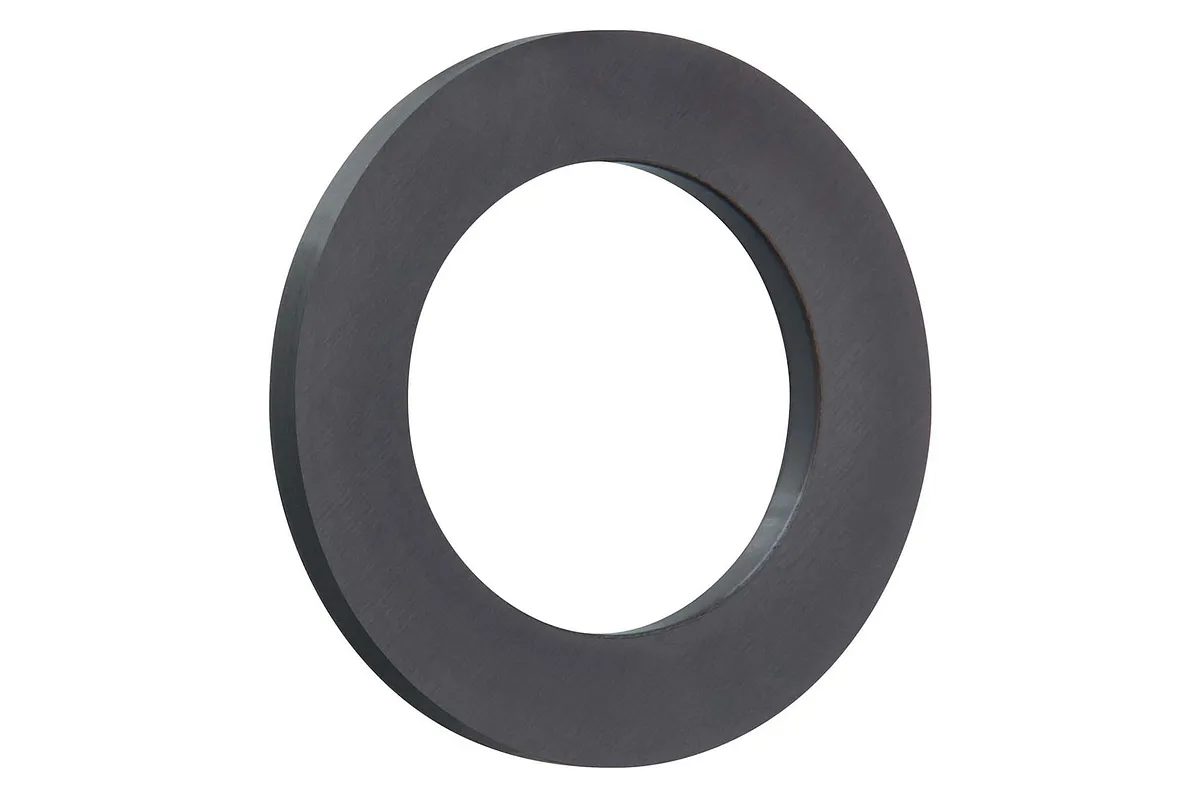

iglidur® M250, thrust washer, imperial - M250TI
- Robust all-rounder material
- Excellent vibration dampening
- Resistant to edge pressure
- High impact resistance
Part No.
Shaft diameter [in]
Thickness s [in]
Dimensions
Fold
Shaft diameter [in]
0.25 Fold
Ø d2 [in]
0.6201 Fold
Thickness s [in]
0.09 Fold
Production and installation tolerances
Fold
s tolerance
-0,0056 inch Fold
Mechanical properties
Fold
Maximum surface speed, oscillating, short-term [m/s]
1.4 Fold
Maximum surface speed, rotating, continuous [m/s]
0.8 Fold
Maximum surface speed, rotating, short-term [m/s]
2 Fold
Maximum surface speed, oscillating, continuous [m/s]
0.6 Fold
Maximum surface speed, linear, continuous [m/s]
2.5 Fold
Maximum surface speed, linear, short-term [m/s]
5 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
RoHS 2 compliant according to EU guideline 2011/65/EU
