drylin® D9-(X) stepper motor output stage (NEMA34)

Picture 01
Picture 01

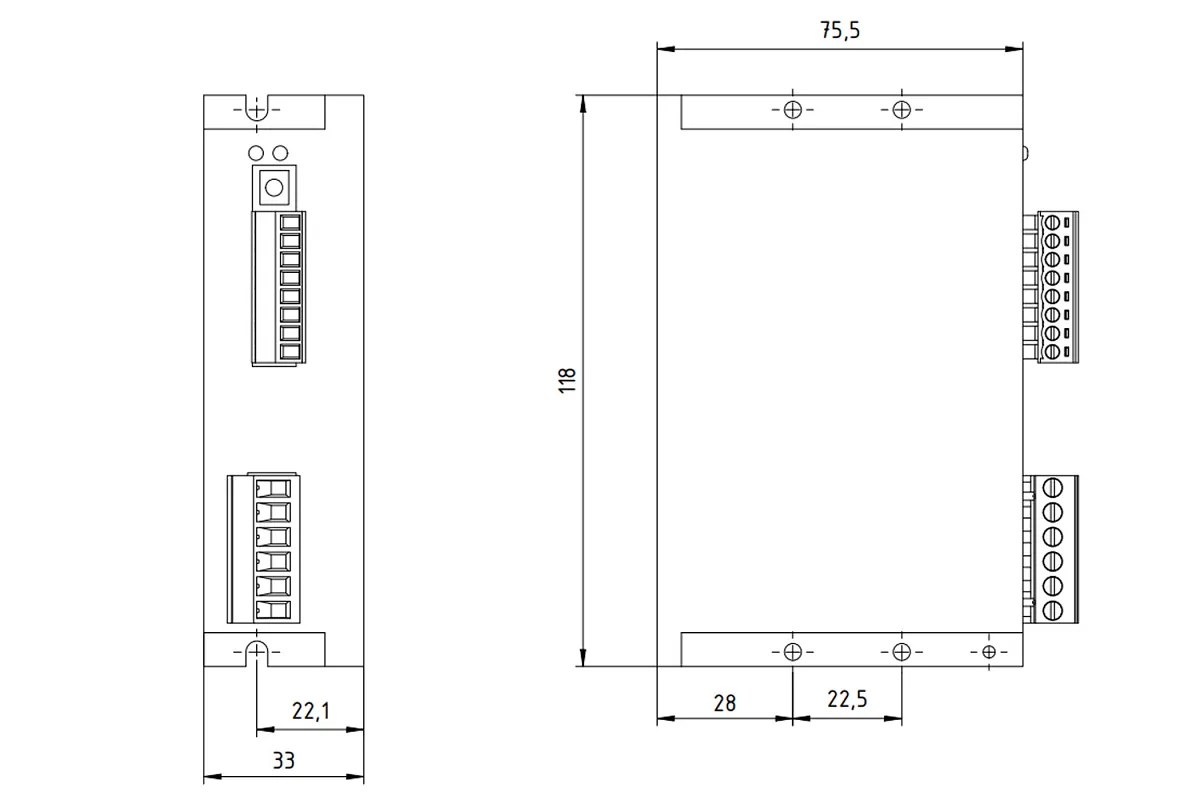

Drawing 01
  • Can control stepper motors with up to 7A continuous current with a supply voltage of up to 48V
  • With pulse mode as standard
  • Additional jog or loop mode selectable
  • Predefined speed applies to jog or loop mode
Part No.
Predefined speed
Operating mode
General properties
Fold
Voltage supply
24V up to 48V, ±2V Unfold Fold
Peak motor current
3A up to 9.8A Unfold Fold
Voltage cycle/direction input
5 up to 24V, -0.5V + 2V Unfold Fold
Input frequency
2Hz up to 1MHz Unfold Fold
Ambient temperature-operation
0°C to +40°C Unfold Fold
D x W x H in mm (incl. connectors and mounting elements)
75.5x33x112 Unfold Fold

Sales Consulting

Estimated shipping in 2 business days

Total Price

¥1077.79
Bulk purchases enjoy unit price discounts
Bracket Price

Quantity (Piece)
Unit PriceWithout Tax
¥953.80 /Piece
Total PriceWithout Tax
¥953.80
Total taxTax Rate13%
+ ¥123.99
Total Price Includes Tax
¥1,077.79
