drylin® D8-(X) stepper motor output stage (NEMA23/24)

Picture 01
Picture 01

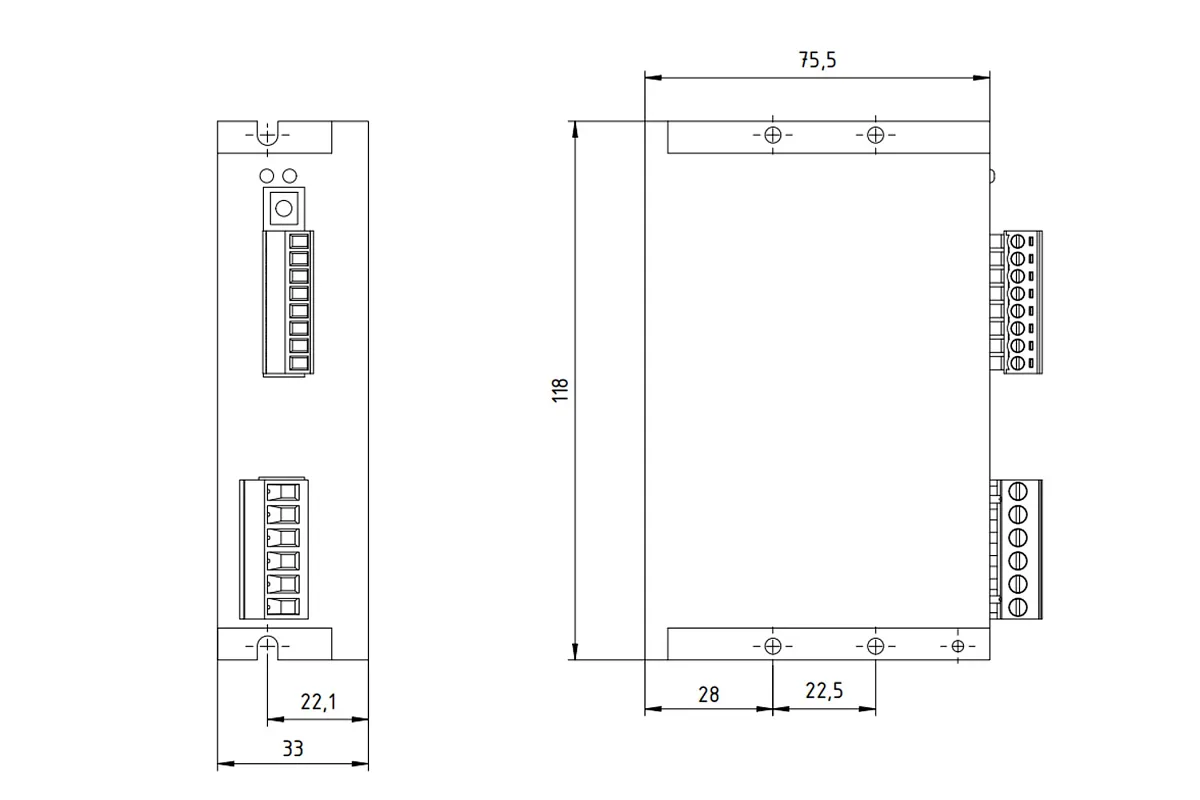

Drawing 01
  • Can control stepper motors with up to 4A continuous current with a supply voltage of up to 48V
  • With pulse mode as standard
  • Additional jog or loop mode available
  • Predefined speed applies to jog or loop mode
Part No.
Predefined speed
Operating mode
General properties
Fold
Voltage supply
24V up to 48V, ±2V Unfold Fold
Peak motor current
1.5A up to 5.5A Unfold Fold
Voltage cycle/direction input
5 up to 24V, -0.5V + 2V Unfold Fold
Input frequency
2Hz up to 1MHz Unfold Fold
Ambient temperature-operation
0°C to +40°C Unfold Fold
D x W x H in mm (incl. connectors and mounting elements)
75.5x33x112 Unfold Fold
Relative humidity
≤ 90 %, non-condensating Unfold Fold
Plug
Fold
Protection class
IP 20 Unfold Fold
