drylin® D7 stepper motor output stage (NEMA11/17) with cycle/direction
- Can control stepper motors with up to 2.7A continuous current at supply voltage of up to 48V
- Pulse mode as standard
- Additional Jog or Loop Mode selectable
- Predefined speed applies to Jog or Loop Mode
Part No.
Predefined speed
Operating mode
General properties
Fold
Voltage supply
24 V up to 48 V, ± 2 V Fold
Peak motor current
0,7 A up to 3 A Fold
Voltage cycle/direction input
5 up to 24 V, -0,5 V + 2 V Fold
Input frequency
2 Hz up to 1 MHz Fold
Ambient temperature-operation
0°C to +40 °C Fold

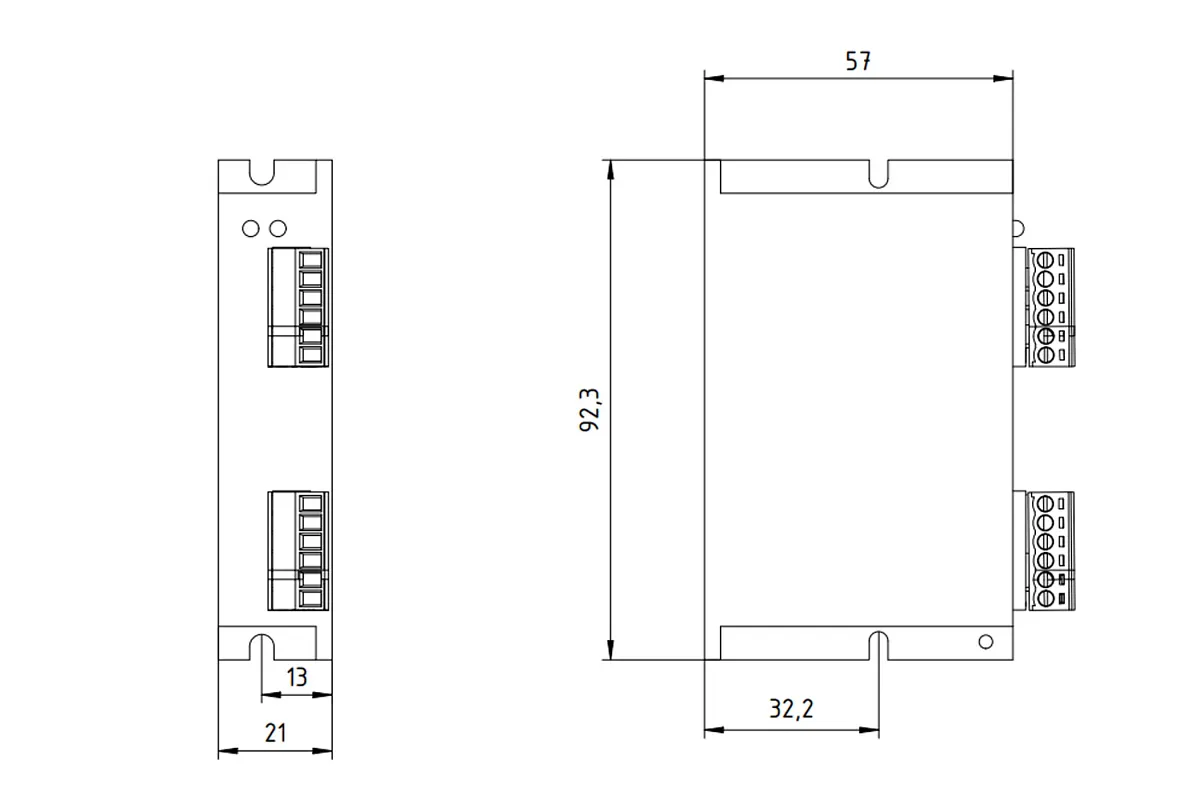

D x W x H in mm (incl. connectors and mounting elements)
57 x 21 x 92 Fold
Relative humidity
≤ 90 %, non-condensing Fold
Plug
Fold
Protection class
IP20 Fold
