xiros® flanged ball bearing 2-hole, FDA-compliant
- Inner Ø: 6, 8, 10, 12, 17, 20mm
- For contact with food
- Bearing material: xirodur® B180
- Ball material: Stainless steel
Part No.
Ø d1 [mm]

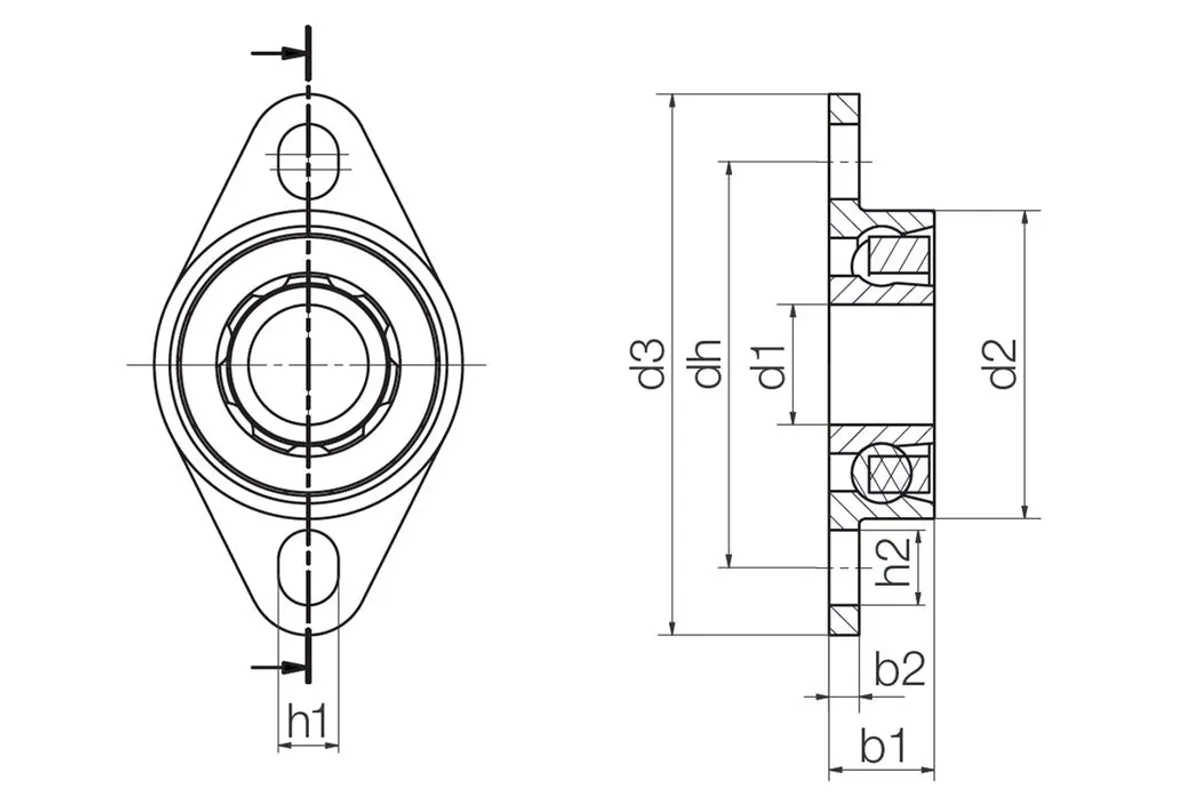

Dimensions
Fold
Ø d1 [mm]
10 Fold
Ø d2 [mm]
26 Fold
Ø d3 (Flange) [mm]
41 Fold
DH [mm]
32 Fold
h1 [mm]
4 Fold
h2 [mm]
5 Fold
b1 [mm]
8 Fold
b2 [mm]
2 Fold
General properties
Fold
Ball material
Stainless steel Fold
Housing material
xirodur B180 Fold
Cage material
xirodur B180 Fold
Rings material
xirodur B180 Fold
Density [g/cm³]
1.42 Fold
Colour
White Fold
Max. moisture absorption [Wt.- %]
0.2 Fold
Max. total moisture absorption [Wt.- %]
0.7 Fold
Drill holes
Mechanical properties
Fold
Static load capacity [N]
110 Fold
Dynamic load capacity [N]
130 Fold
Modulus of elasticity [MPa]
2500 Fold
Flexural strength (at 20°C/68°F) [MPa]
68 Fold
Shore D hardness
77 Fold
Specific volume resistance
> 1014 Ωcm, testing method DIN IEC 93
Surface resistance
> 1014 Ω, testing method DIN 53482
Requirements
Fold
Cover plate at one end
Cover plate at both ends
Flange at one end
Flange on both sides
Chemical resistance
Fold
Alcohol
+ resistant Fold
Greases, oils without additives
+ resistant Fold
Hydrocarbons
+ resistant Fold
Fuels
+ resistant Fold
Diluted alkalis
+ resistant Fold
Strong alkalis
+ to 0 resistant to conditionally resistant Fold
Diluted acids
0 to – conditionally to non-resistant Fold
Strong acids
– non-resistant Fold
