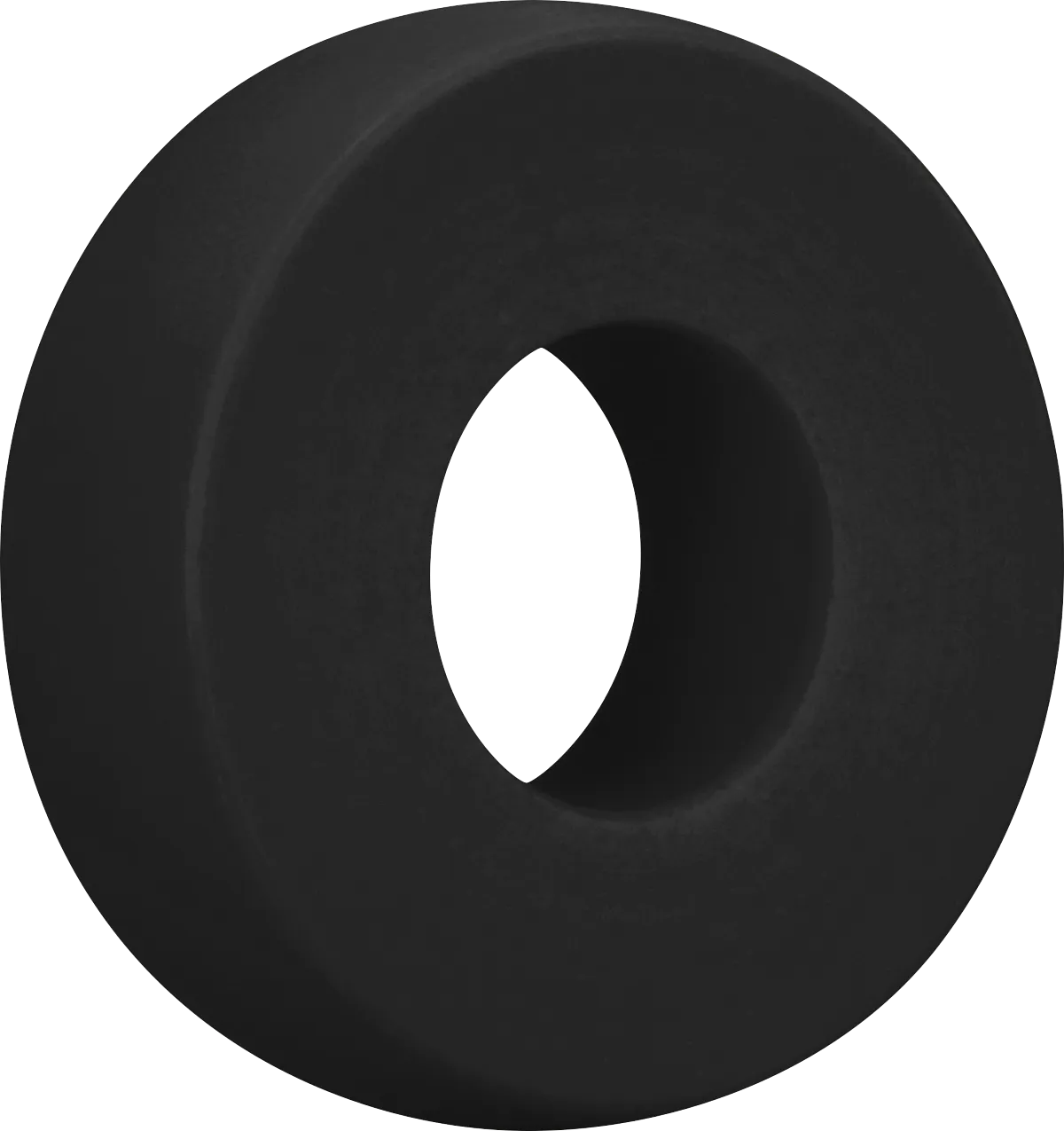

X bearing insert, turned, for high temperatures
- Material: iglidur X
- In accordance with DIN 626-1
- Very high chemical resistance
- High compressive strength
- Very low moisture absorption
- High wear resistance
- Electrically conductive
- Temperature-resistant from -100 °C to +250 °C (up to +315 °C short-term)
Part No.
Shaft diameter [mm]
B [mm]

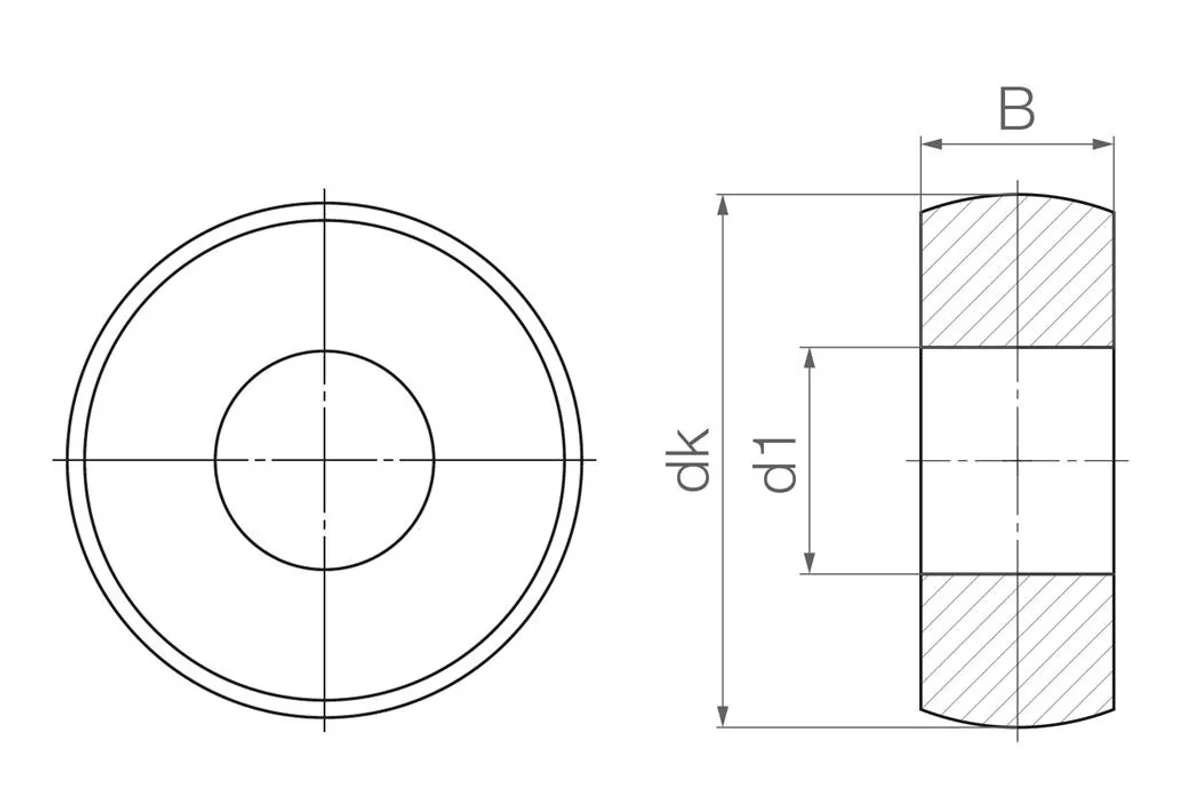

Dimensions
Fold
Shaft diameter [mm]
20 Fold
Ø dk [mm]
47 Fold
B [mm]
17 Fold
General properties
Fold
Dimensional series
Based on DIN 626-1 Fold
Spherical ball material
iglidur® X Fold
Mechanical properties
Fold
Max. axial static load, short-term [N]
13000 Fold
Max. axial static load, long-term [N]
6500 Fold
Max. radial static pressure load, short-term [N]
20000 Fold
Max. radial static pressure load, long-term [N]
10000 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
250 Fold
Lower application temperature [°C]
-100 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
