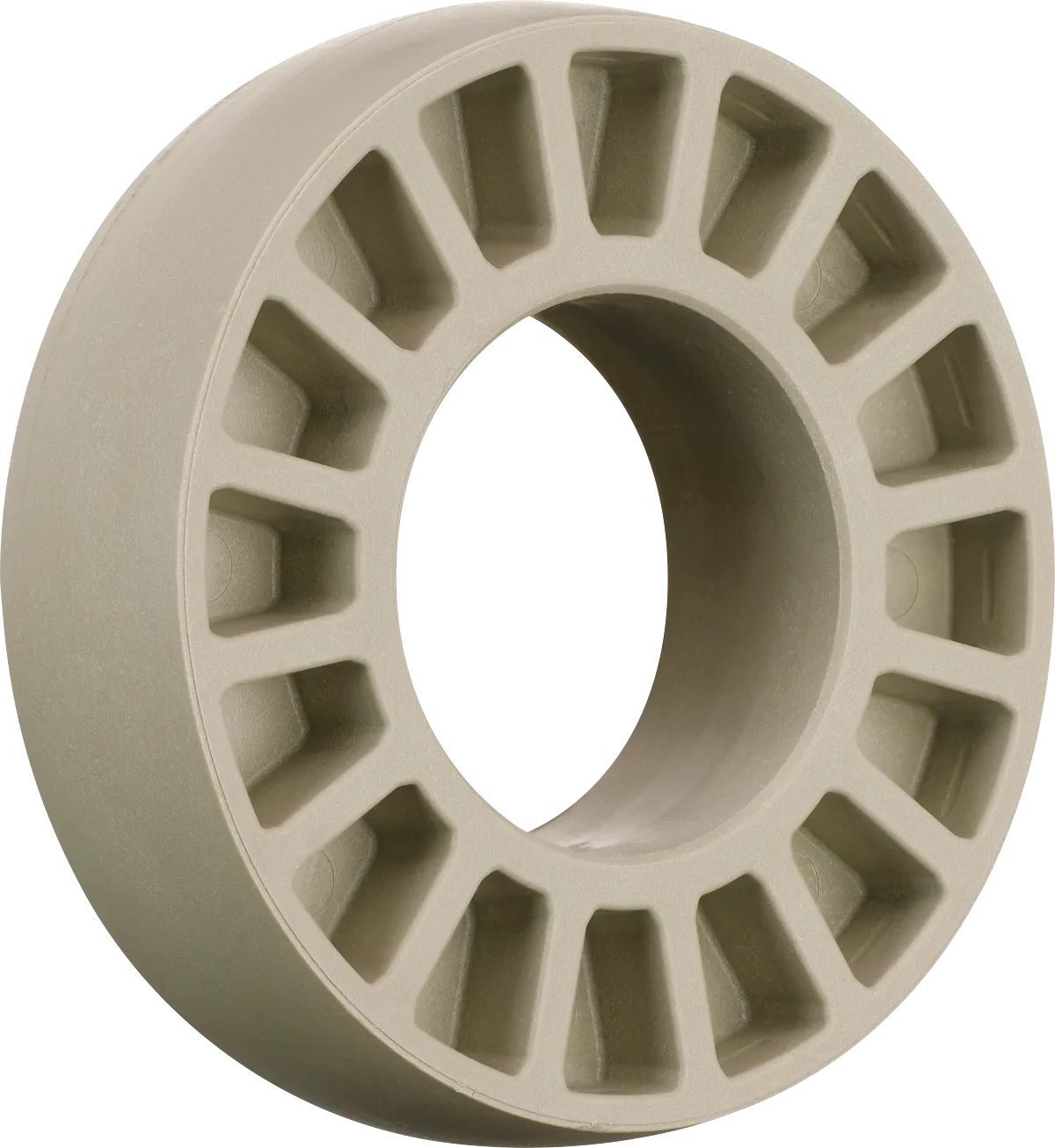

J4 bearing insert, injection-molded, low-cost material
- Material: iglidur J4
- In accordance with DIN 626-1
- Low friction values
- Low moisture absorption
- Vibration damping
- High chemical resistance
- Low-cost material for large series
Part No.
Shaft diameter [mm]
B [mm]
Dimensions
Fold
Shaft diameter [mm]
15 Fold
Ø dk [mm]
40 Fold
B [mm]
12 Fold
General properties
Fold
Dimensional series
Based on DIN 626-1 Fold
Spherical ball material
iglidur® J4 Fold
Mechanical properties
Fold
Max. axial static load, short-term [N]
3000 Fold
Max. axial static load, long-term [N]
1500 Fold
Max. radial static pressure load, short-term [N]
7500 Fold
Max. radial static pressure load, long-term [N]
3750 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
90 Fold
Lower application temperature [°C]
-50 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
