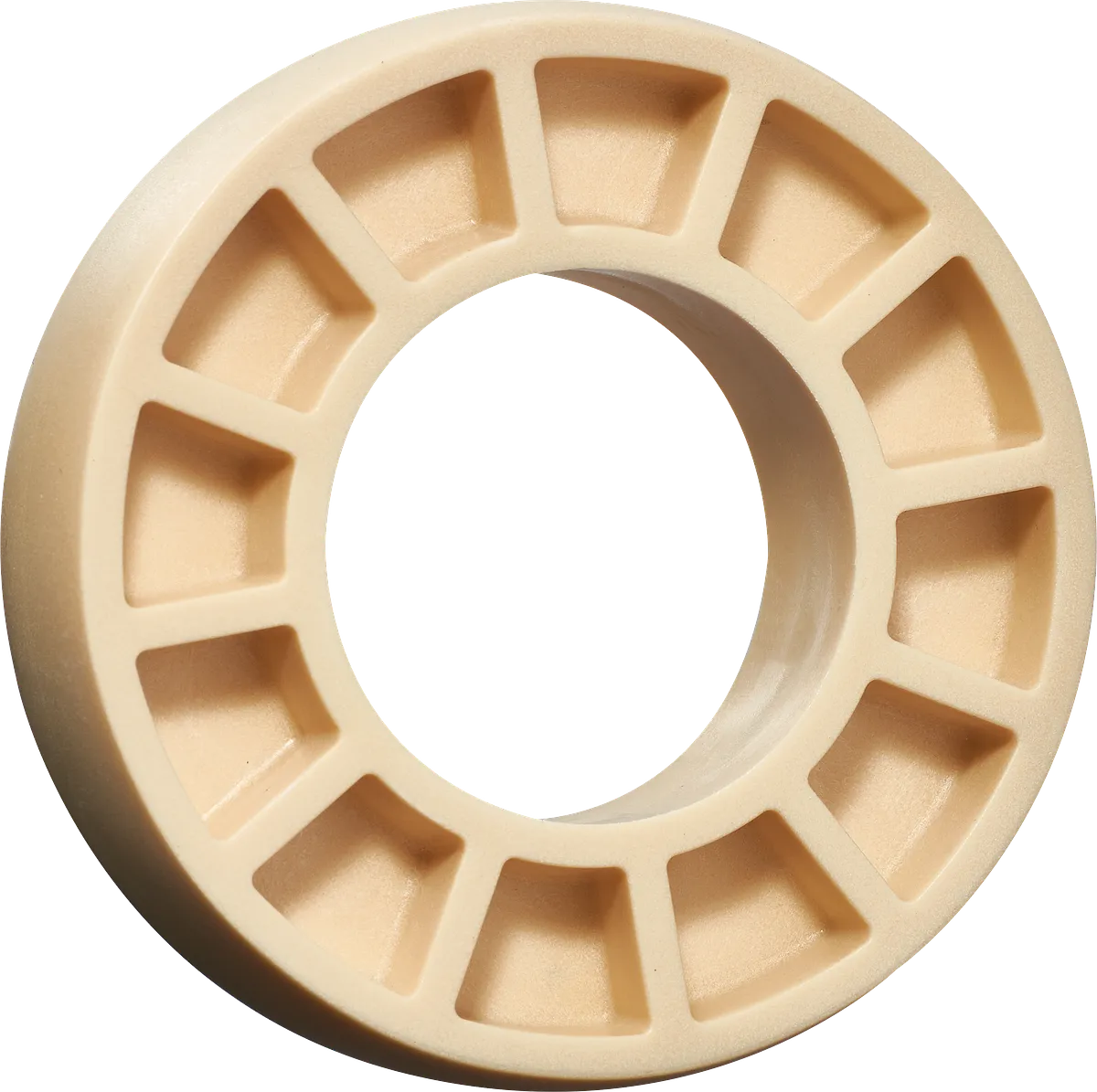

J3 bearing insert, injection-molded, high wear resistance
- Material: iglidur J3
- In accordance with DIN 626-1
- Very high wear resistance
- Low friction values
- Low moisture absorption
- Vibration damping
- High chemical resistance
- Good wear resistance under water
Part No.
Shaft diameter [mm]
B [mm]

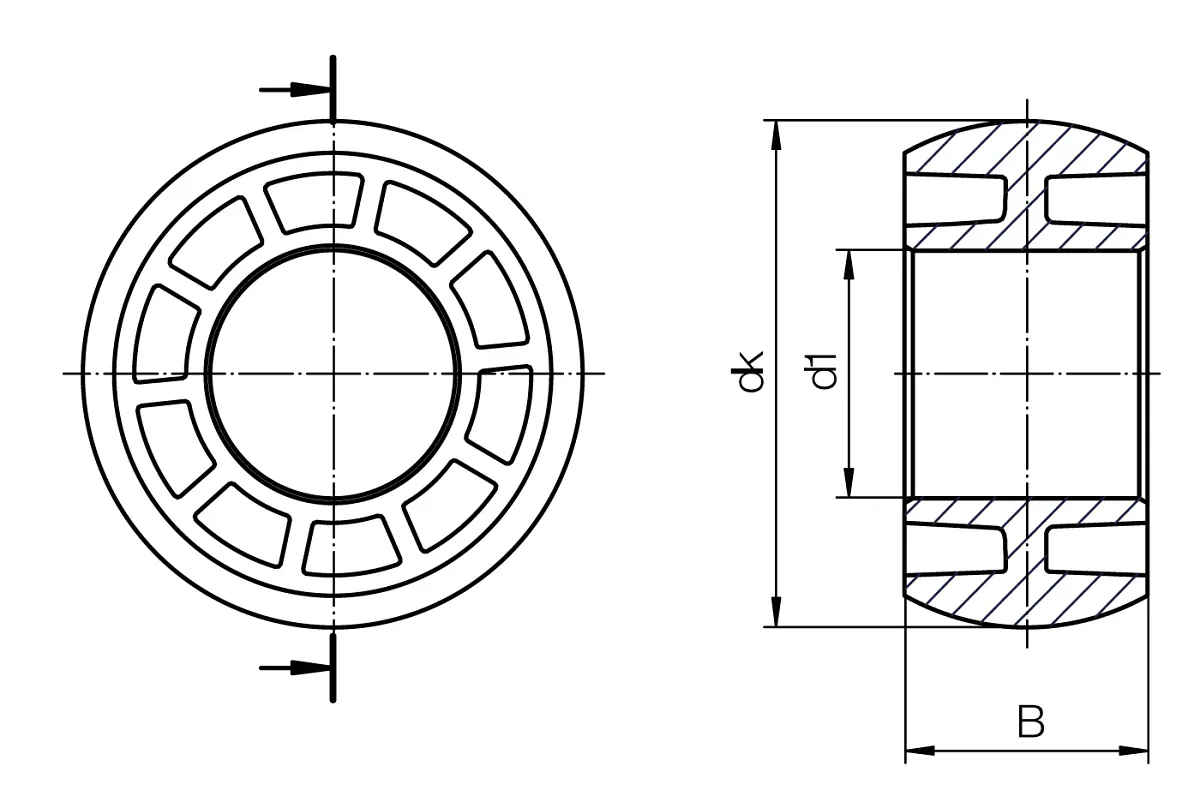

Dimensions
Fold
Shaft diameter [mm]
30 Fold
Ø dk [mm]
80 Fold
B [mm]
21 Fold
General properties
Fold
Dimensional series
Based on DIN 626-1 Fold
Spherical ball material
iglidur® J3 Fold
Mechanical properties
Fold
Max. axial static load, short-term [N]
6000 Fold
Max. axial static load, long-term [N]
3000 Fold
Max. radial static pressure load, short-term [N]
16500 Fold
Max. radial static pressure load, long-term [N]
8750 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
90 Fold
Lower application temperature [°C]
-50 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
