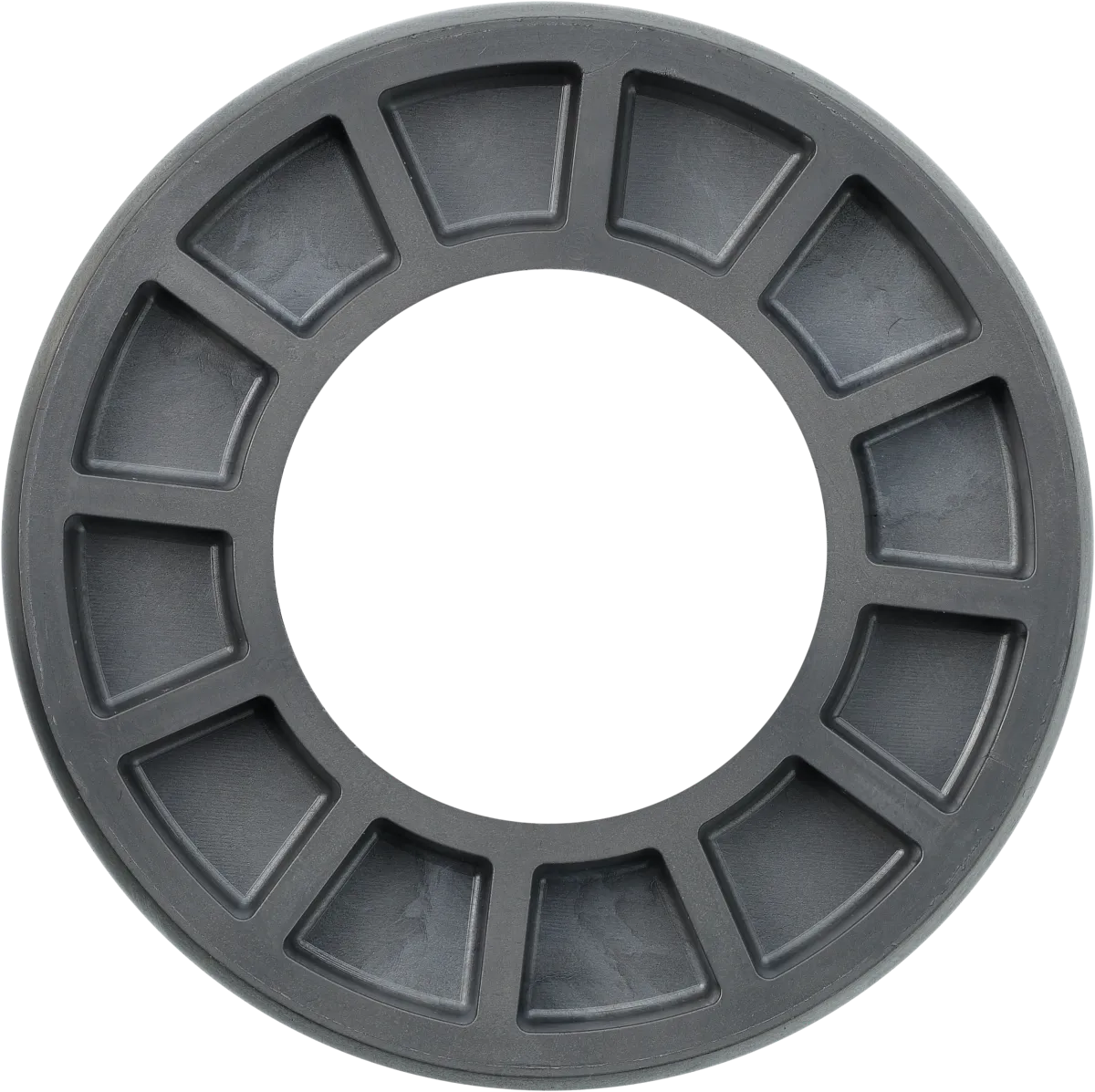

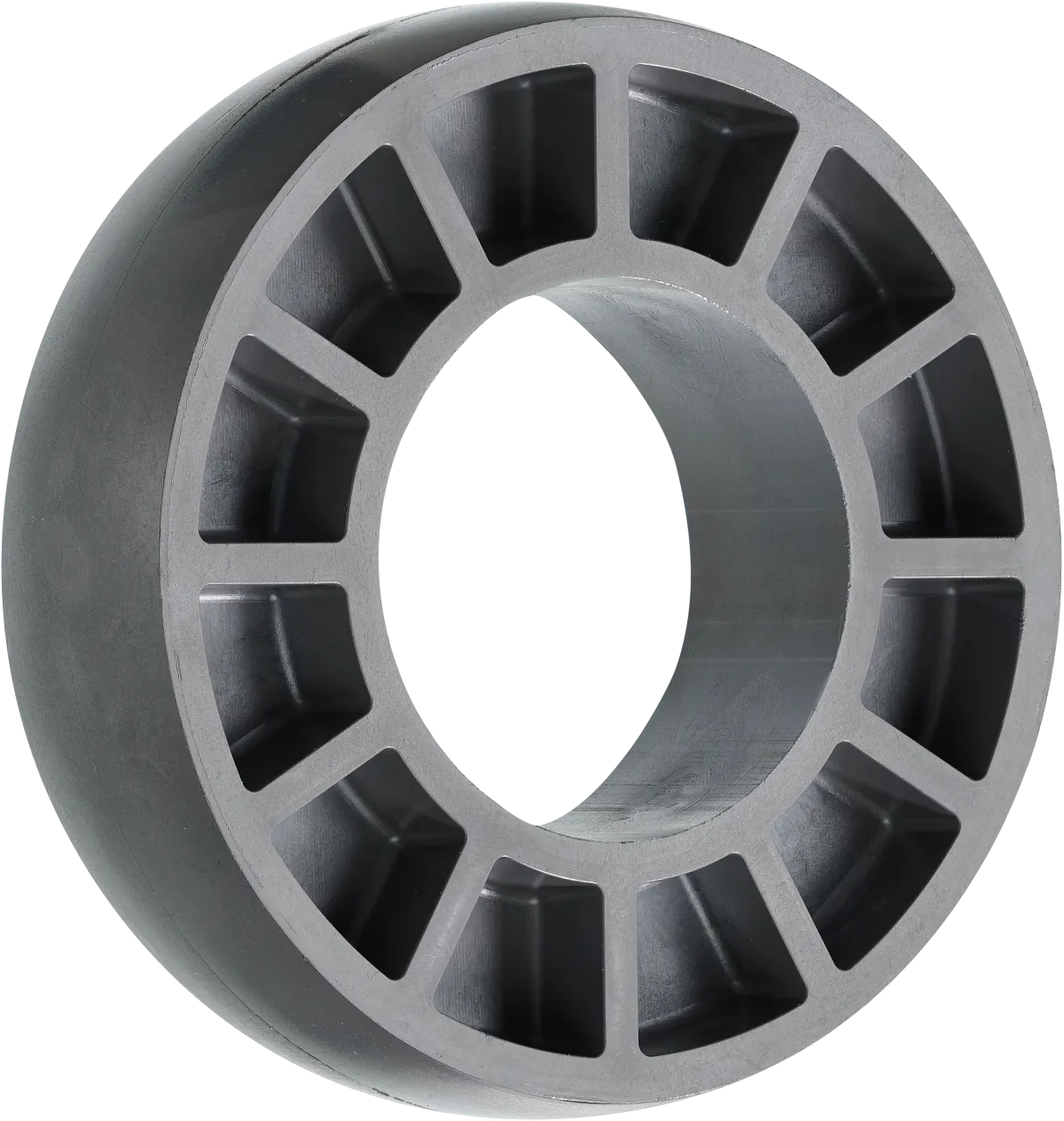

H3 bearing insert, injection-molded, for higher speeds
- Material: iglidur H3
- In accordance with DIN 626-1
- Very high wear resistance
- Excellent friction values even at high temperatures
- Low moisture absorption
- Vibration damping
- High chemical resistance
- Resistant to aggressive media
Part No.
Shaft diameter [mm]
B [mm]
Dimensions
Fold
Shaft diameter [mm]
20 Fold
Ø dk [mm]
47 Fold
B [mm]
17 Fold
Production and installation tolerances
Fold
Installation tolerance d1
E10 Fold
General properties
Fold
Dimensional series
Based on DIN 626-1 Fold
Spherical ball material
iglidur® H3 Fold
Mechanical properties
Fold
Max. axial static load, short-term [N]
6000 Fold
Max. axial static load, long-term [N]
3000 Fold
Max. radial static pressure load, short-term [N]
8000 Fold
Max. radial static pressure load, long-term [N]
4000 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
200 Fold
Lower application temperature [°C]
-40 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
