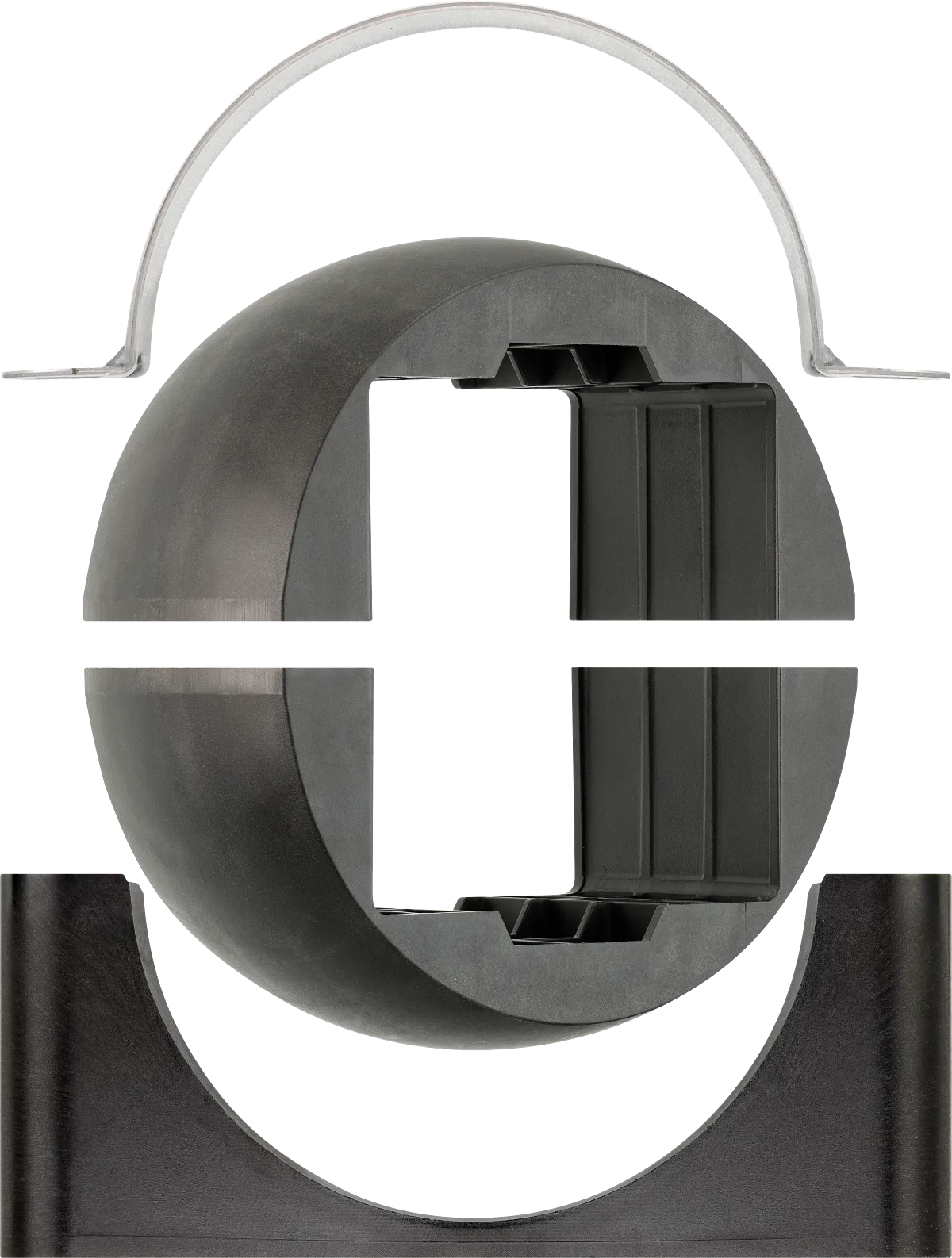

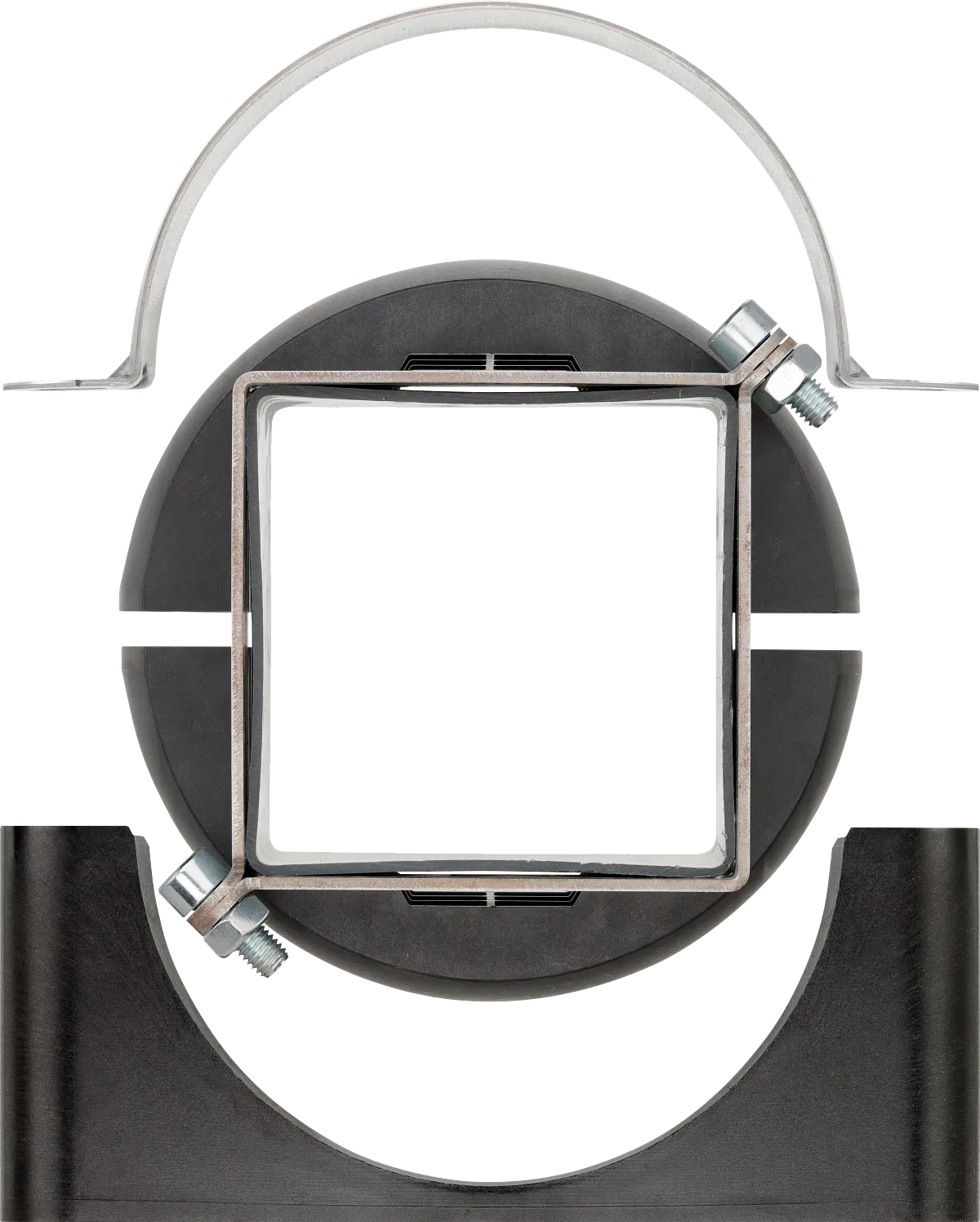

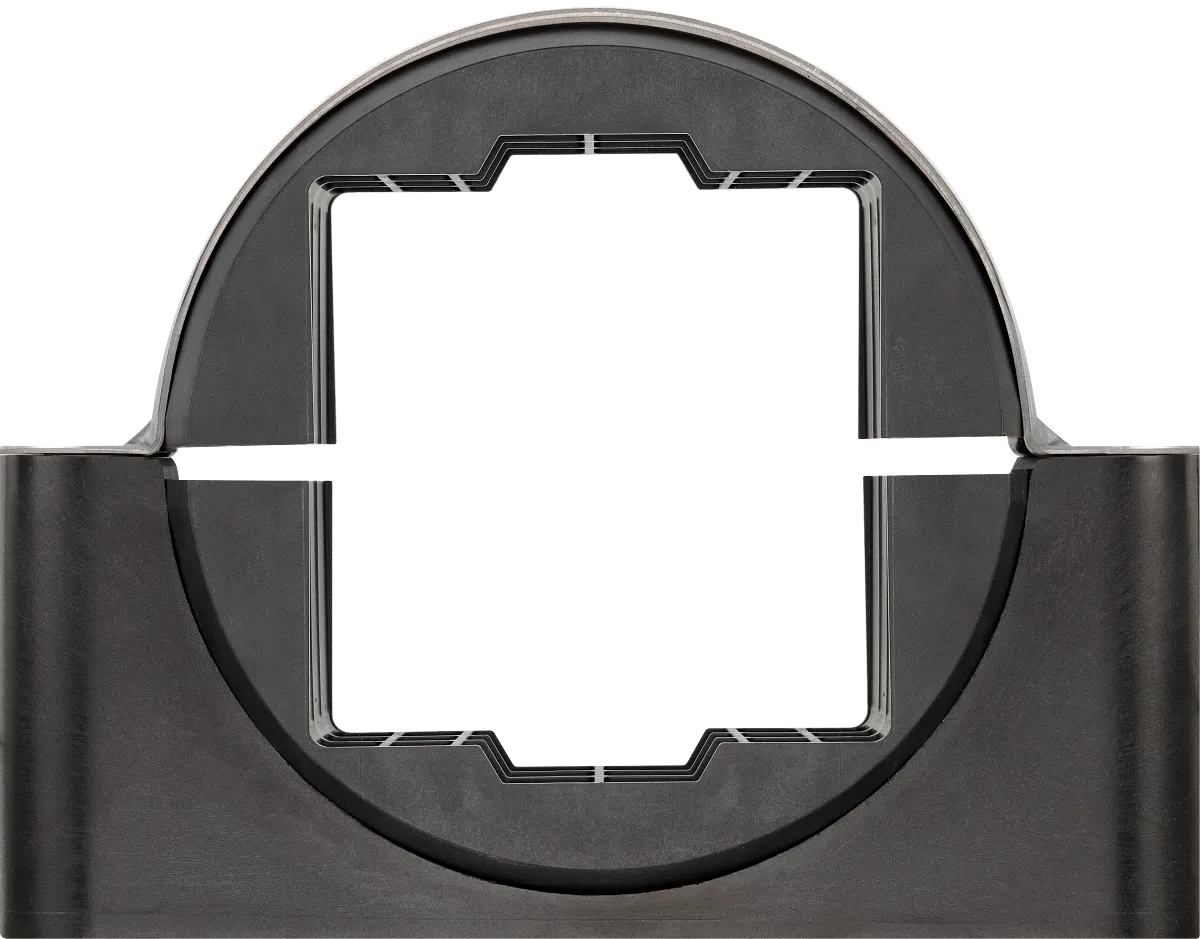

Split pillow block bearing for square profiles, igubal® ESQM 2.0
- For 100x100, 120x120 and 150x150 mm square profiles
- Split housing made of solarmid G and galvanised sheet metal bracket
- Split bearing insert made of iglidur P UV
- Bearing insert with recesses for cable routing
- Low overall height
- High UV resistance
- Zero lubrication and maintenance
Part No.
q [mm]
Dimensions
Fold
h [mm]
173 Fold
m [mm]
205 Fold
a [mm]
240 Fold
h1 [mm]
89 Fold
h3 [mm]
2 Fold
C1 [mm]
50 Fold
B [mm]
75 Fold
b2 [mm]
40 Fold
d2
17.5 Fold
q [mm]
100.5 Fold
General properties
Fold
Spherical ball material
iglidur P UV Fold
Dimensional series
E, according to DIN ISO 12240 Fold
Max. pivot angle (α) [°]
14 Fold
Mechanical properties
Fold
Max. pivot angle (α) [°]
14 Fold
