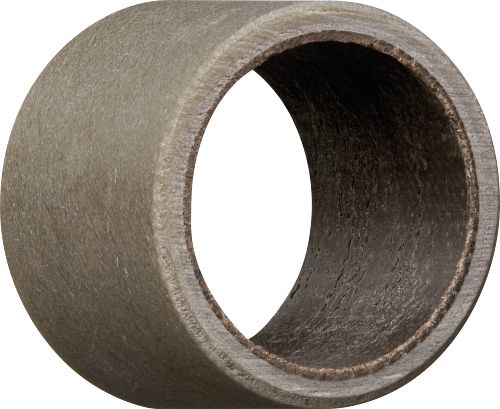

igutex® TX1, sleeve bearing, mm - TX1SM
The heavy duty bearing up to 200MPa
- Up to 200MPa static and 140MPa dynamic
- Wear-resistant and dimensionally stable
- Good media-resistance
Part No.
Shaft diameter [mm]
Ø d2 [mm]
b1 [mm]
Dimensions
Fold
Shaft diameter [mm]
20 Fold
Ø d2 [mm]
24 Fold
b1 [mm]
15 Fold
Length of bevel (f1) [mm]
0.5 Fold
Length of bevel (f4) [mm]
0.5 Fold
Bevel angle (f1) [°]
15 Fold
Bevel angle (f4) [°]
15 Fold
Production and installation tolerances
Fold
after press-fit d1 max. [mm]
20.15 Fold
after press-fit d1 min. [mm]
20.02 Fold
b1 tolerance
±0,25 mm Fold
Tolerance of shaft
h9 Fold
General properties
Fold
Coefficient of friction, dynamic, against steel
0,03 - 0,1 µ Fold
Mechanical properties
Fold
Maximum surface speed, linear, short-term [m/s]
2 Fold
Maximum surface speed, linear, continuous [m/s]
1 Fold
Maximum surface speed, oscillating, continuous [m/s]
0.2 Fold
Maximum surface speed, rotating, short-term [m/s]
0.9 Fold
Maximum surface speed, rotating, continuous [m/s]
0.4 Fold
Maximum surface speed, oscillating, short-term [m/s]
0.5 Fold
Max. recommended surface pressure [MPa]
200 Fold
Requirements
Fold
RoHS 2 compliant according to EU guideline 2011/65/EU
Detectable
Mould-free according to DIN EN ISO 846 Procedure A
Physical And Thermal Properties
Fold
Compressive strength [MPa]
220 Fold
Lower application temperature [°C]
-60 Fold
Max. short-term application temperature [°C]
170 Fold
Max. long-term application temperature [°C]
120 Fold
